ESAB Aristo Mig 4004i Pulse WeldCloud User Manual

4 INSTALLATION
0463 331 101
- 11 -
© ESAB AB 2016

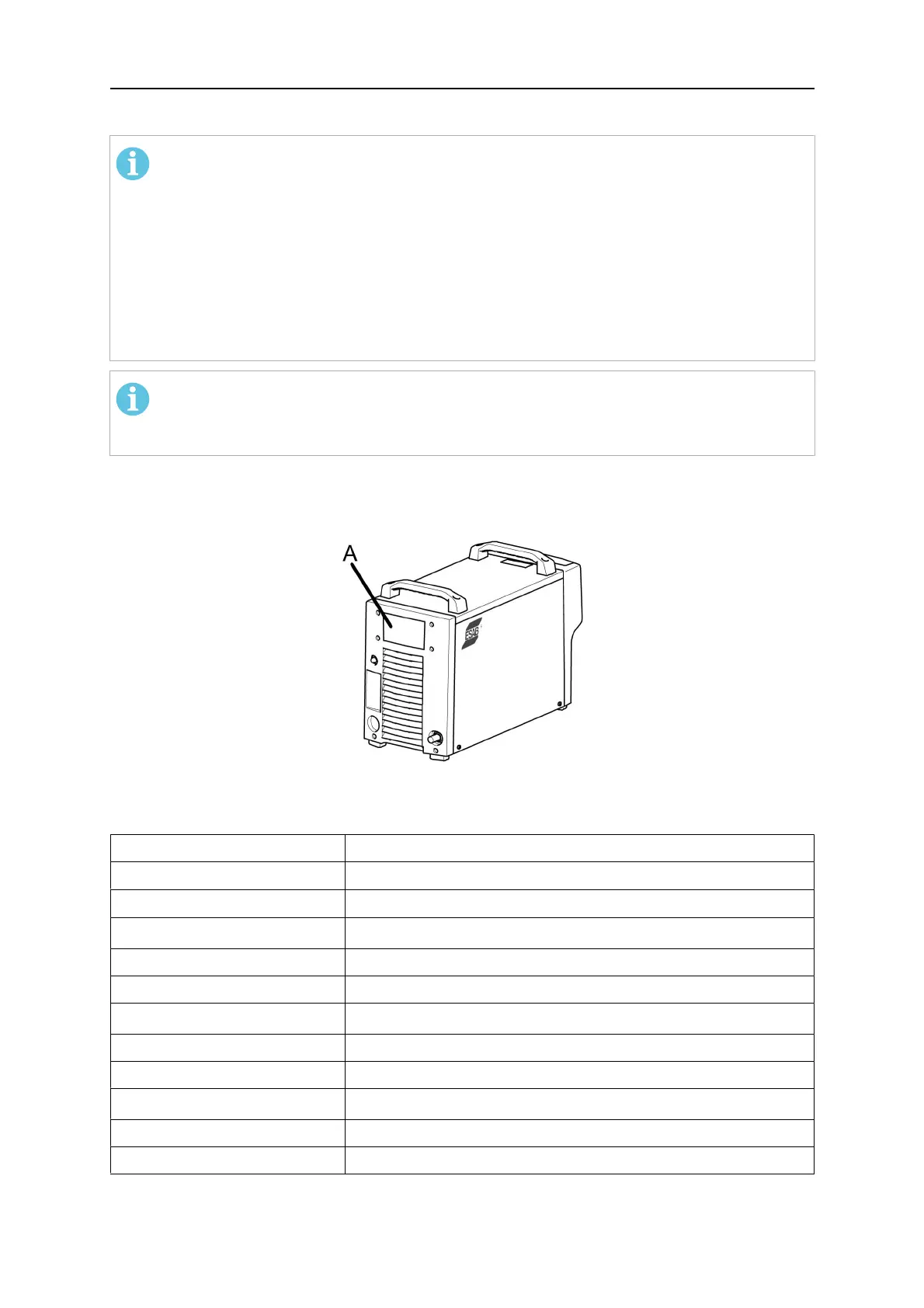

4.3 Mains supply
NOTE!
Mains supply requirements
This equipment complies with IEC 61000-3-12 provided that the short-circuit
power is greater than or equal to S
scmin
at the interface point between the user's
supply and the public system. It is the responsibility of the installer or user of the
equipment to ensure, by consultation with the distribution network operator if
necessary, that the equipment is connected only to a supply with a short-circuit
power greater than or equal to S
scmin
. Refer to the technical data in the
TECHNICAL DATA chapter.
NOTE!
The power source can be powered from a generator. For more information,
contact authorised ESAB service personnel.
Check that the unit is connected to the correct mains power supply voltage, and that it is
protected by the correct fuse size. A protective earth connection must be made, in
accordance with regulations.
A. Rating plate with supply connection data
Recommended fuse sizes and minimum cable areas
Mig 4004i Pulse / Mig 4004i Pulse WeldCloud™
Mains voltage 380-440V, +/- 10%, 3~50/60 Hz
Mains cable area
4G4 mm
2
Phase current I
eff
Uin 380V 22 A
Fuse anti-surge 25 A
Fuse TypeCMCB-surge 32 A
Phase current I
eff
Uin 400V 18 A
Fuse anti-surge 20 A
Fuse TypeCMCB-surge 32 A
Phase current I
eff
Uin 440V 18 A
Fuse anti-surge 20 A
Fuse TypeCMCB-surge 32 A

ESAB Aristo Mig 4004i Pulse WeldCloud Specifications

General

Brand	ESAB
Model	Aristo Mig 4004i Pulse WeldCloud
Category	Welding System
Language	English
