ESAB AristoMig 4004i Pulse User Manual

4 INSTALLATION
0463 431 001
- 11 -
© ESAB AB 2016
NOTE!
The power source can be powered from a generator. For more information,
contact authorised ESAB service personnel.
Check that the unit is connected to the correct mains power supply voltage, and that it is
protected by the correct fuse size. A protective earth connection must be made, in
accordance with regulations.

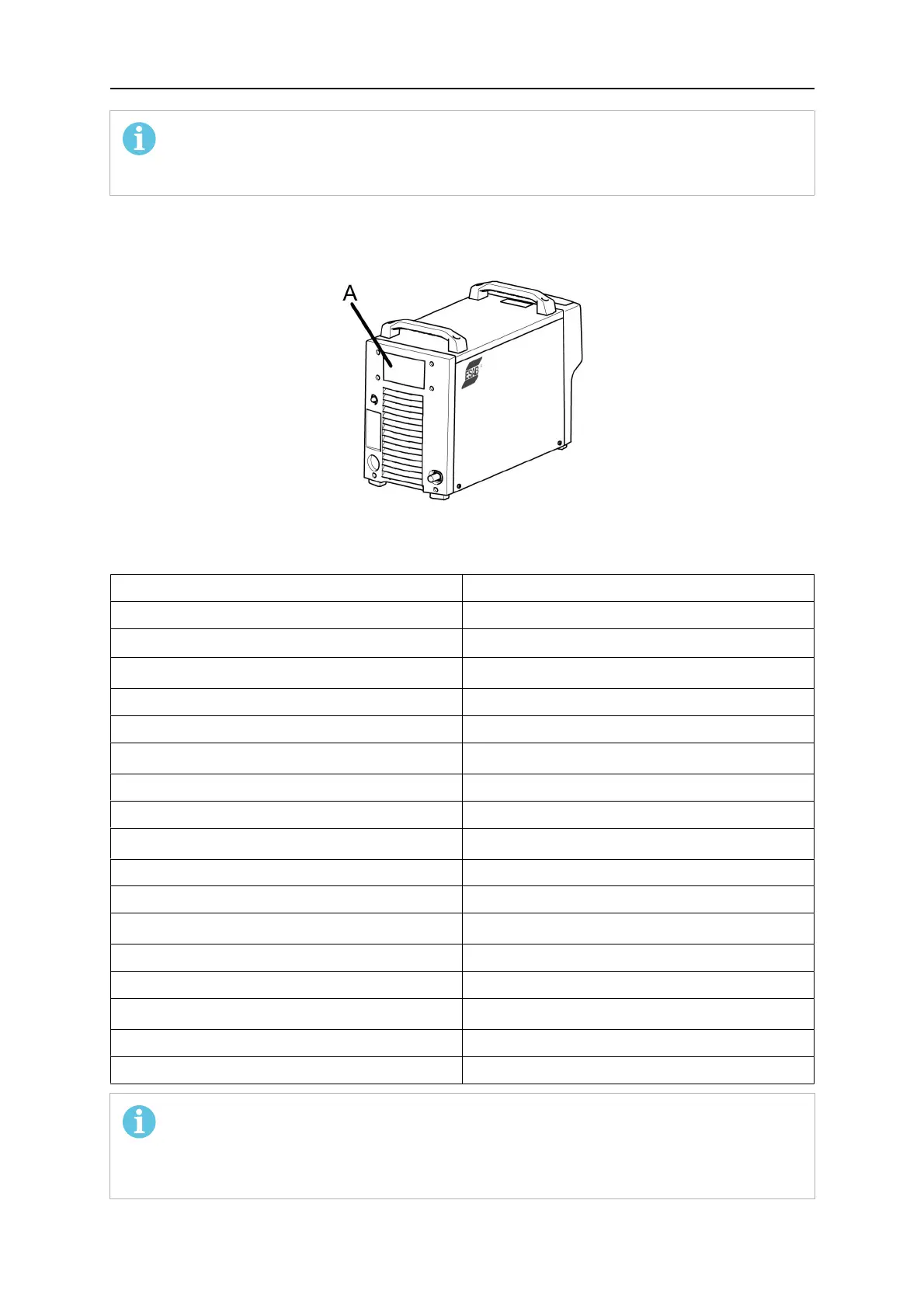

A. Rating plate with supply connection data
Recommended fuse sizes and minimum cable areas
Mig 4004i Pulse
Mains voltage 380-460 V, +/- 10%, 3~50/60 Hz
Mains cable area
4C 10Awg (4G4 mm
2
)
Phase current I
eff
Uin 380 V 20 A
Fuse anti-surge 20 A
Fuse CMCB-surge 25 A
Phase current I
eff
Uin 400 V 19.2 A
Fuse anti-surge 20 A
Fuse CMCB-surge 25 A
Phase current I
eff
Uin 415 V 18 A
Fuse anti-surge 20 A
Fuse CMCB-surge 20 A
Phase current I
eff
Uin 440 V 17.6 A
Fuse anti-surge 20 A
Fuse CMCB-surge 20 A
Phase current I
eff
Uin 460 V 17 A
Fuse anti-surge 20 A
 Fuse CMCB-surge 20 A
NOTE!
The mains cable areas and fuse sizes as shown above are in accordance with
Swedish regulations. Use the power source in accordance with the relevant
national regulations.
