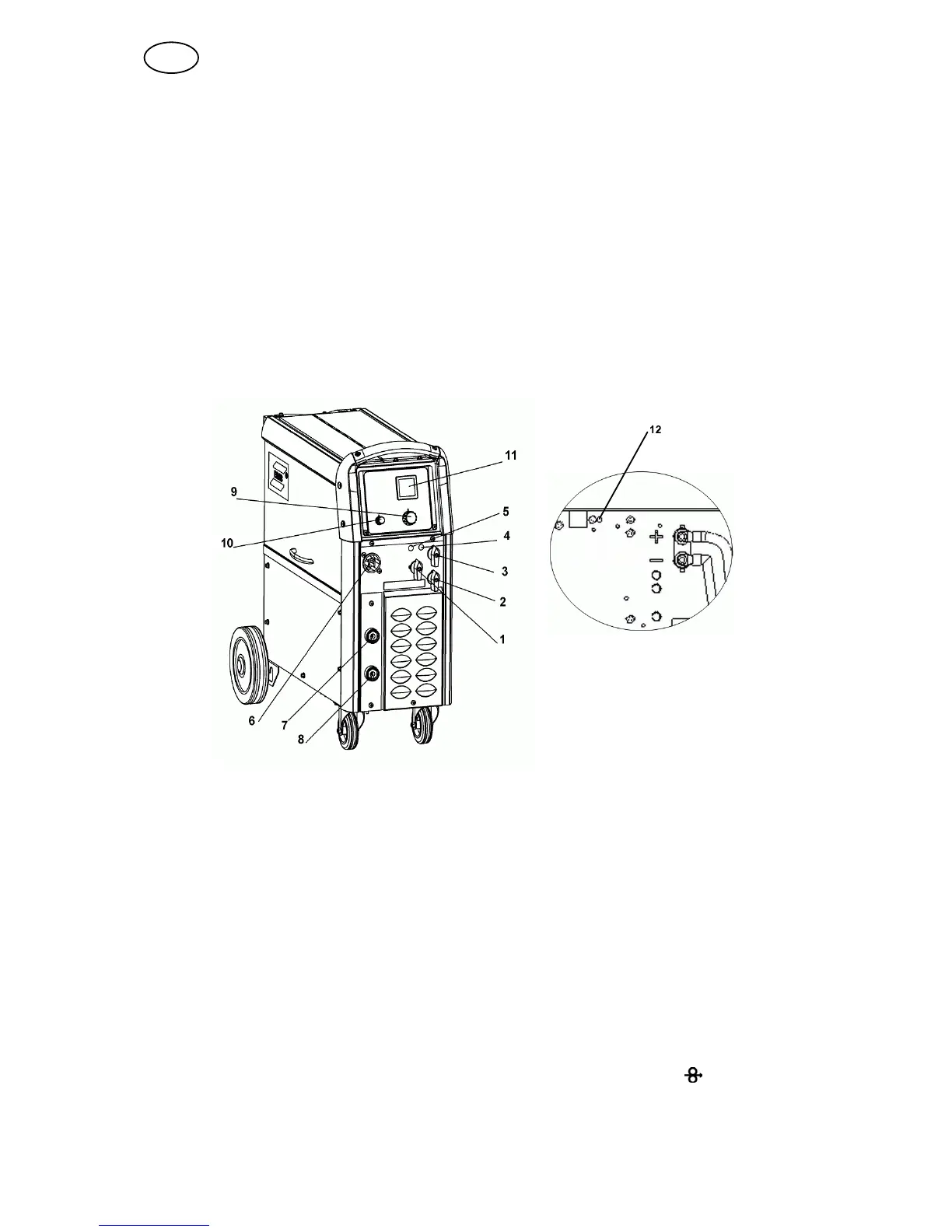

6.1 Connection and control devices
ESABMig C240
1 Mains supply switch 7 Connection for return cable (−), high induc-
tance
2 Switch, coarse control 8 Connection for return cable (−), low induc-
tance
3 Switch, precise control 9 Knob for wire speed setting
4 Indicating lamp, power supply ON 10 Knob for spot welding − ON/OFF and time
setting
5 Orange indicating lamp, overheating 11 Digital instrument − V / A
(option,see page 19)
6 EURO − connector (for welding gun) 12 Knob for burn−back time setting
ESABMig C240s
1 Mains supply switch 11 Digital display for welding parameters
2 Switch, coarse control 12 Switch for display selection − Volt. or Amp
3 Switch, precise control 13 Switch for display selection − m/min or mm
4 Indicating lamp, power supply ON 14 Lamp indicating status of synergy control
5 Orange indicating lamp, overheating 15 Lamps indicating recommended (−) current
output − max/min inductance
6 EURO − connector (for welding gun) 16 Switch for ”Synergy”− ON/OFF and ma-
terial/gas selection
7 Connection for return cable (−), high induc-
tance
17 Knob for selection of the wire diameter
8 Connection for return cable (−), low induc-
tance
18 Knob for burn−back time setting
9 Knob for wire speed setting / correction 19
Mode selector 2−stroke / / 4−stroke
10 Knob for spot welding − ON/OFF and time
setting
