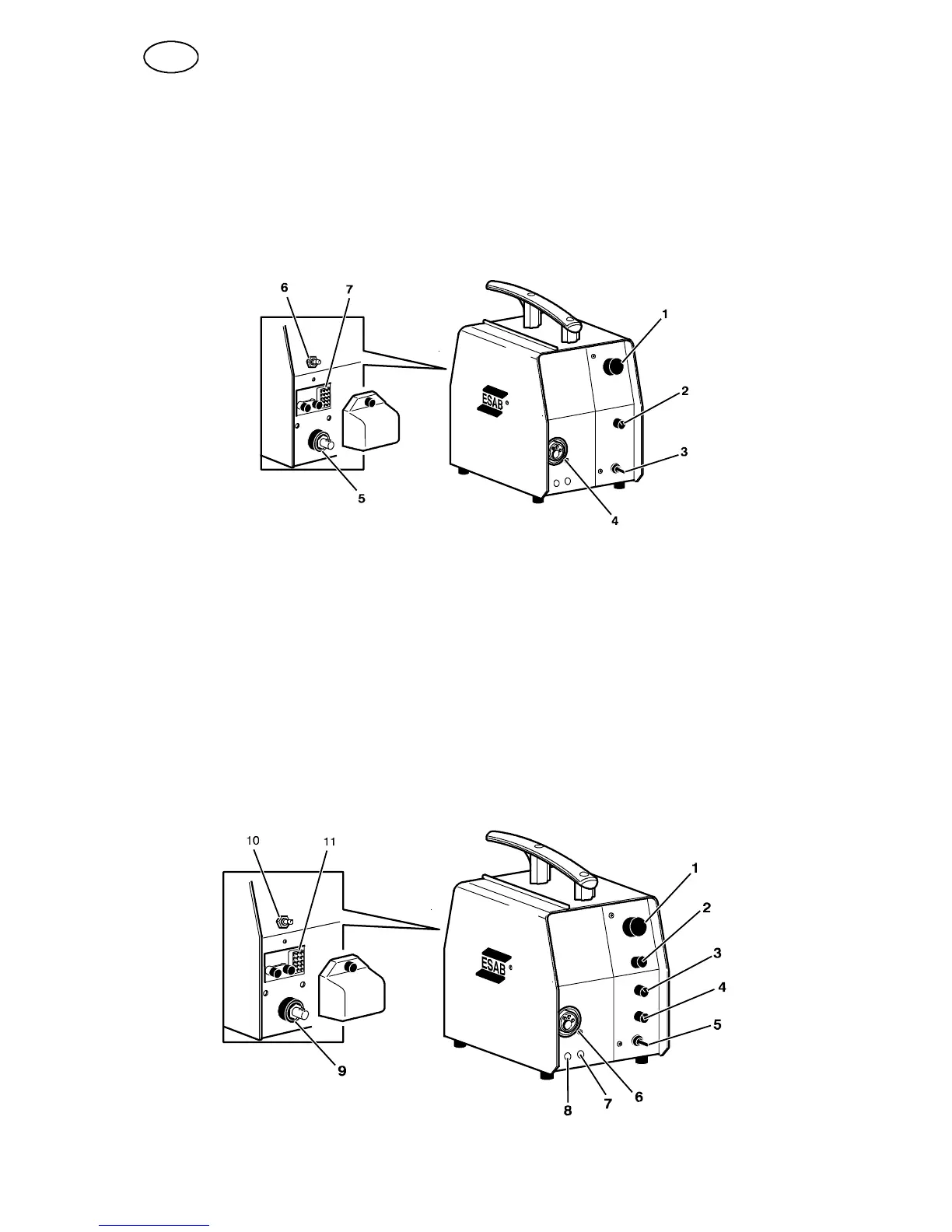

Feed L302
1 Knob for setting wire feed speed 4 Connection for welding gun
2 Knob for setting burnback time 5 Connection for welding current from power
source, (OKC)
3 Switch for 2-stroke / 4-stroke 6 Connection for shielding gas
7 Connection for control cable from power
source
Feed L304
1 Knob for setting wire feed
speed
7 Connection RED for cooling water from
welding gun
2 Switch for activation of 2/4 stroke, spot
welding, cold wire feed or gas purging
8 Connection BLUE, for cooling water to
welding gun
3 Knob for setting spot welding time 9 Connection for welding current from power
source, (OKC)
4 Knob for setting burnback time 10 Connection for shielding gas
5 Switch for creep start OFF / ON 11 Connection for control cable from power
source
6 Connection for welding gun
NOTE! Cooling water connections only available on certain models.
