GAS METAL ARC WELDING -- MIG/MAG

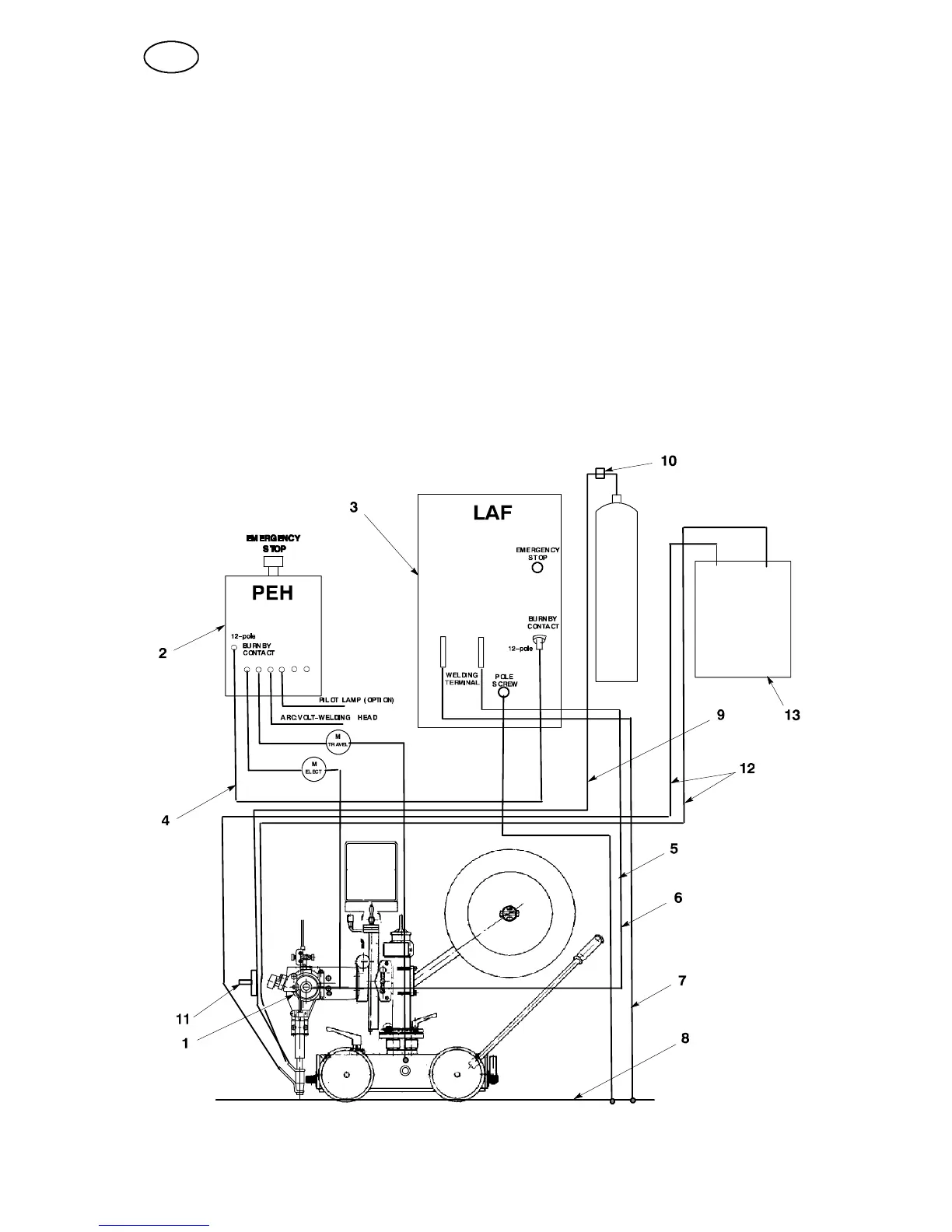

S Connect control cable (4) between power source (3) and control box A2 --A6
Process Controller (PEH) (2).
S Connect return cable ( 7) between power source (3) and workpiece (8).
S Connect welding cable (6) between power source (3) and welding m achine
(1).
S Connect gas hose (9) between reducing valve (10) and gas valve (11) on the
welding machine.
S Connect the cooling water hoses (12) between cooling unit (13) and welding
machine (1).
S Connect measuring cable (5) between power source (3) and workpiece (8).
--
+
