ESAB LAE1000 - Installation: Electrical Connections

-- 2 2 --
dia3d1ea
4.4 Connections
1. The connection of the control box to the automatic welding machine is to be
done according to
the A2--A6 Process Controller (PEH) instruction manual.

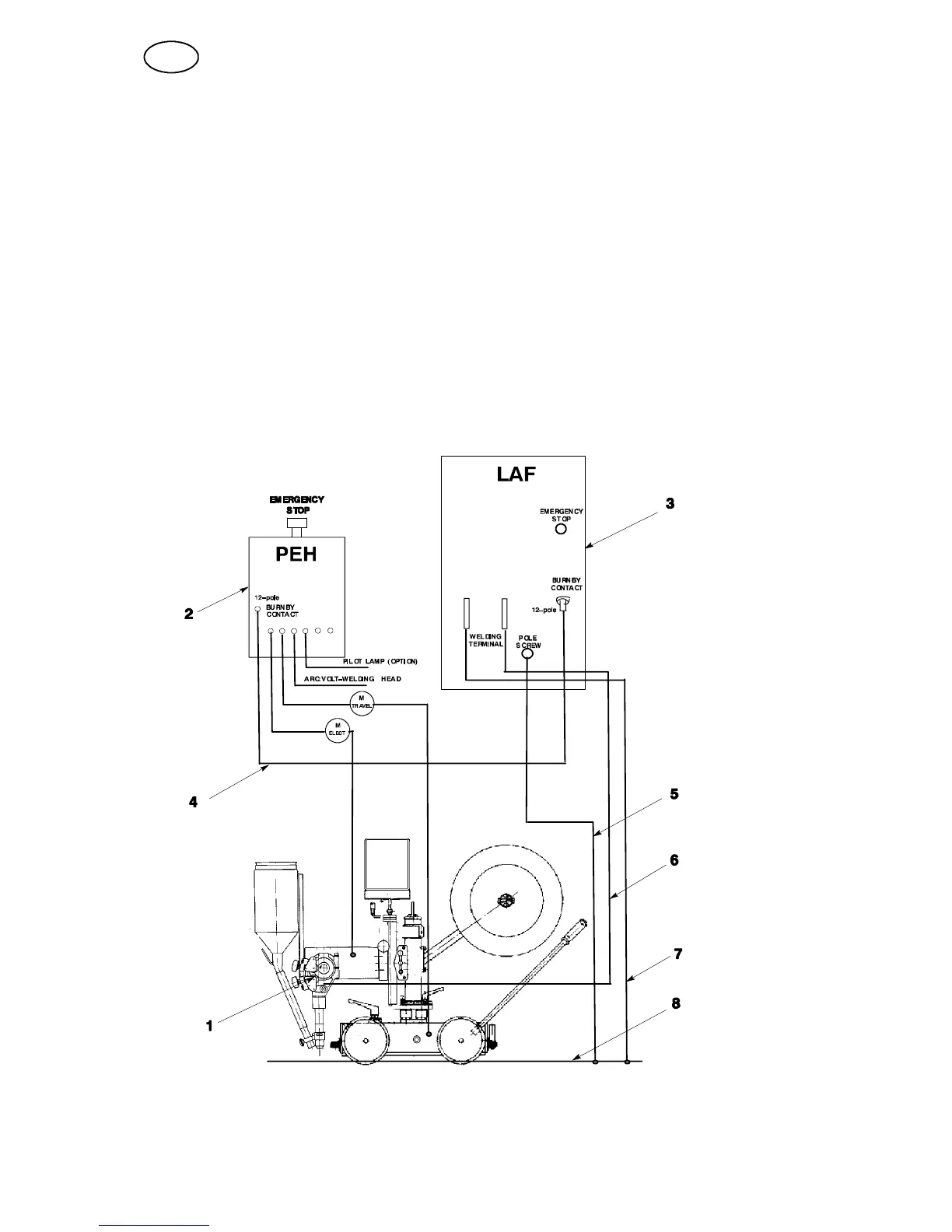

2. The welding machine is connected according to the following figures.
SUBMERGED ARC WELDING -- SAW
S Connect the control cable (4) between power source (3) and control box
A2--A6 Process Controller (PEH) (2).
S Connect return cable ( 7) between power source (3) and workpiece (8).
S Connect welding cable (6) between power source (3) and welding m achine
(1).
S Connect measuring cable (5) between power source (3) and workpiece (8).
--
+
GB
