WELDING OPERATIONS

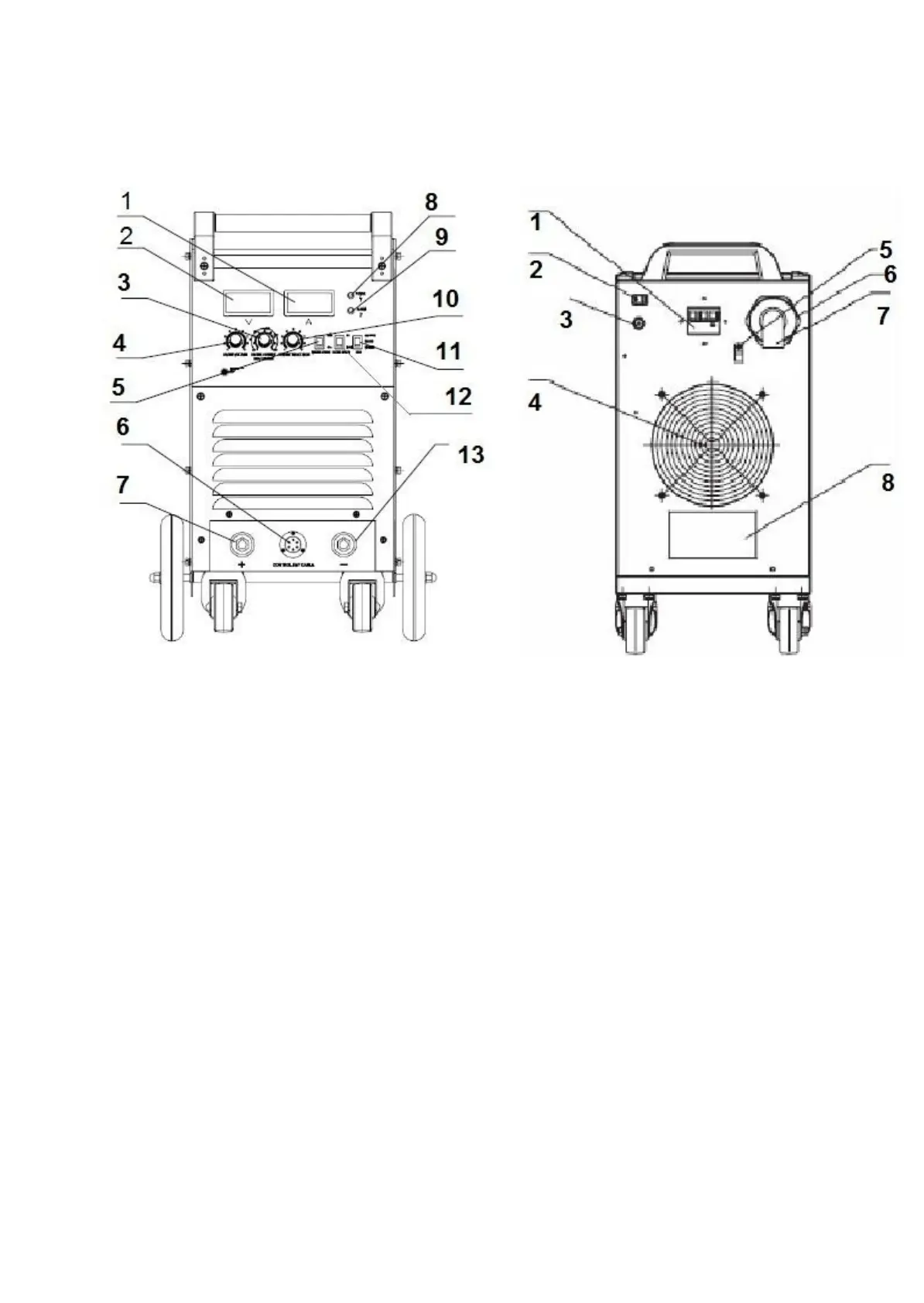

1. Current meter
2. Voltage meter
3. Crater Current
4. Crater Voltage
5. MMA/ MIG switch
6. Wire feeder control circuit socket
7. Power Socket +
8. Power indicating light
9. Protection indicating light
10. Current Inductance control
11. Welding mode selection switch
12. Crater OFF/ON (2T/4T) selection switch
13. Power Socket —
1. Power switch
2. Heater socket AC110V）
3. Controlling power trip (3A)
4. Fan
5. Earthing bolt
6. Cable fixed head
7. Power input cable
8. Nameplate
Indicating light
Only Green light on: The power is on.
Green light on, Red light on: The machine is overheated. The machine will go back to
working condition, if the inner temperature of machine returns to the allowed level.
