31
For fillet welds on tee and lap joints the technique is shown in Figure 3.35. When depositing a multilayer fillet weld, the
same method would be used to deposit the first layer on both lap and tee joints. For depositing subsequent layers on tee
joints two means are used and are shown in Figure 3.36. For additional layers on lap joints a somewhat similar weave may
be seen in Figure 3.37.
SECTION 3 OPERATION

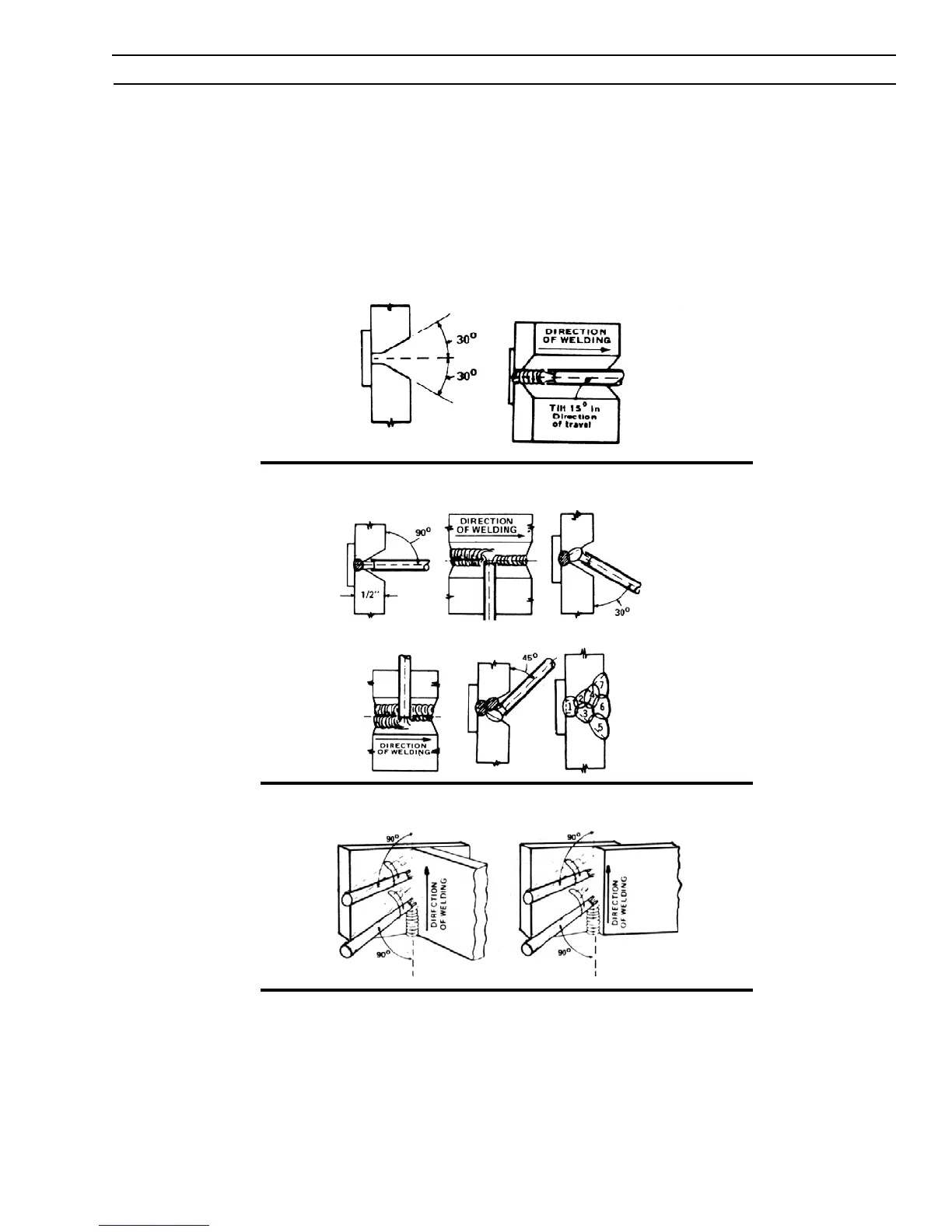

Figure 3.33 Root Pass
Figure 3.34 Multilayer Deposit. Horizontal Butt Weld
Figure 3.35 Fillet Weld - Vertical Tee Joint
