33

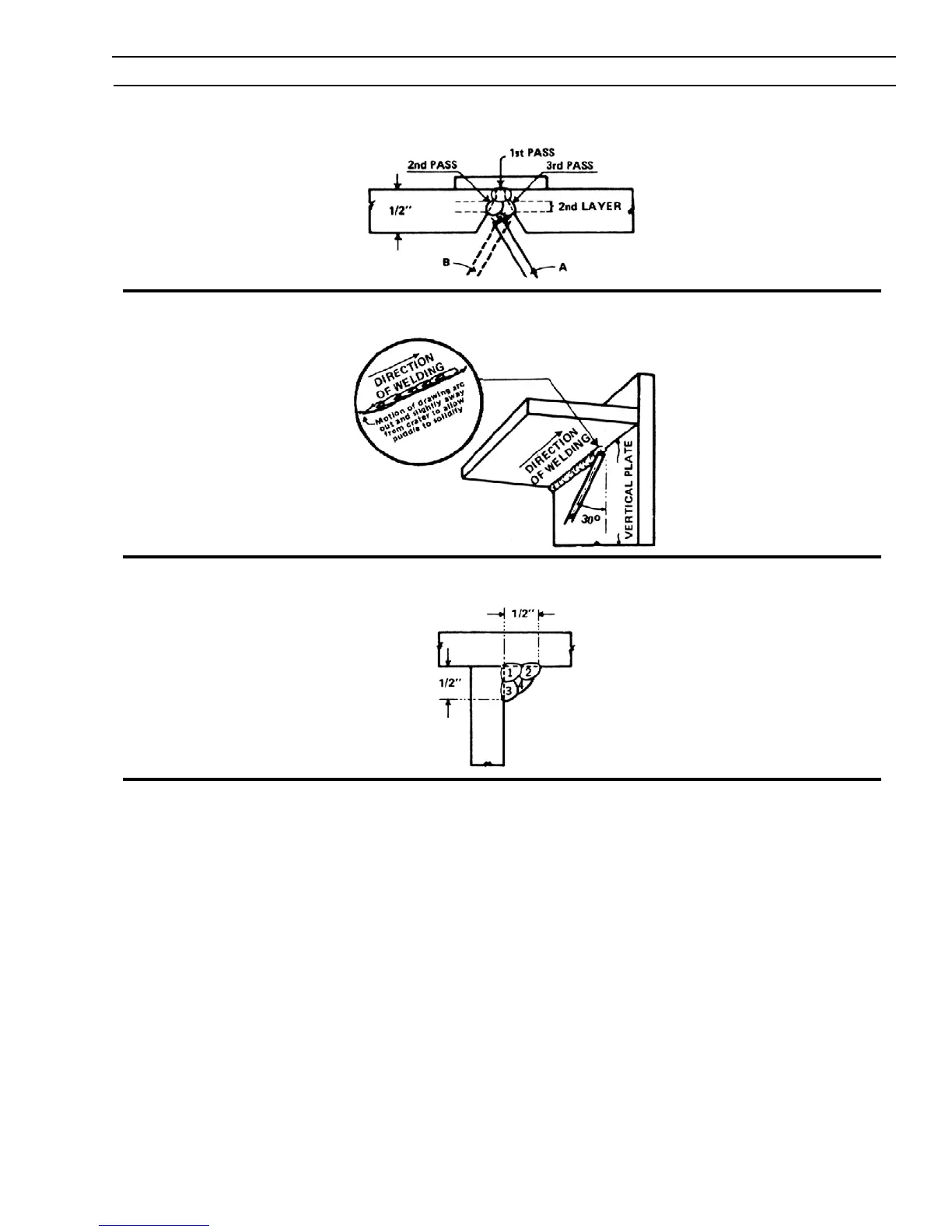

Figure 3.41 Multilayer Deposit - Overhead Butt Weld
Figure 3.42 Overhead Tee Weld - Single Pass
Figure 3.43 Multilayer Deposit - Overhead Tee Weld
CONCLUSION
It may be appreciated that no printed instruction can impart to the beginner all the skills necessary for successful welding.
Personal instruction by an experienced welding operator is the best means for accomplishing this end. Therefore, an effort
should be made to secure some facility for instruction and practice under competent supervision. In any event the beginner
should at least secure the benefit of criticism of finished welds by a qualified welding operator.
SECTION 3 OPERATION
