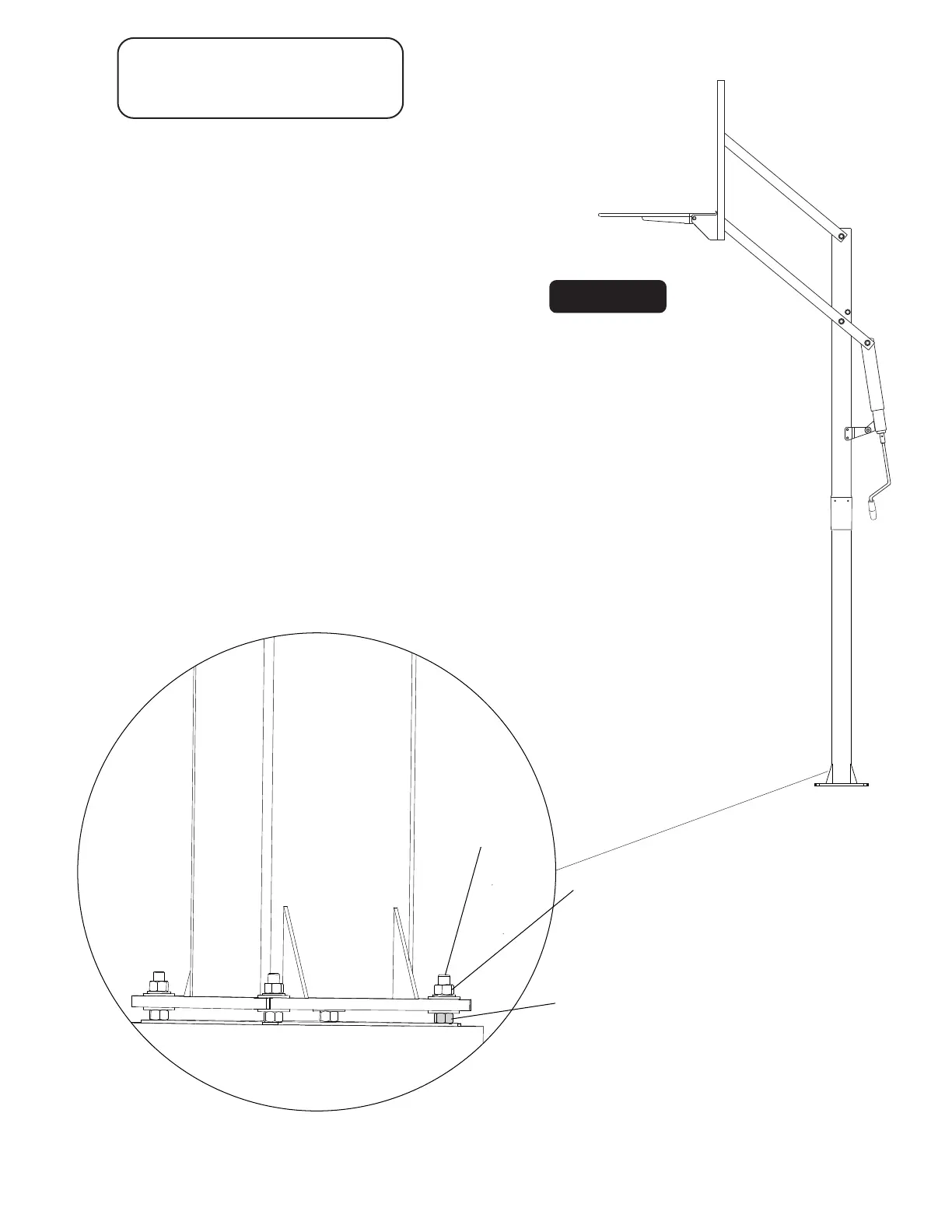

Figure 17
Two adults are recommended for
this step, one to level and one to
adjust the bottom #35 nuts.
29.
14
Detail B
35
39
35
(Bottom)
If further leveling is required loosen top #35 nuts
but do not loosen past the top of #39 “J” Bolt. DO
NOT REMOVE NUTS #35. Place a level on pole and
adjust bottom nuts #35 with a 15/16” open
end wrench until pole is level. Tighten top #35 hex nuts.
See Detail B.
NOTE: DO
NOT remove
top Nut #35
(Top)
