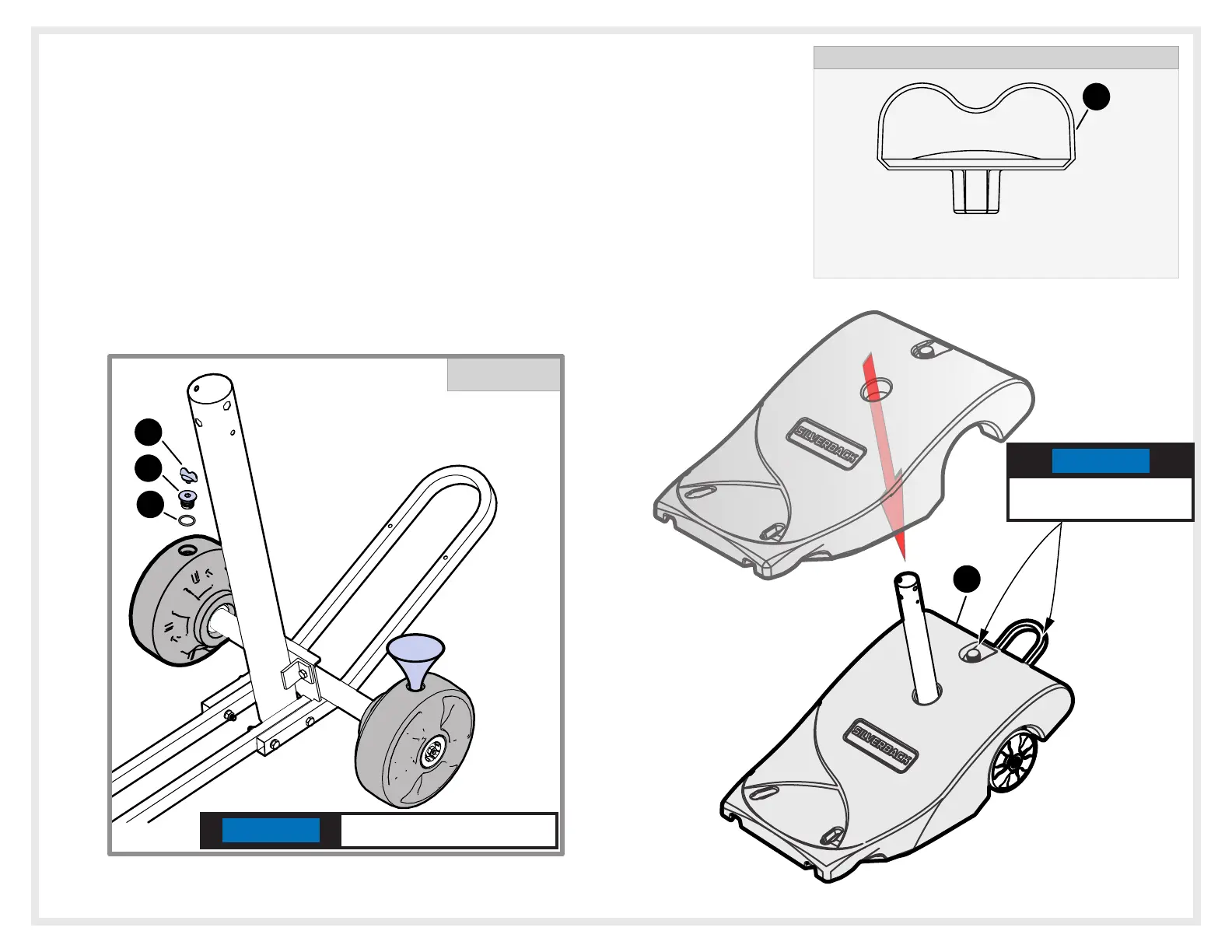

11. Carefully slide Ballast (1) over Lower Pole as shown.
42
41
10. Unscrew the Wheel cap (41) and remove, O-ring (42) is pre-attached to
Wheel cap. Fill both wheels with water until 75% full (approx. 1 gal.)
and screw Wheel cap back into the wheel with Wheel Plug key (57).
Make sure that O-ring is attached to Wheel Cap. See Detail A.
57
Use Funnel if necessary.
1
WHEEL PLUG KEY
3M-9022-00
(QTY. 1)
HARDWARE NEEDED
57
NOTE: 3/8”
Allen Wrench can
be substituted for
Wheel Plug Key.
NOTE
Kick Stand and Fill Cap
are on the same end.
