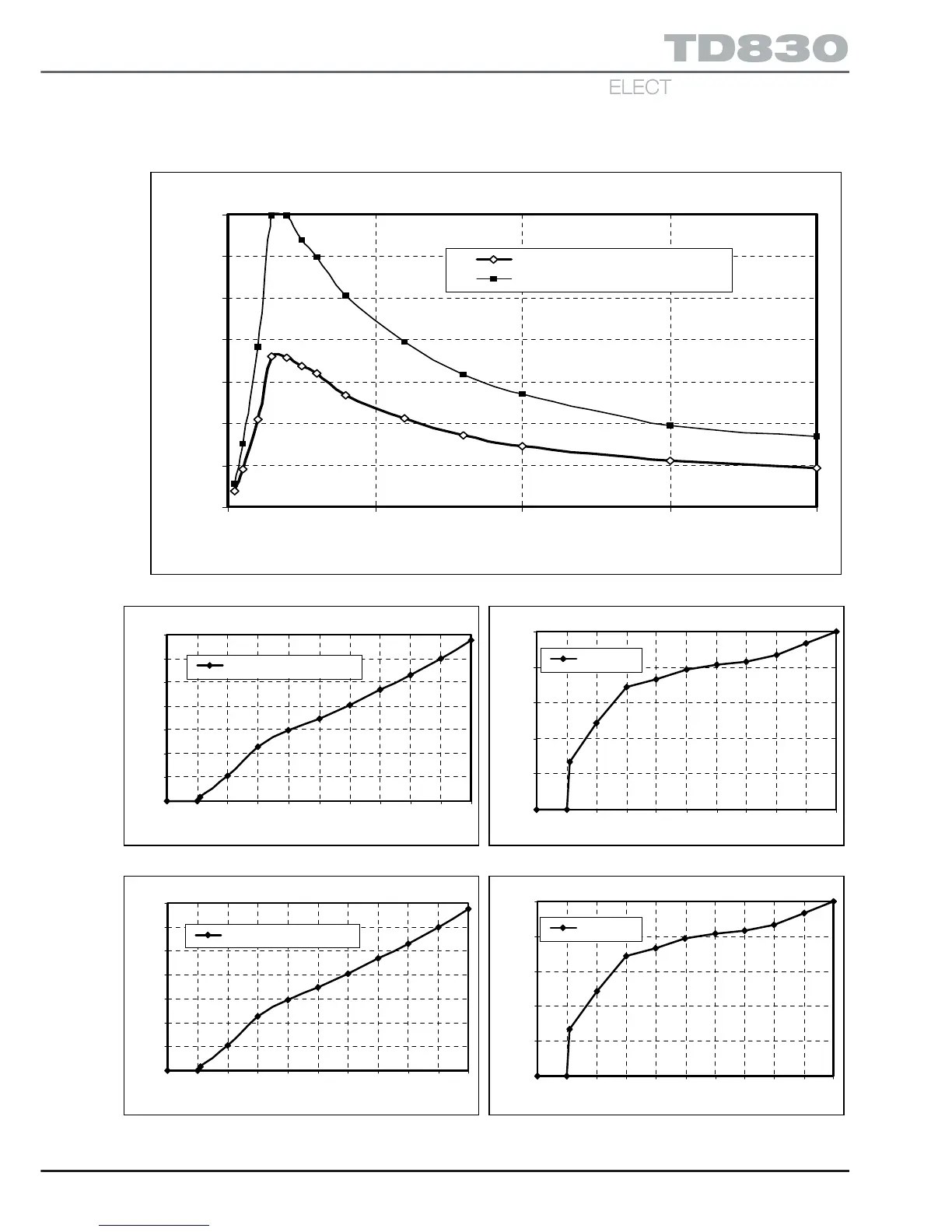

MONOPOLAR SPECIALIST CUT (POWER v LOAD)
0
50
100
150
200
250
300
350
0 500 1000 1500 2000
Load resistance (ohms)
Power output (watts)
Half output control setting
Full output control setting
MONOPOLAR SPECIALIST CUT (POWER v CONTROL)
0
50
100
150
200
250
300
350
012345678910
Output control setting (numerical value up to 10)
Power output (watts)
Load resistance 200 (ohms)
MONOPOLAR SPECIALIST CUT (POWER v CONTROL)
0
50
100
150
200
250
300
350
0 30 60 90 120 150 180 210 240 270 300
Output control setting (typical pow er)
Power output (watts)
Load resistance 200 (ohms)
MONOPOLAR SPECIALIST CUT DIAGRAMS
MONOPOLAR SPECIALIST CUT (VOLTAGE v CONTROL)
0
300
600
900
1200
1500
0 30 60 90 120 150 180 210 240 270 300
Output control setting (typical pow er)
Peak output voltage (volts
)
Open circuit
MONOPOLAR SPECIALIST CUT (VOLTAGE v CONTROL)
0
300
600
900
1200
1500
012345678910
Output control setting (numerical value up to 10)
Peak output voltage (volts)
Open circuit
