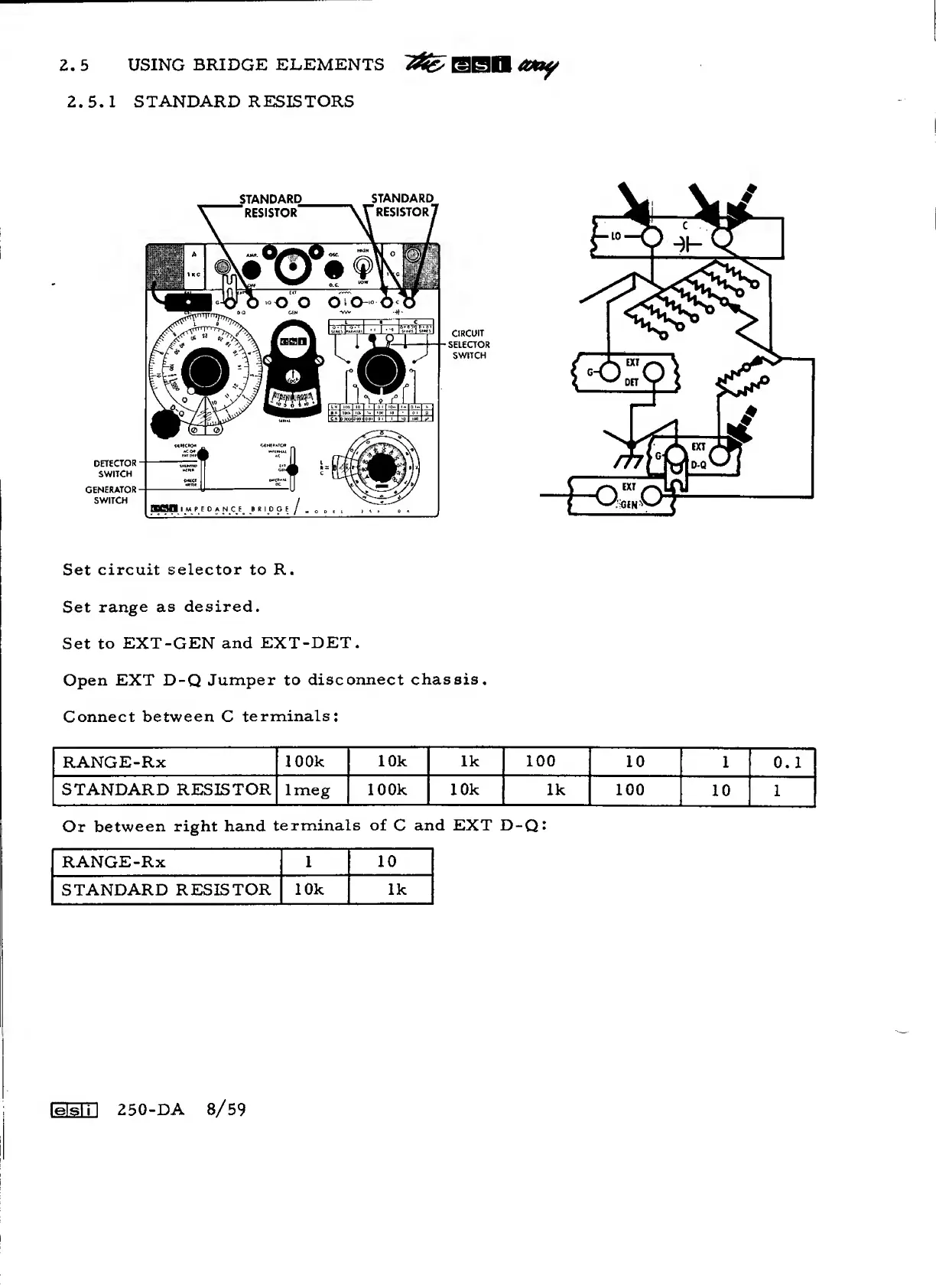

ESI 250-DA - Using Bridge Elements with the ESI Impedance Bridge; Using Standard Resistors as Bridge Elements

2.
5
USING
BRIDGE ELEMENTS
SBB
2. 5.
1 STANDARD RESISTORS
DETECTOR
SWITCH
GENERATOR
SWITCH
Set
circuit
selector
to R.
Set
range as
desired.
Set
to EXT-GEN
and
EXT-DET.
Open EXT D-Q
Jumper to
disconnect
chassis.
Connect between C
terminals
