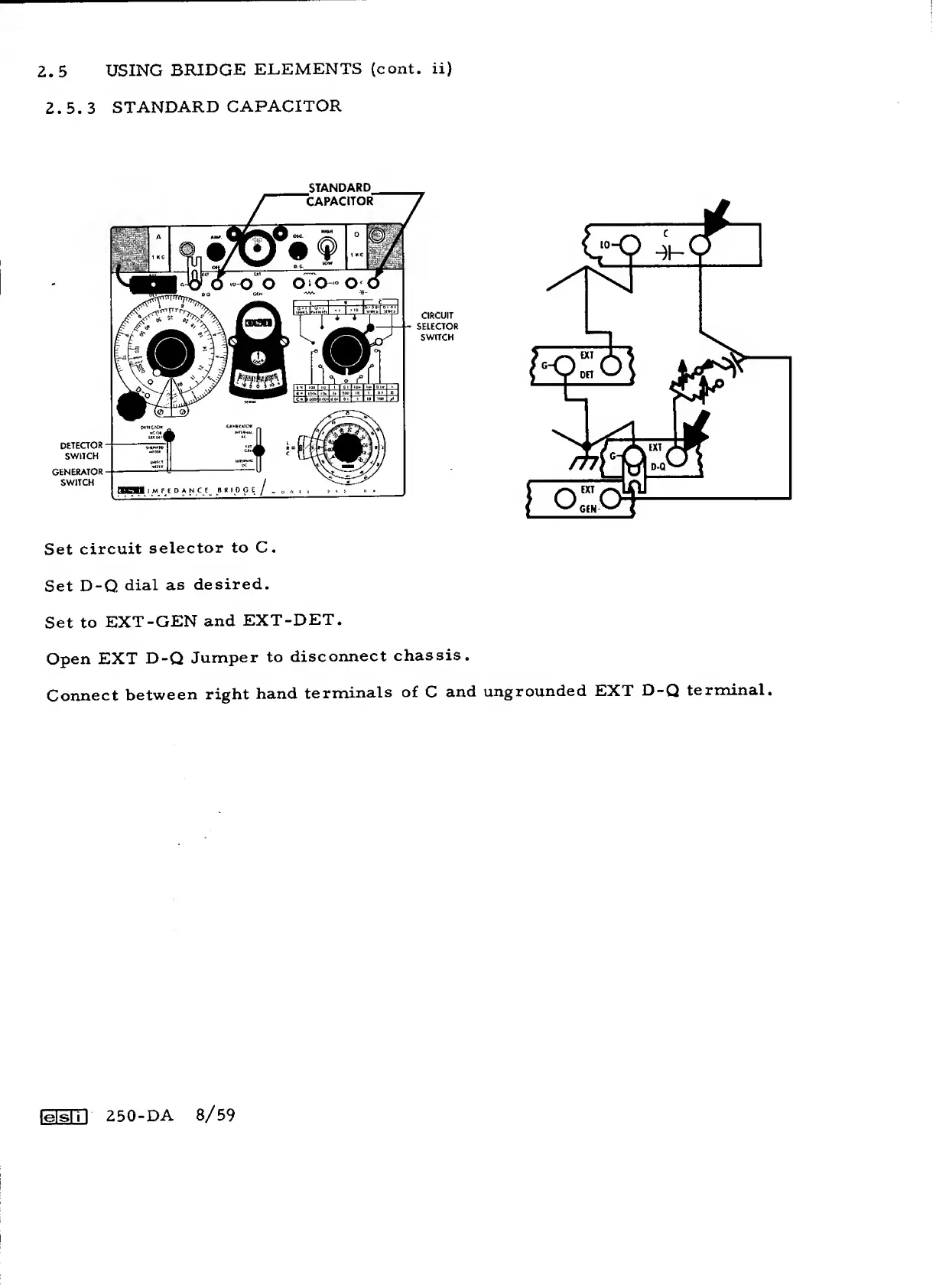

2.5
USING
BRIDGE
ELEMENTS
(cont.
ii)
2.5.3
STANDARD
CAPACITOR
DETECTOR
SWITCH
GENERATOR
SWITCH
Set
circuit
selector
to C.
Set D-Q
dial
as
desired.
Set
to
EXT-GEN
and
EXT-DET.
Open EXT
D-Q
Jumper
to
disconnect
chassis.
Connect
between
right
hand
terminals
of
C
and
ungrounded
EXT
D-Q
terminal.
fasm
250-DA
8/59
