Esko Kongsberg XN IPC 2.0 User Manual

13
Kongsberg XN / iPC 2.0
144

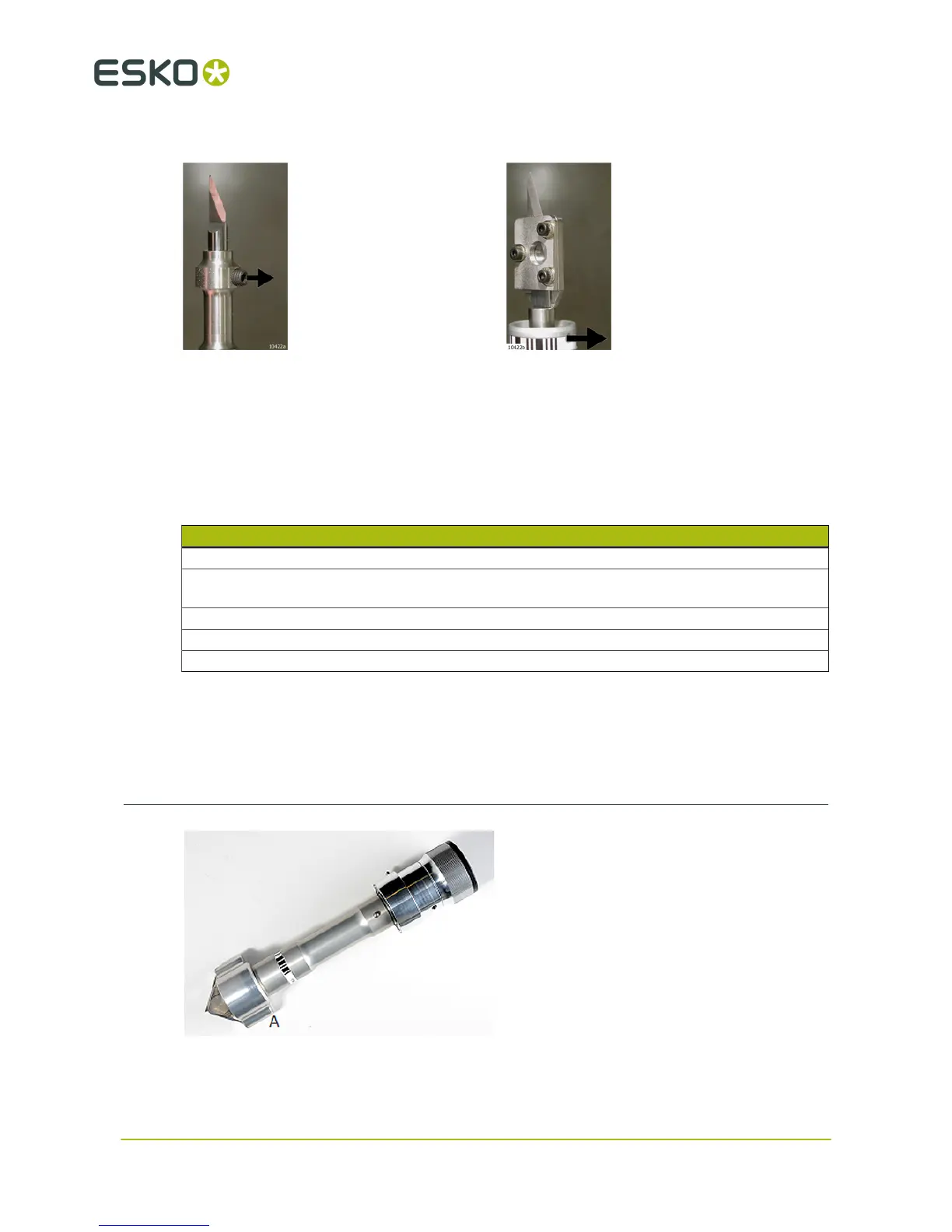

Knife direction
The locking screw will always point towards the
cutting direction
The locking screw will always point towards the
cutting direction
13.18.1 Tool adjustment
For this tool, complete the following adjustments:
Parameter Description
Tool Height The tool tip should touch the material surface.
Lag Setting The knife lag depends upon the actual knife blade adapter and knife
blade.
Tool Rotation Adjust tool angle tangential to moving direction.
Center Offset Adjust tool sideways until centered.
Tool Offset Adjust offset relative to Laser Pointer.
For more information about how to run the adjustment wizards, see Tool Configuration.
13.19 VI45 Knife Tool
A – knife adapter
Lag = 0mm.
