Kongsberg XN / iPC 2.0
154

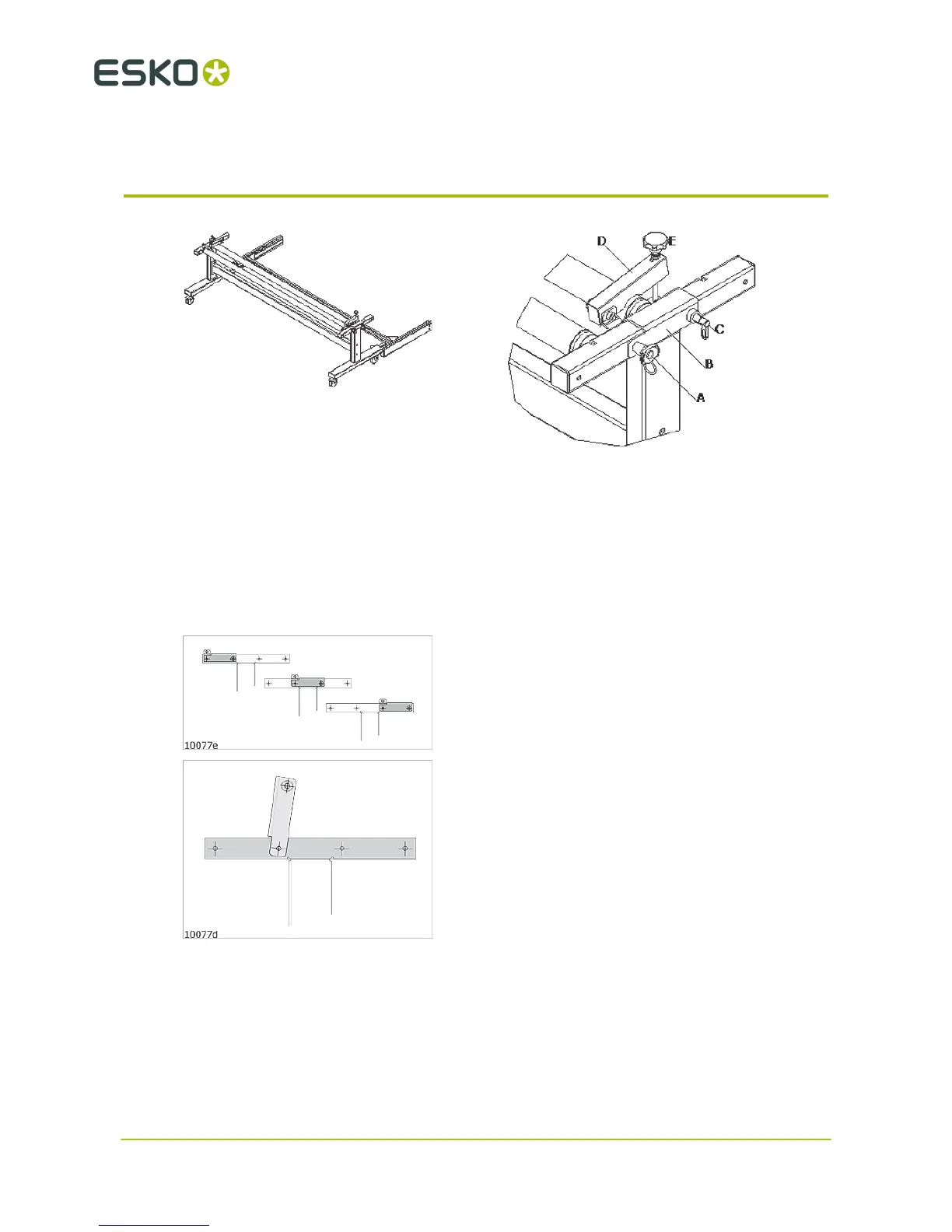

16. Roll Feeder
A – Bracket Position Pin (push the center button to release the lock).
B – Roll Holder Bracket.
C – Brake Position Locker.
D – Roller Brake.
E – Brake Tension adjustment. Turn clockwise to increase tension.
To adapt to different roll sizes, three Roll
Holder Positions are prepared.
To move the roller bracket, remove pin (A) and
release locker (C).
To disengage the Roller Brake, release the
Brake Position Locker (C) and tilt the bracket.
