APDSPXMW
Multi-Way Door Station
Blue User Tag
Allows holder to release the door
Green Programming Tag
Allows holder to ADD
additional user tags
Red Programming Tag
Allows holder to REMOVE
additional user tags
APPOWMW
System Power Supply Unit
APSEPMW
Power Supply Seperator
APBC4MW
System Branch Controller
Site the door station a
recommended 1.5 meters from the
ground, or to suit application.
The camera needs to point in
the direction of where a visitor
will stand during operation.
Avoid areas of
high sunlight and
noise levels.
Surface mount the sunshield of the door station and
connect the system cabling. Mount the camera to the
sunshield by fixing with the supplied hex screw.

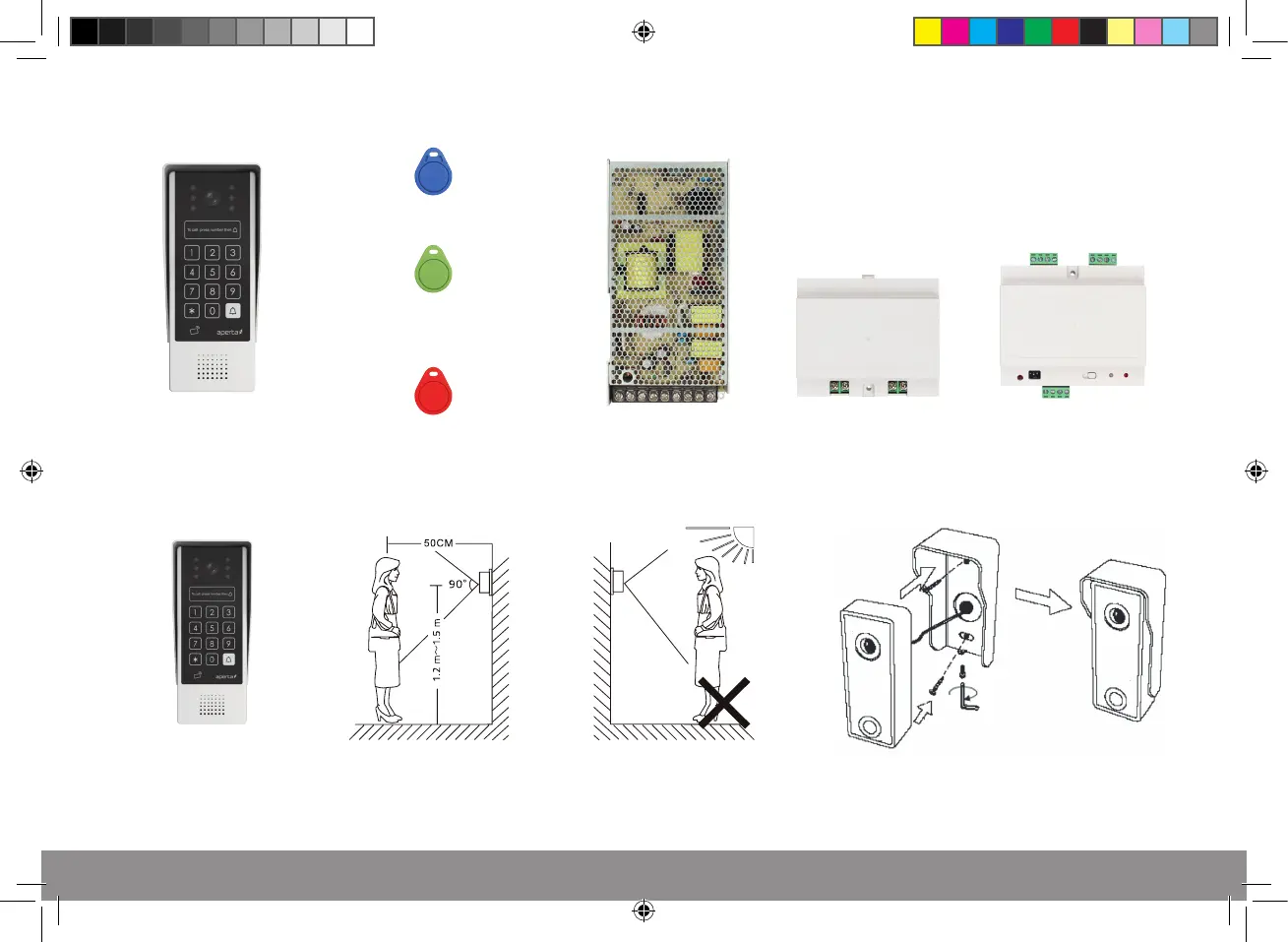

System Components
