ESP Aperta APDSPXMW - Door Station Wiring Example 2; Multi-Apartment Wiring Configuration; Branch Controller Settings; Door Station Address ID Assignment

ESP Aperta APDSPXMW
16 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
3
Set ‘End of Line’
devices
MASTER &
END OF LINE
MASTER &
END OF LINE
MASTER &
END OF LINE
MASTER &
END OF LINE
SLAVE &
END OF LINE
SLAVE &
END OF LINE
SLAVE &
END OF LINE
SLAVE &
END OF LINE
4 Apartments with 2 monitors each
5

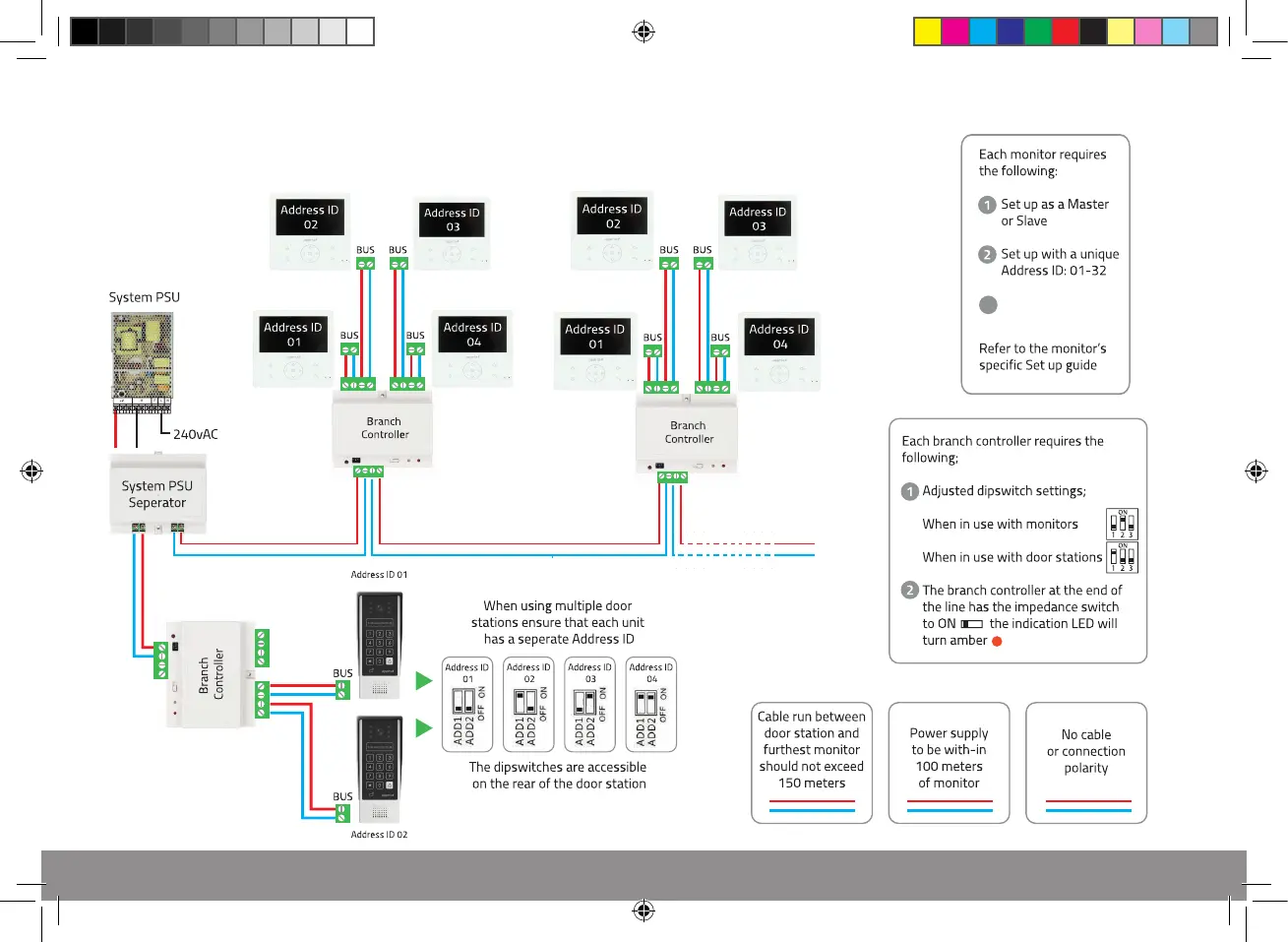

Door Station Wiring Example 2
APDSPXMW Manual.indd 5 23/01/2018 10:11:04
