4
Installation
Note: if using more than one keypad, ensure that the keypads are mounted a minimum 185cm apart

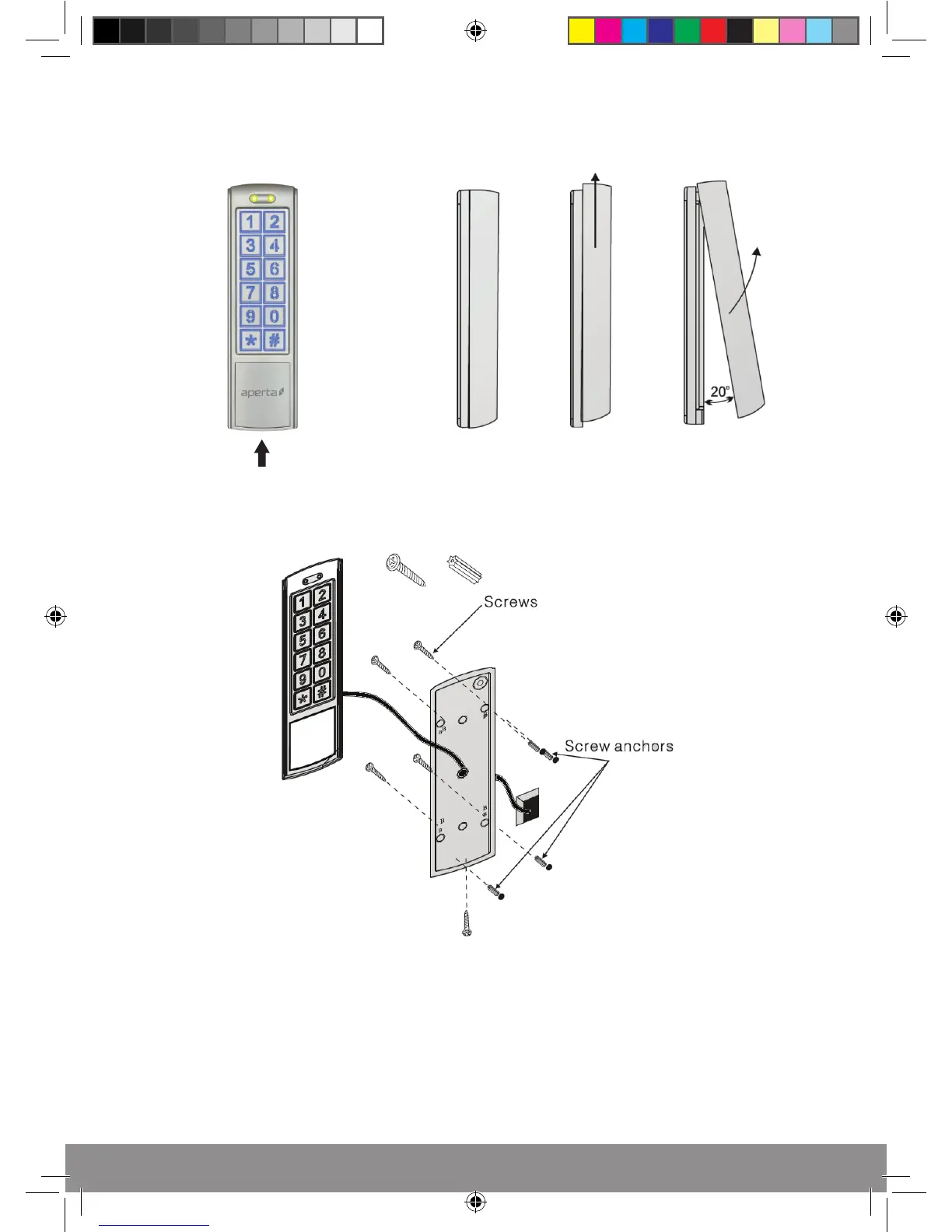

(Side View)
Push the keypad up to release from mount plate
Release hex screw from
the bottom of the keypad
Thread system cable through the cable entry hole then make
the system connections (as per the wiring diagram), mount the
bracket to the surface and slide the keypad to the mountplate,
re-fit the hex screw to secure into position.
