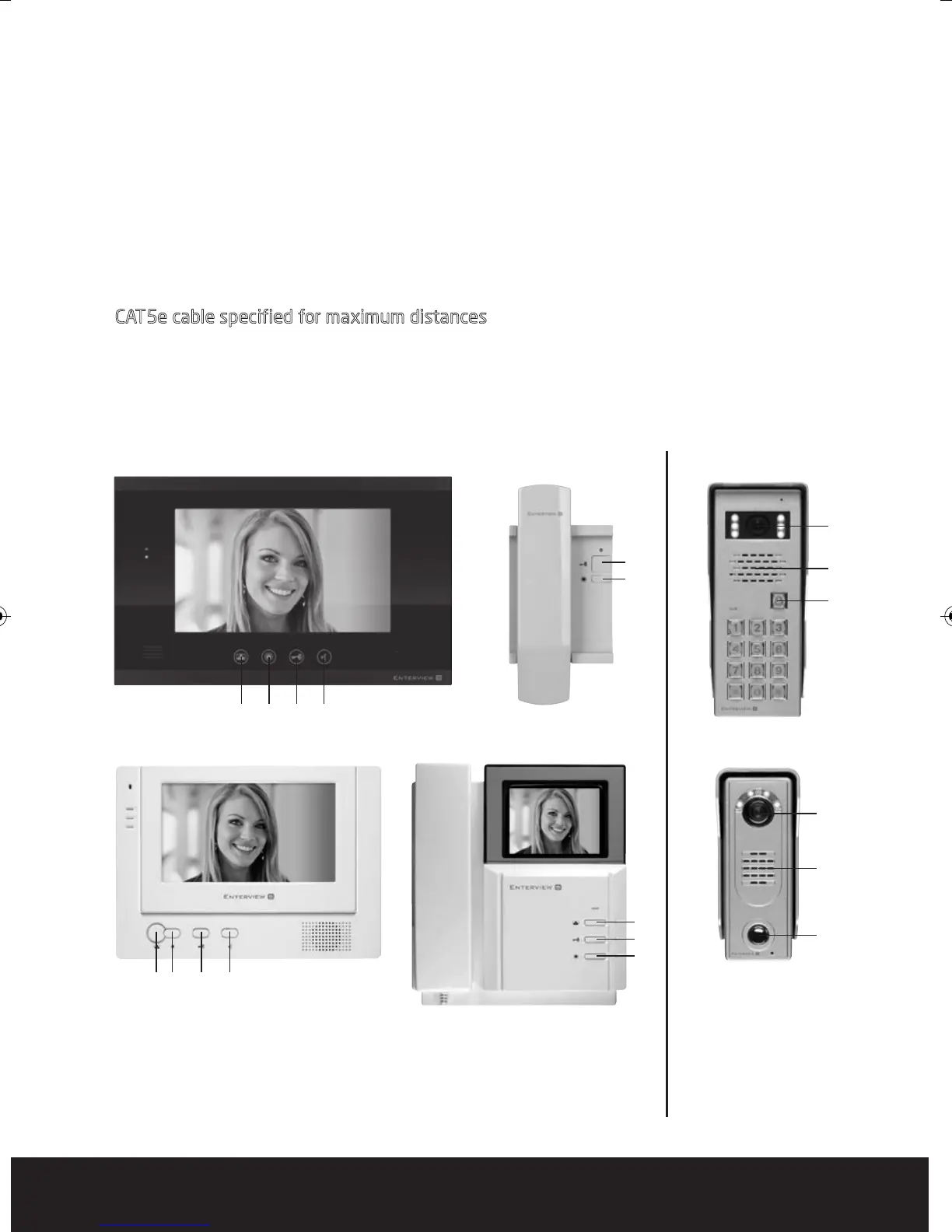

Enterview 5 Overview
 4 Handsets maximum per-system
 2 Audio-Only handsets maximum per-system
 Each handset requires supplied PSU (1 PSU per handset required)
 Keypad Camera requires suppIied PSU
 Standard Camera requires EVBPS for door release facility
 For a voltage-free contact: Keypad Camera requires a12VDC relay (not supplied)
C
AT5e cable speci fied for maximum distances
 100 Meters maximum distance between outdoor station and furthest handset
 10 Meters maximum distance between handset and supplied PSU - Note: 2 pairs of
CAT5e must be used to achieve this distance
1 – Camera
2 – Speaker
3 – Call Button
1 – Opens Camera Channel
2 – Door Release
3 – Call Transfer
4 – Opens 2-way Audio
EVH5C-HF
Keypad Camera
Standard Camera
EVH5
EVH5AOEVHF10B / EVHF10W
