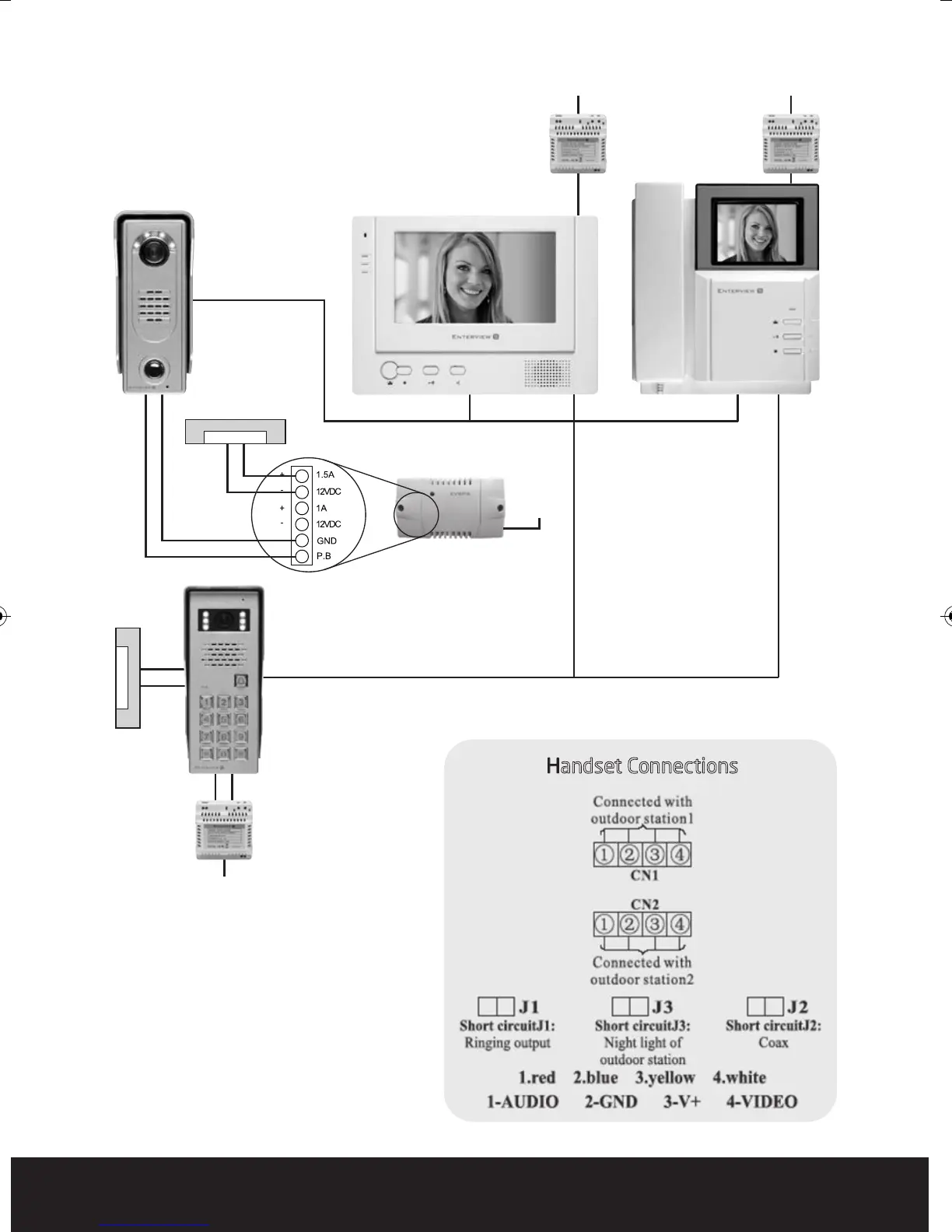

ESP Enterview 5 - 2 Door Wiring Configuration

NOTE:
J1 AND J2 – DO NOT REMOVE
J3 – ONLY REMOVE FOR MULTIWAY
OUTDOOR STATION CONNECTION
5
LOCK
1
2
3
4
5
6
LOCK
AC240
AC240
Keypad PSU
provided
See additional wiring instructions for keypad
AC240 AC240
Handset PSUs
provided
Handset Connections
2 Door Wiring Configuration
