ESP Enterview 5 - Additional Keypad and Magnetic Lock Wiring; Additional Keypad and Yale-Release Wiring

7

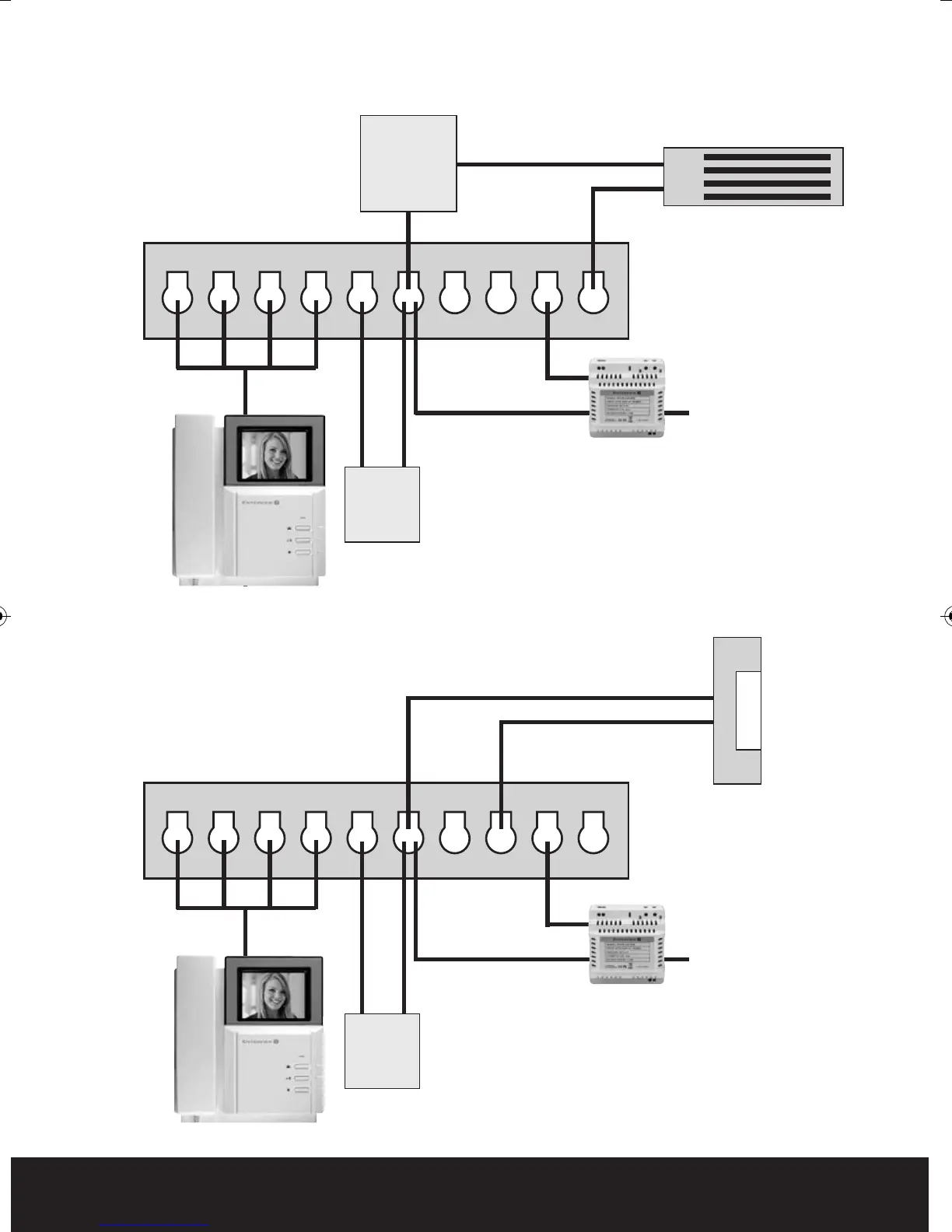

Additional Keypad and Magnetic Lock Wiring
EGR Ov COM
N.C
EXIT
BUTTON
EMERGENCY
BREAK
GLASS
AC240
Keypad PSU provided
*For a voltage-free contact: Keypad requires
and additional 12VDC relay (not supplied)
Back of Keypad camera
–
+
MAGLOCK
Additional Keypad and Yale-release Wiring
EGR Ov COM
N.O
EXIT
BUTTON
AC240
Keypad PSU provided
*For a voltage-free contact: Keypad requires
and additional 12VDC relay (not supplied)
Back of Keypad camera
–
+
Yale Release
