Equipment required for controlling one door:-
12 volt DC power supply 2 amp minimum (EV-BPS)
Lock - Magnetic (EVML-250)/Yale type keep 12 volt lock (enter D)
Push to exit button (EVEXIT)
Green break glass emergency release (EVEBG)*
*Note:- for use with Magnetic lock only
Functions of the EZ-LOCK
The EZ-LOCK can control up to two doors by use of pin numbers.
Selectable Pin number length 2,3,4,5 and 6 digits
(per zone).
Programmable door open time 00 to 99 seconds.
Two locations (zone 1, zone 2) are available for programming pin
numbers.
1000 Pins can be programmed for zone 1.
10 Pins can be programmed for zone 2.
Two volt free change over relays one per door.
Door closed function (contact required).
2 push to exit button inputs, one per zone.
Programmable volt free change over relay for door bell functio
n.
P
rogrammable rear tamper.
Internal buzzer for tamper monitoring (auto cut off after 1 min).

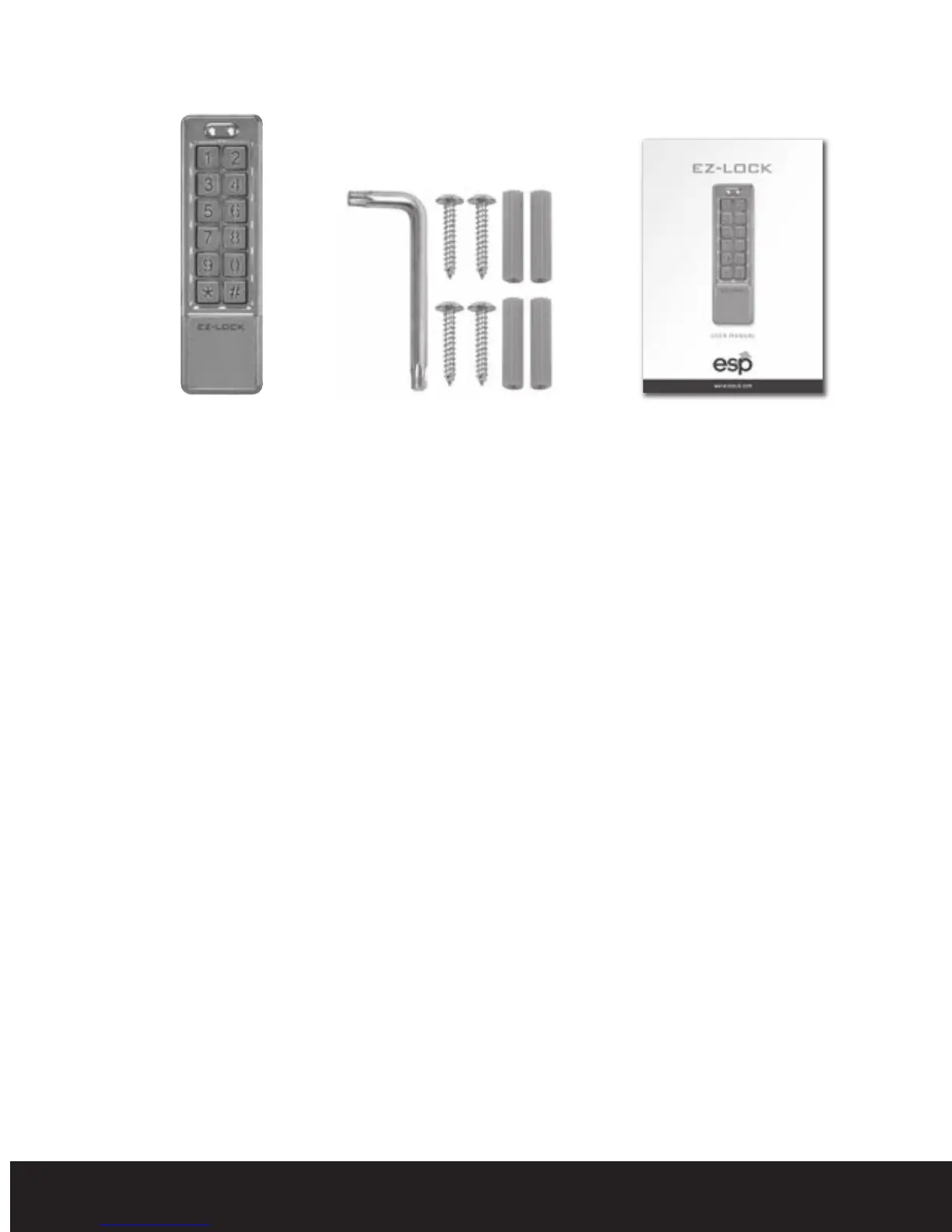

1 x Security Torx Key
4 x Screws and raw plugs
Manual and
Marking out template
EZ-LOCK
and Back Plate
Contents
