ESP EZ-LOCK - Installation and Wiring; Sighting and Fitting the EZ-LOCK

3
Sighting Of The EZ-LOCK
Site the EZ-LOCK within easy access to the door/doors to be controlled.
Recommended mounting height 1.2m.
Fitting
Using the template mark and drill the fixing and cable entry holes.
Remove security screw from the underside of the keypad and
remove back plate.
Fit and secure the back plate in its final position. (See Fig. 1)
Feed the cable from the keypad though the centre hole of
th
e
back plate.
Clip the top of keypad onto the back plate and secure using the
security fixing screw located on the underside of the keypad.
Make all wiring connections and connect 12 volts DC to the keypad.
The green power LED will now be illuminated on the front of the keypad.
System wiring
Screw
raw
plugs
Screws
Torx Screw

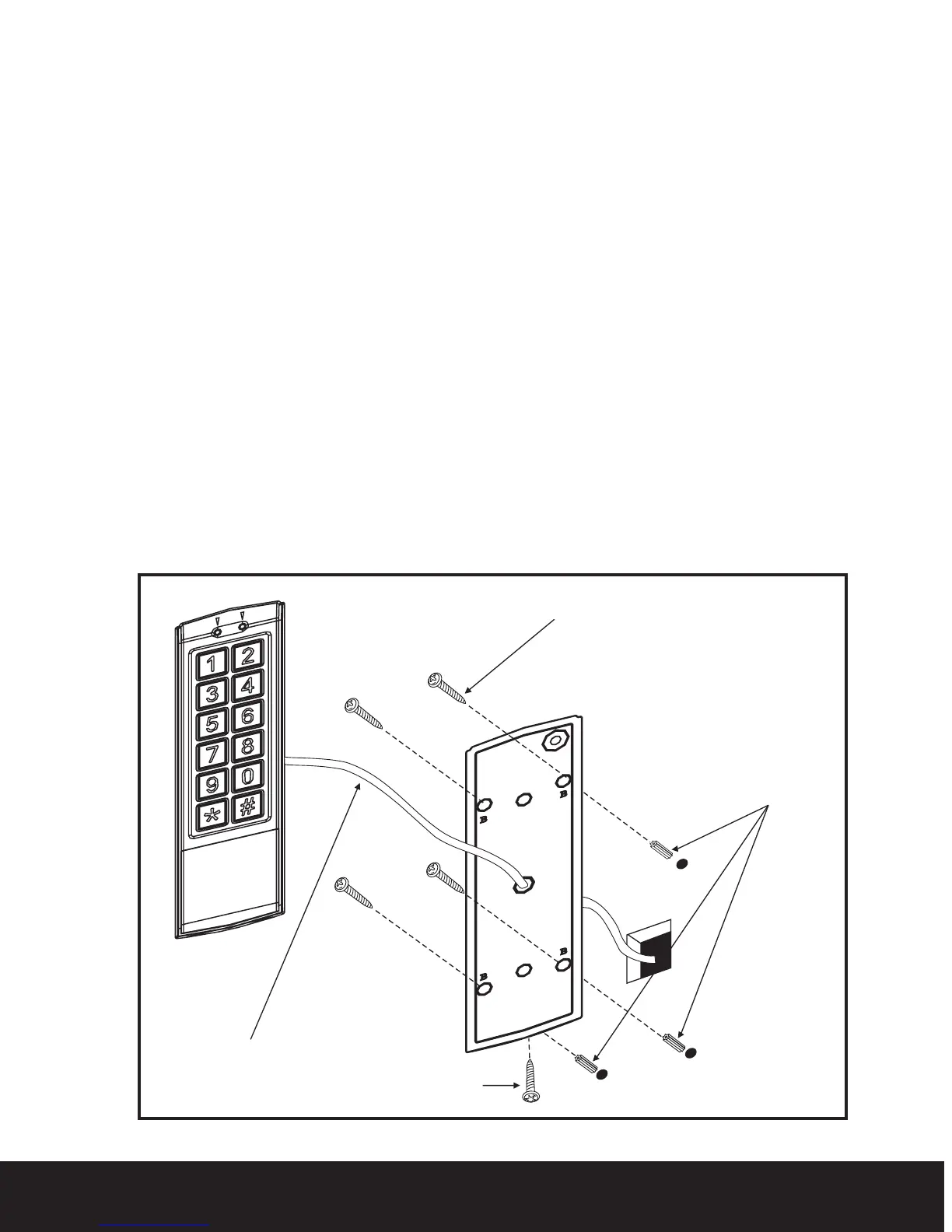

Fig. 1
