ESP EZ-LOCK - Wiring Diagram for Maglock; Wiring Diagram for Yale Release

5
RED
BLACK
WHITE
PINK
Exit Button
0-20
L N
E.lock
+ -
DC out
+ -
Push button
GND P.B
N.O
Timer
secs
240vAC
INPUT
EV-BPS
Yale Release
Exit Button
0-20
L N
E.lock
+ -
DC out
+ -
Push button
GND P.B
N.C
Timer
secs
RED
BLACK
WHITE
PINK
INPUT
EV-BPS
Maglock
Emergency
door release
COM
N.C
Capacitor
0.47uF
100v
240vAC

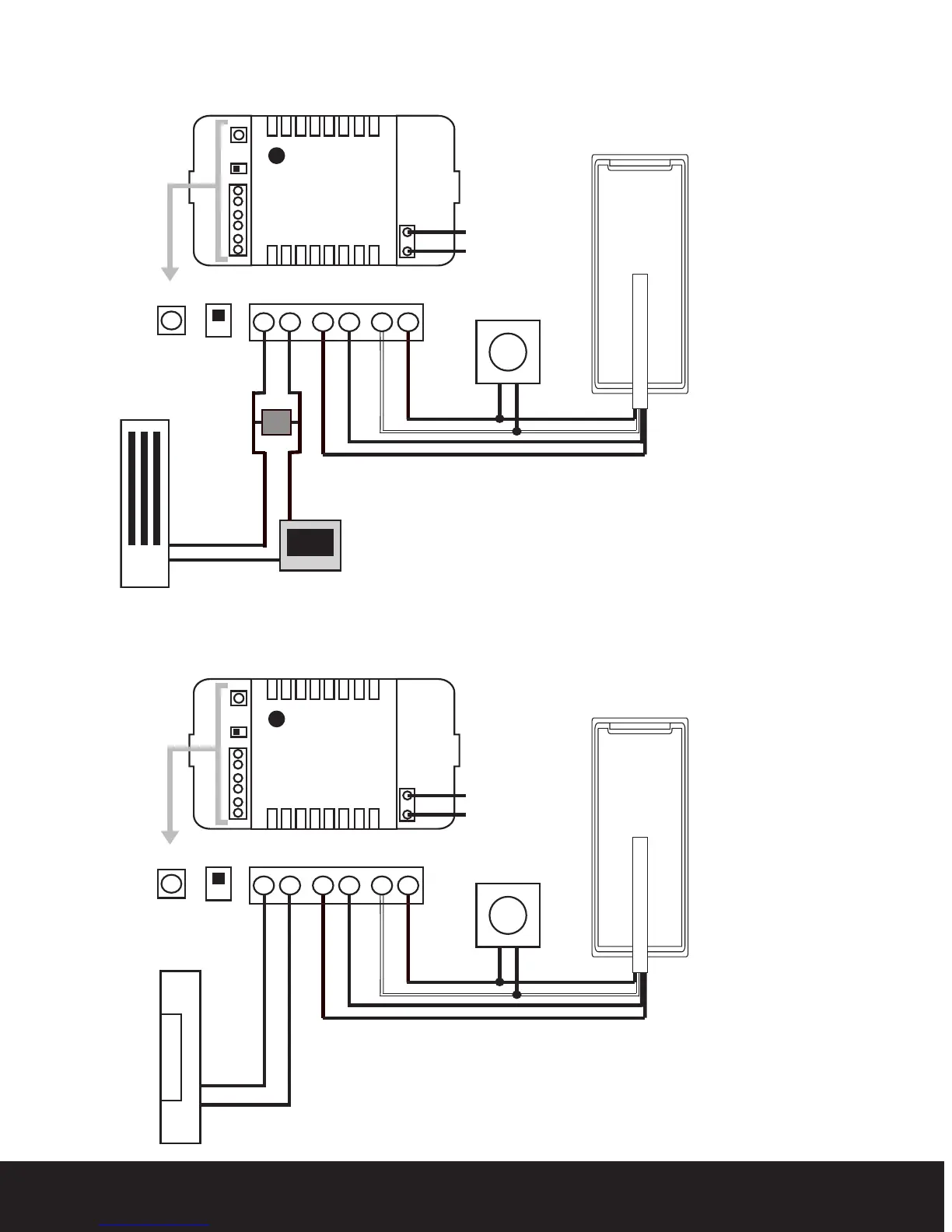

Wiring Diagram for Maglock
Wiring Diagram for Yale Release
