GuardCam Motion Light with Video Camera overview
Step 1 - Assembly

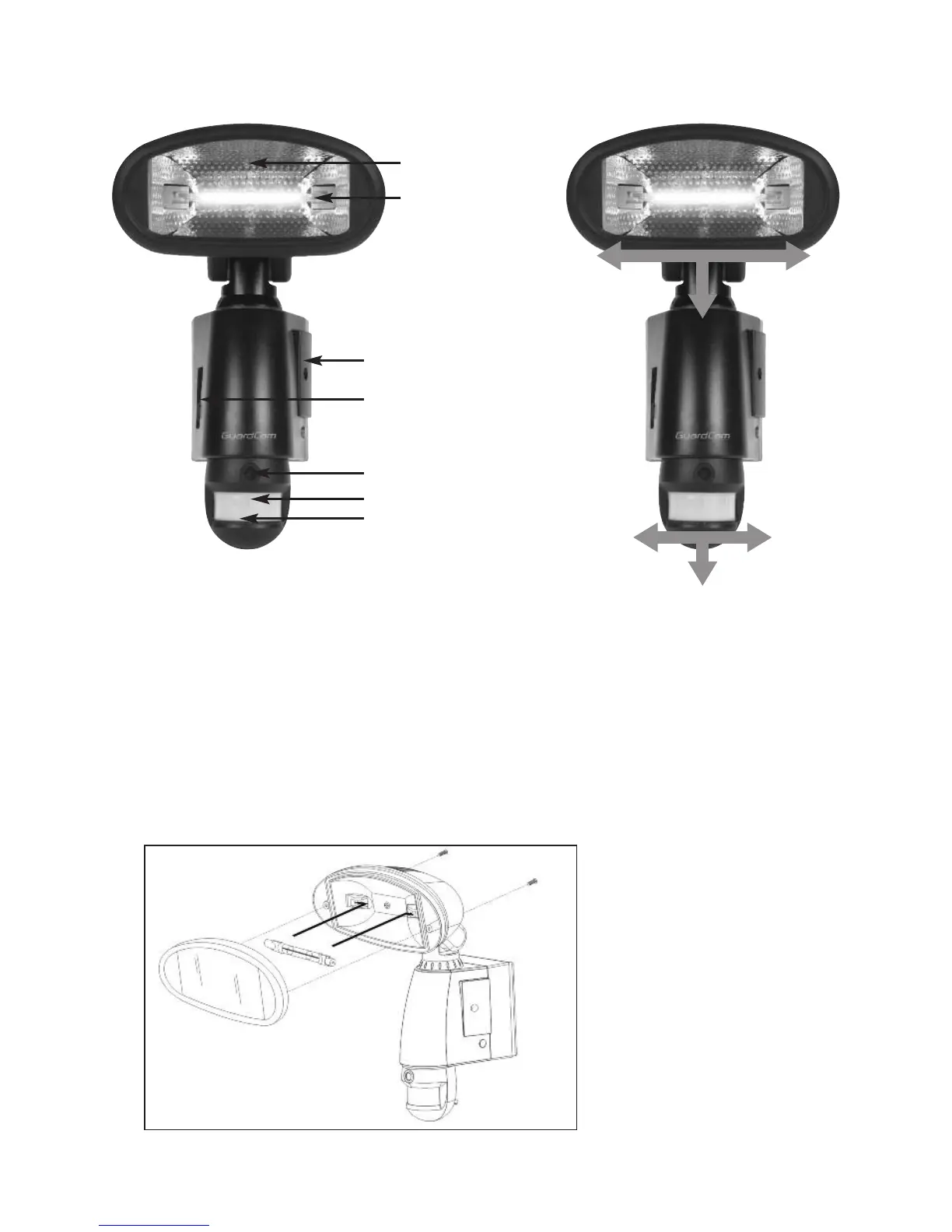

Install/replace the halogen lamp (see Fig. 1)
I Make sure to unplug unit or turn off power first.
I Remove floodlight cover by unscrewing floodlight screws using a Phillips head
screw driver.
I If replacing a bulb, take out the existing halogen light bulb.
I Put in new 230 Watt maximum halogen light bulb.
I Replace floodlight cover tightening screws carefully.
Halogen lamp
45º
45º
35º
45º
45º
50º
Waterproof cover
3 mode selection
Camera lens
PIR lens
Low battery indicator
Floodlight Cover
Fig. 1
4
