Names and Functions of Parts
26
Platinous User’s Manual
4.1.3 Test Area (1)

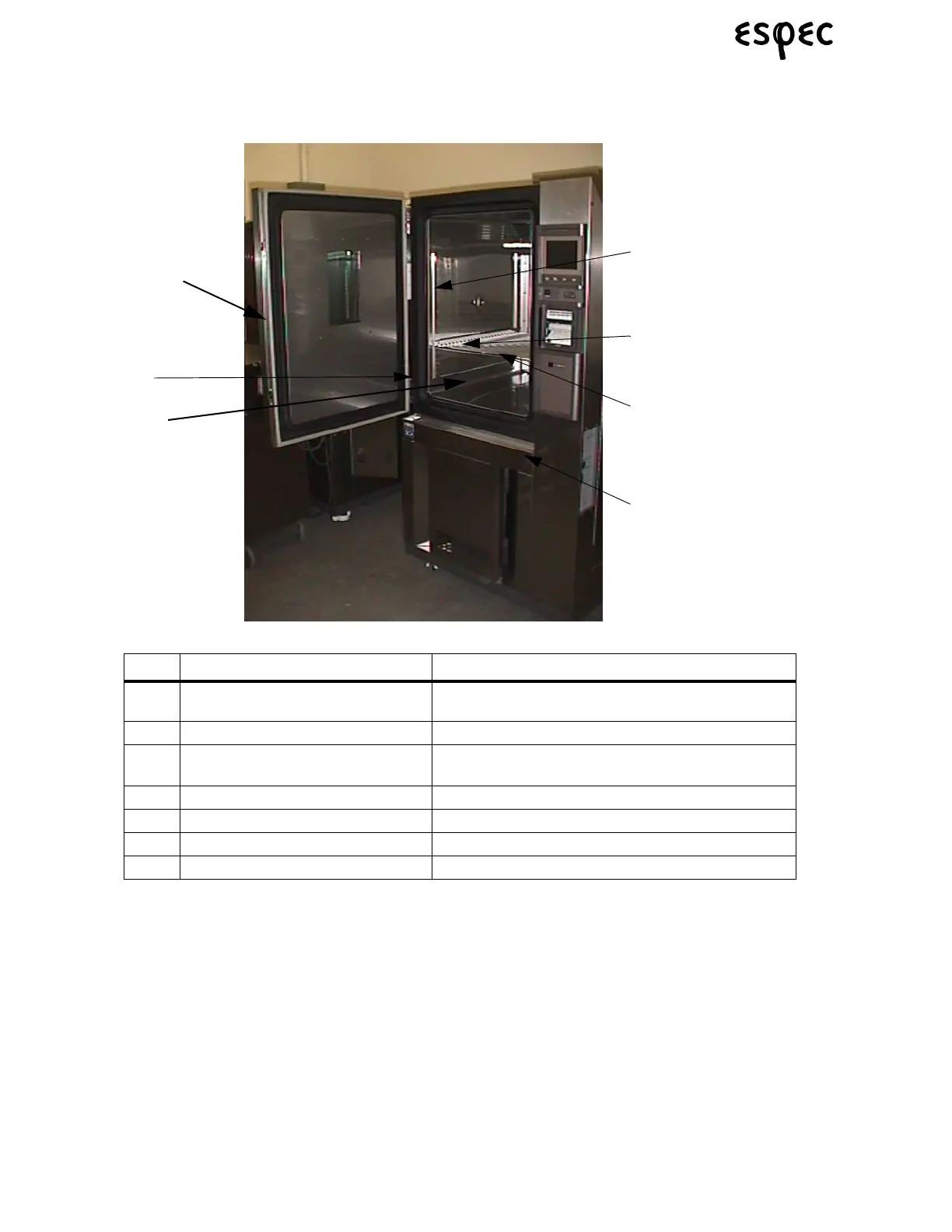

FIGURE 4.12. CHAMBER TEST AREA
Name Function/Use
(1) Test Area Area where specimens are located for temperature (&
humidity) tests.
(2) Shelf Support Pilaster Install shelf brackets here.
(3) Shelf Bracket Supports the shelf. To change shelf height, reposition
the brackets on the shelf support.
(4) Shelf Holds specimens during tests.
(5) Dew Tray Collects and drains dew formed on the chamber door.
(6) Door Outer Gasket Keeps outside air from penetrating the chamber.
(7) Door Inner Gasket Keeps outside air from penetrating the chamber.
Shelf Support
Pilaster (2)
Shelf Bracket (3)
Shelf (4)
Dew Tray (5)
Door Outer Gasket
(6)
Door Inner Gasket
(7)
Test Area (1)
To Next Page
