Operation
72
Platinous User’s Manual
Droop cables below and up to specimens as shown in Figure 6.44
on page 72.
If cables are taut, dew can run down the cables and damage specimens.
To charge specimens with less than 2A of power
Be sure to fit the line with a suitable capacity fuse.

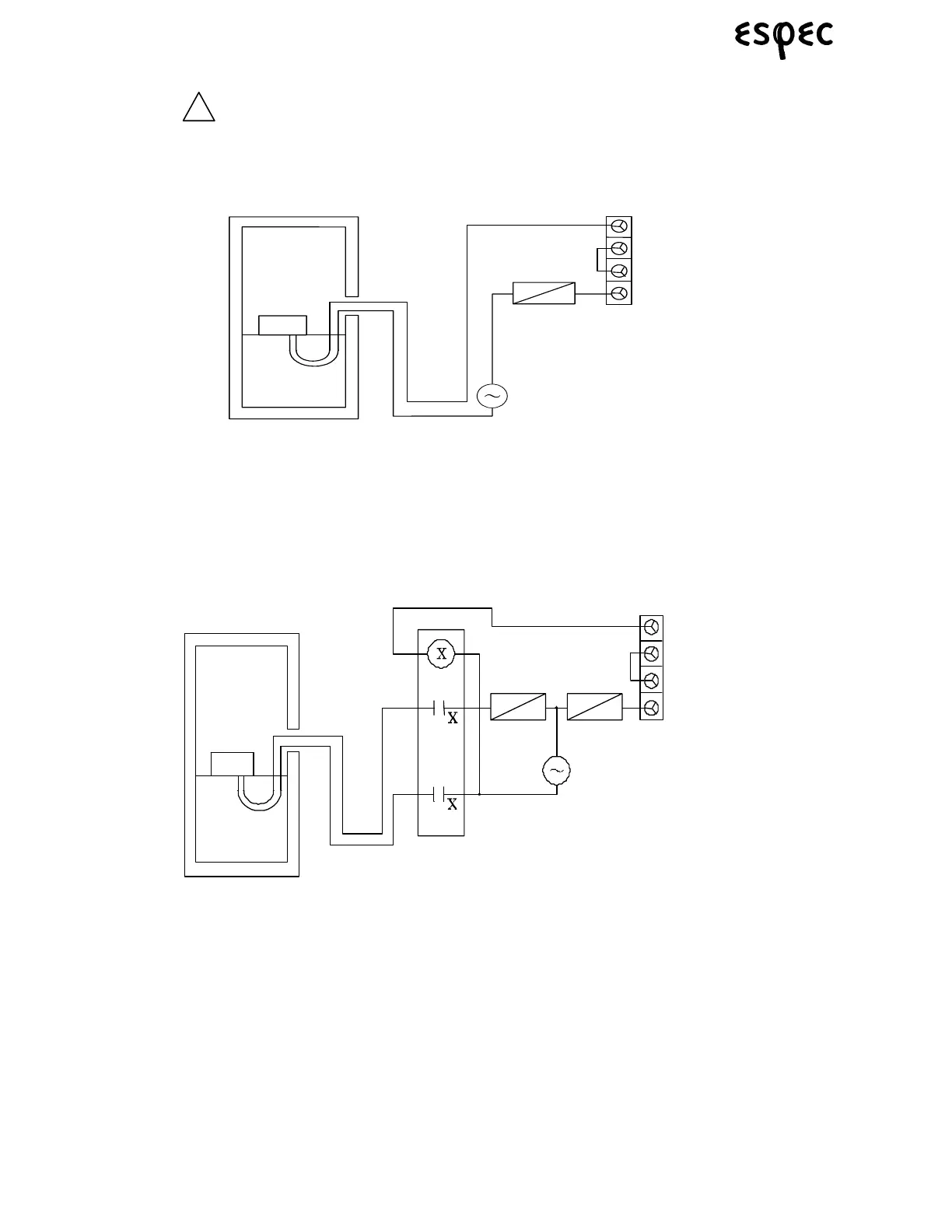

FIGURE 6.44. WIRING TO SPECIMENS (LESS THAN 2A)
To charge specimens with 2A or more power
Be sure to fit the line with a suitable capacity contactor and fuse.
FIGURE 6.45. WIRING TO SPECIMENS (2A OR MORE)
2. Turn the time signal ON for Steps 2 and 4 of the program. See Figure 6.44 on page 72
6.5.3 External Alarm Terminal
Purpose - Use
This feature is used to notify an external point when the chamber has been stopped by a safety device
tripping.
Specimen
Test area
Power supply for
specim ens
Fuse
Specimen power
Supply control
terminals
Tim e signal
term inals
Fig. 5.15 W iring to Specimens
(To charge specimens with less than 3A of power)
Fuse
Fuse
Power supply for
specimens
Test Area
Specimen power
Supply control
terminals
Time signal
terminals
To Next Page
