ESS GPS-5 OWNER’S MANUAL
Engine/Compressor
Pre-spray check
Steps for operation
1. Check oil level in engine; add oil if needed
2. Check gas level in engine tank; add gas if needed
3. Check oil level in compressor; add oil if needed
4. Prepare the tank mix. Open tank. Pour mix in. Close tank
5. To start the engine, Turn the engine ON. Set the Run/Choke
Control to CHOKE (far right) and the Engine Speed Control
to FAST (to the right) before pulling the starter cord. After
the engine engages, move the Run/Choke control to Run
(towards the left).
6. Set the tank pressure to 12-15 PSI.
7. Connect the air line hose to the air connection from the
compressor to air leader on the spray gun.
8. Connect the liquid line hose from the tank to the liquid
leader on the spray gun.
9. Aim spray gun and engage the trigger; lock trigger if
desired. Spray with even, sweeping strokes.
NOTE: It may take about a few moments for air to clear
the lines before liquid sprays regularly without air bubbles.
To set the tank pressure:
Start engine. Pull the adjustment knob’s black plastic cover to un-
lock it. Turn left (counter-clockwise) to decrease pressure; turn right
(clockwise) to increase pressure. Set the pressure between 12 to 15 PSI
(marked in light green). Push the black plastic cover in to lock the new
setting.

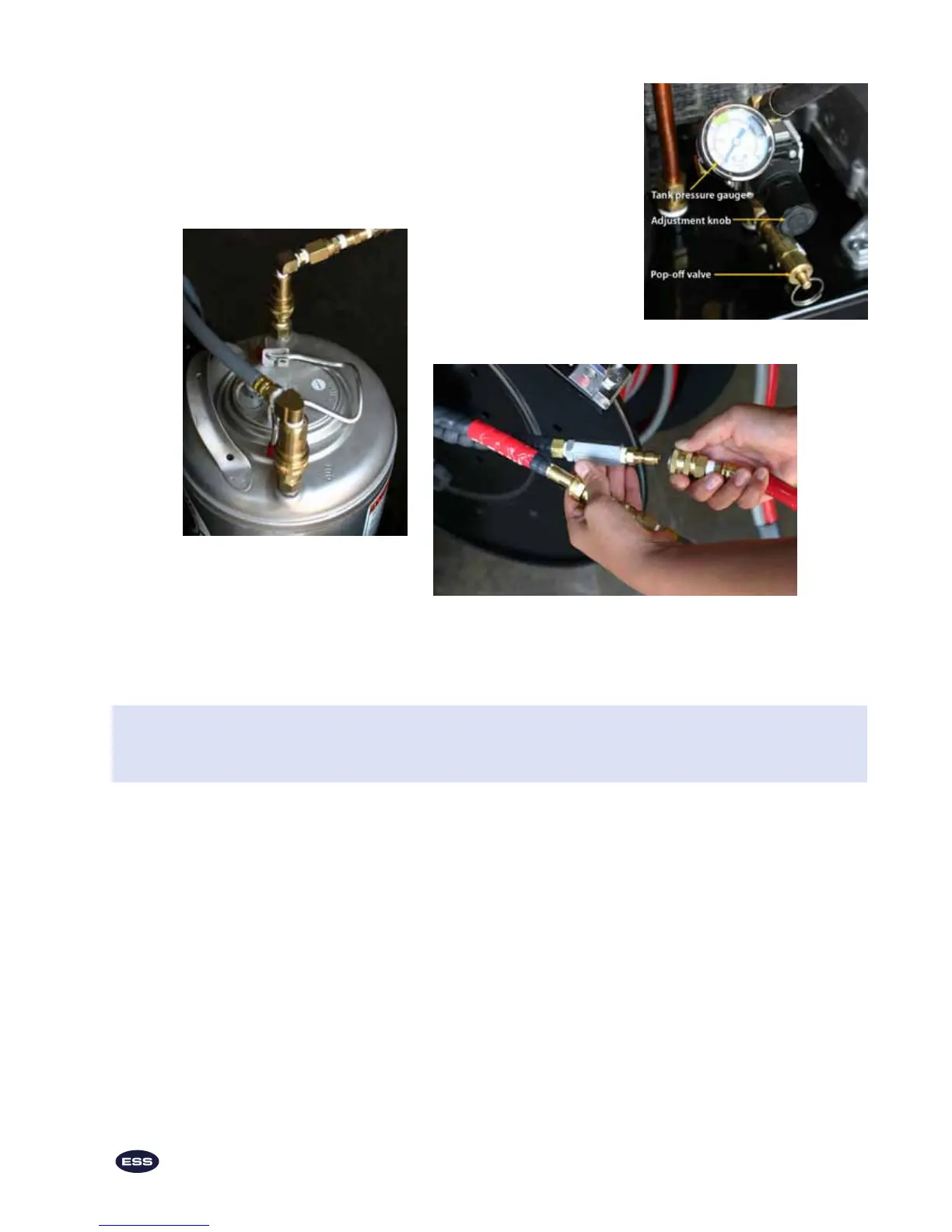

The Tank Quick Connects con-
nect the tank to the incoming
airline and outgoing liquid line.
The Spray Gun Quick Connect Plugs attach to the
Spray Gun Quick Connect Sockets.
