The hose reel contains the twin line hose running from the main unit
to the handgun. Air (red hose) and liquid (gray hose) are plumbed into
the hose reel from the compressor and liquid tank. There is a lter
attached to the liquid inlet on the hose reel. The lter consists of a
strainer, O-ring (installed on cap) , and bowl-shaped cap. Periodically
check and clean this lter to clear any debris that accumulates there.
Replace the O-ring when it become worn.
The cap turns counter-clockwise (to the left) to open and clockwise (to
the right) to close.

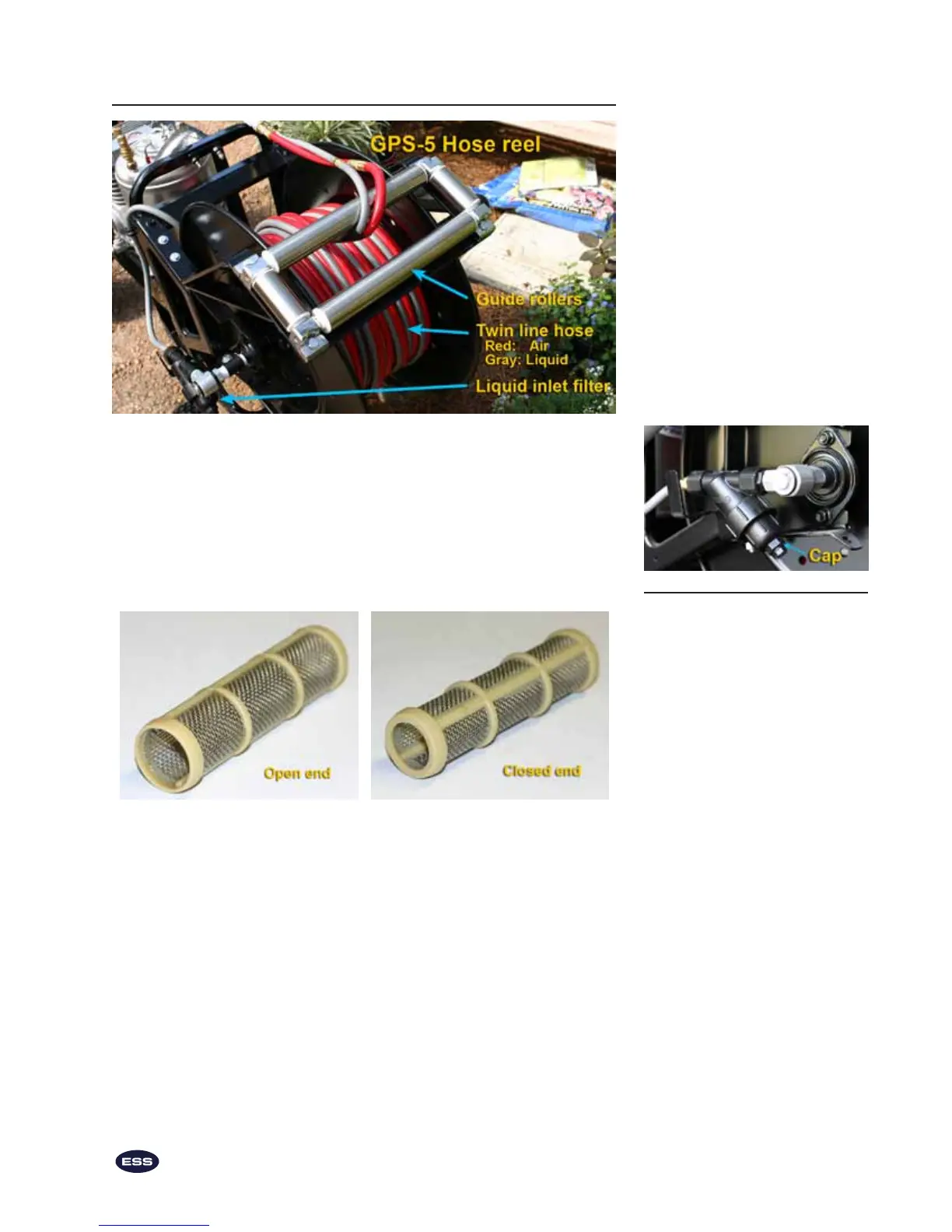

Hose reel and liquid inlet filter
Liquid inlet lter
How to tell the cap end of the strainer
It’s important to replace the strainer in the correct direction. Carefully
examine the ends of the strainer. If you can see the terminus of the inte-
rior plastic ribs, that’s the “open” end. If there is a smooth plastic ring, that
is the “closed” end. Place the closed end into the lter cap (Remember:
CLOSED to CAP).
