52

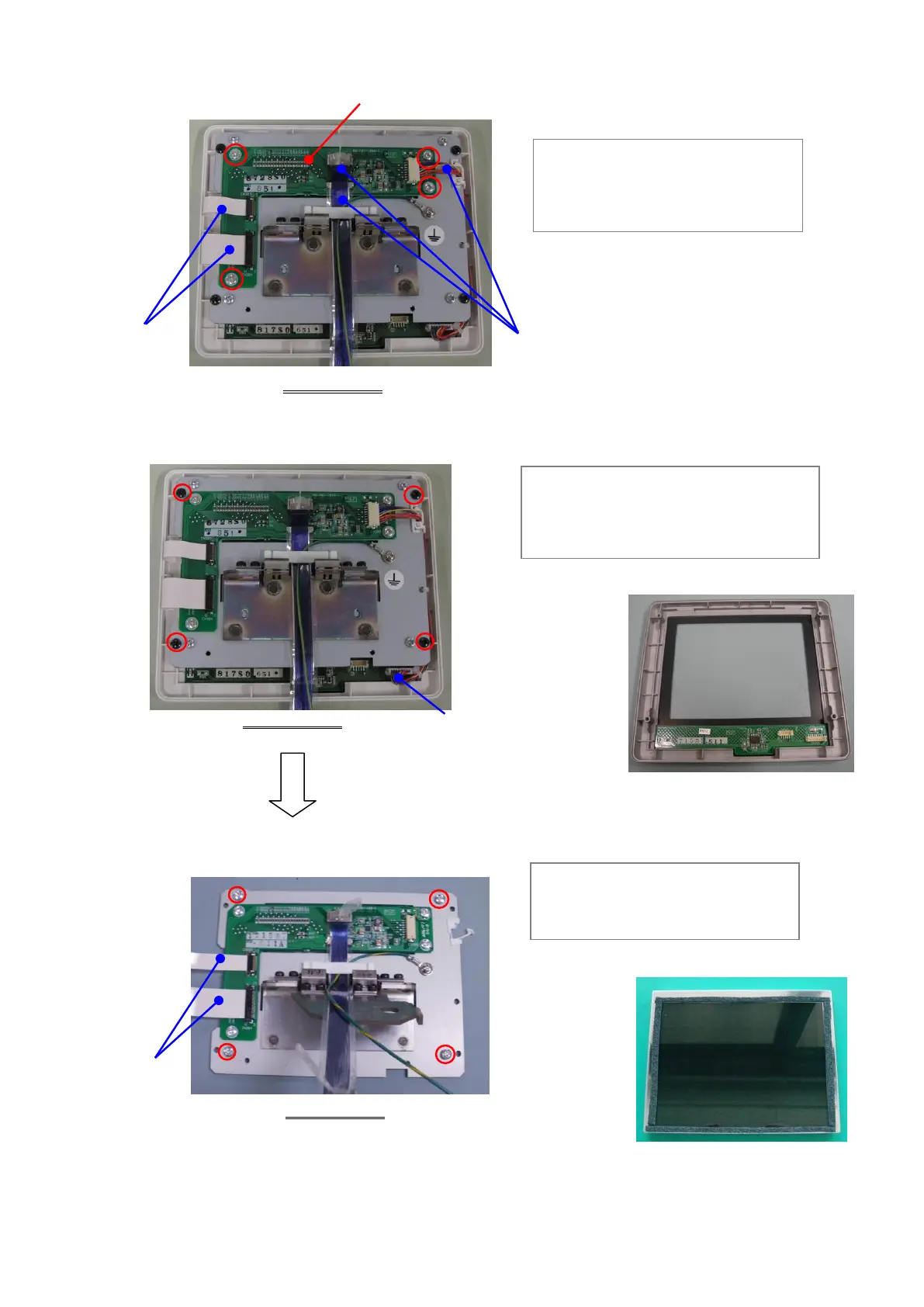

Replacement of LCD relay board
Replacement of LCD cover unit
Replacement of LCD unit
From the condition:
5) Remove 5 connected harnesses
and 4 fixation screws, and then
replace the LCD relay board.
Condition
Harness
Harness
LCD relay board
From the condition:
6) Remove 1 connected harness and 4
fixation screws, and then replace
the LCD cover unit. (Condition )
Condition
Harness
LCD cover unit
For assembling, follow the reverse procedures.
7) Remove 2 connected harnesses
and 4 fixation screws, and then
replace the LCD unit.
Harness
LCD unit
Condition
