EST SFS1-CPU - Network Data Riser Wiring; Class B Digital Audio Riser Wiring

4 / 8 P/N 3101773-EN • REV 04 • ISS 05AUG13

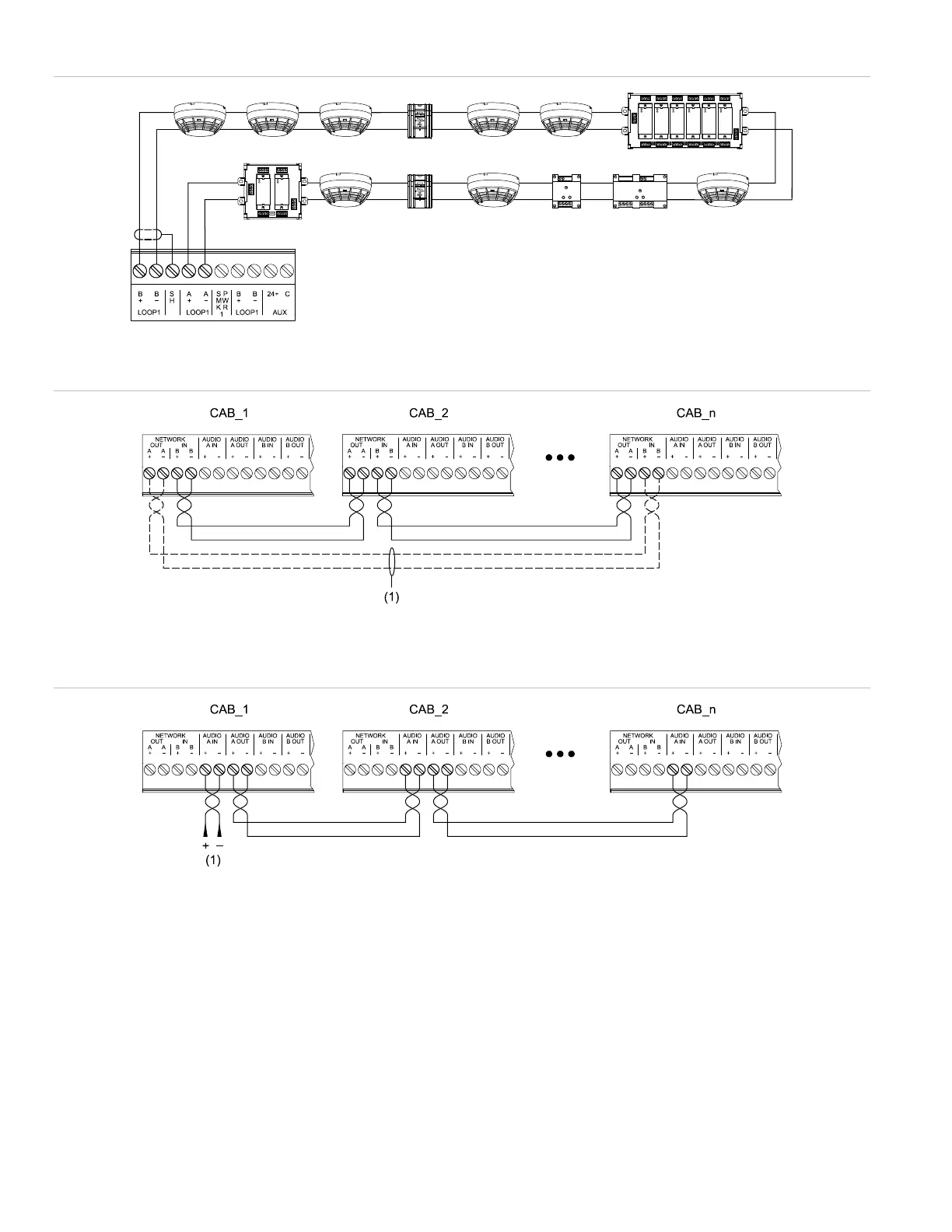

Figure 4: Class A SLC wiring (TB1/TB2)
Figure 5: Network data riser wiring (TB5)
(1) Class A only
Figure 6: Class B digital audio riser wiring (TB5)
(1) Primary 3X-PMI audio data
