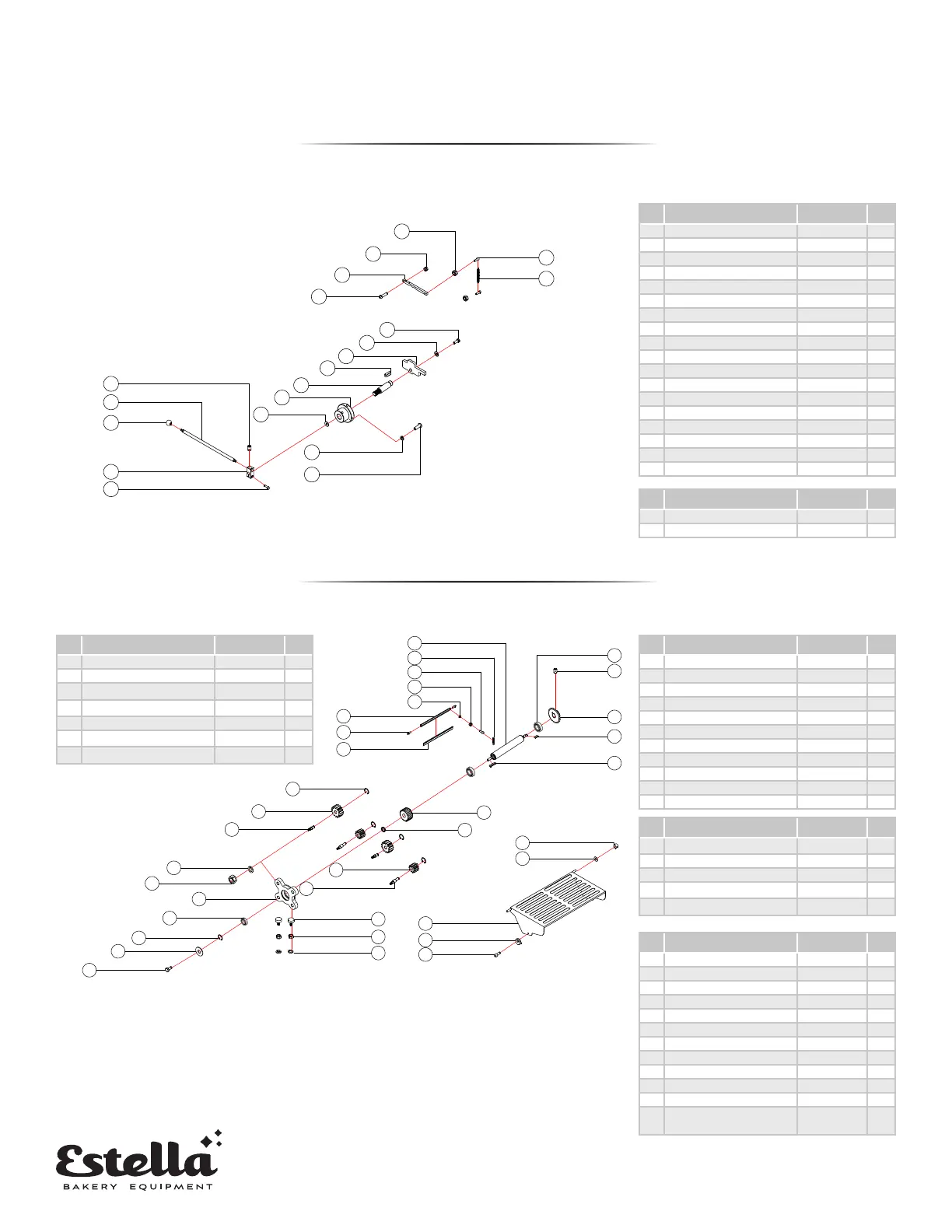

Estella 348DSC67 - Page 11

10.
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
145
146
:
:
:
:
:
:
SECTION NAME
DRW No.
Designer
Check
Review
Scale
Date
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
DESCRIPTION
VERSION DESRIPTION
DATE
1st Drawing 2019/05/19A
B
C
D
E
F
DES IGNER
PRODUCT NAME
TABLE TOP
DOUGH SHEETER
TT-D18A
TT-D18B
DIRECTION
HANDLE
ASSEMBLY
DIRECTION HANDLE
ASSEMBLY
DIRECTION HANDLE ASSEMBLY
No Description Code Qty
120 M5 nut 1
121 M8 hat 1
122 Cam strip TT520150 1
123 Hexagon pan head screws M8x35L 1
124 M6x6 set screw 1
125 Adjustment lever TT520370 1
126 plastic ball TT520320 1
127 Left and right adjustment seat TT520360 1
128 Socket head bolt M8x30L 1
129 Hexagon pan head screws M8x20L 1
130 8 spring pad 1
131 16 large at pads 1
132 Fixed seat TT520070 1
133 axis TT520140 1
134 A type 6x6x12 at key 1
135 Adjustment lm TT520080 1
136 8 at pad 1
137 Hex bolts M8x20L 1
No Description Code Qty
145 Tension spring 1.4x11x88 1
146 Socket head bolt M5x20L 1
138
139
140
141
142
143
144
147
148
149
150
151
152
153
154
155
156
157
162
163
164
165
166
174
173
175
176
177
178
179
180
181
182
183
184
:
:
:
:
:
:
SECTI ON NAME
DRW No.
Designer
Check
Review
Scale
Date
BOTTOM
ROLLER
ASSEMBLY
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
DESCRIPTION
VERSION DESRIPTION
DATE
1st Drawing 2019/05/19A
B
C
D
E
F
DES IGNER
PRODUCT NAME
TABLE TOP
DOUGH SHEETER
TT-D18A
TT-D18B
No Description Code Qty
138 Hex bolts M10x20L 1
139 10 at pad 1
140 52 hole circlip 1
141 6005 bearing 1
142 Adjustment block TT520090 1
143 M10 nut 1
144 10 spring pad 1
No Description Code Qty
147 Plastic gear shaft (top) TT520230 1
148 Gear M3 15T TT520250 1
149 13 Retaining ring 1
150 Upper blade TT520670 1
151 Positioning pin TT52066-2 1
152 Upper knife cover TT520660 1
153 6 spring pad 1
154 M6 nut 1
155 Cross pan head bolt M6x30L 1
156 Tension spring 1.6x12x43 1
157 Roller (below) TT520430 1
BOTTOM ROLLER ASSEMBLY
No Description Code Qty
162 6206 bearing 1
163 Set screw M8x12L 1
164 Sprocket 1
165 C type 6x6x25 at key 1
166 A type 6x6x35 at key 1
No Description Code Qty
173 Gear M3 24T TT520270 1
174 Washer 6mm TT520770 1
175 Gear M3 10T TT520260 1
176 Plastic gear shaft (below) TT520240 1
177 Plastic head screw M8x37L 1
178 M8 nut 1
179 8 spring pad 1
180 Micro switch sleeve TT520760 1
181 10 at pad 1
182 Protection net TT520740 1
183 Protection net rubber wheel TT520750 1
184
Hexagon socket head cap
screws
M6x15L 1
COUNTERTOP MODEL
PARTS DIAGRAMS
