Estella 348DSC67 - Page 12

11.
FLOOR MODEL
PARTS DIAGRAMS

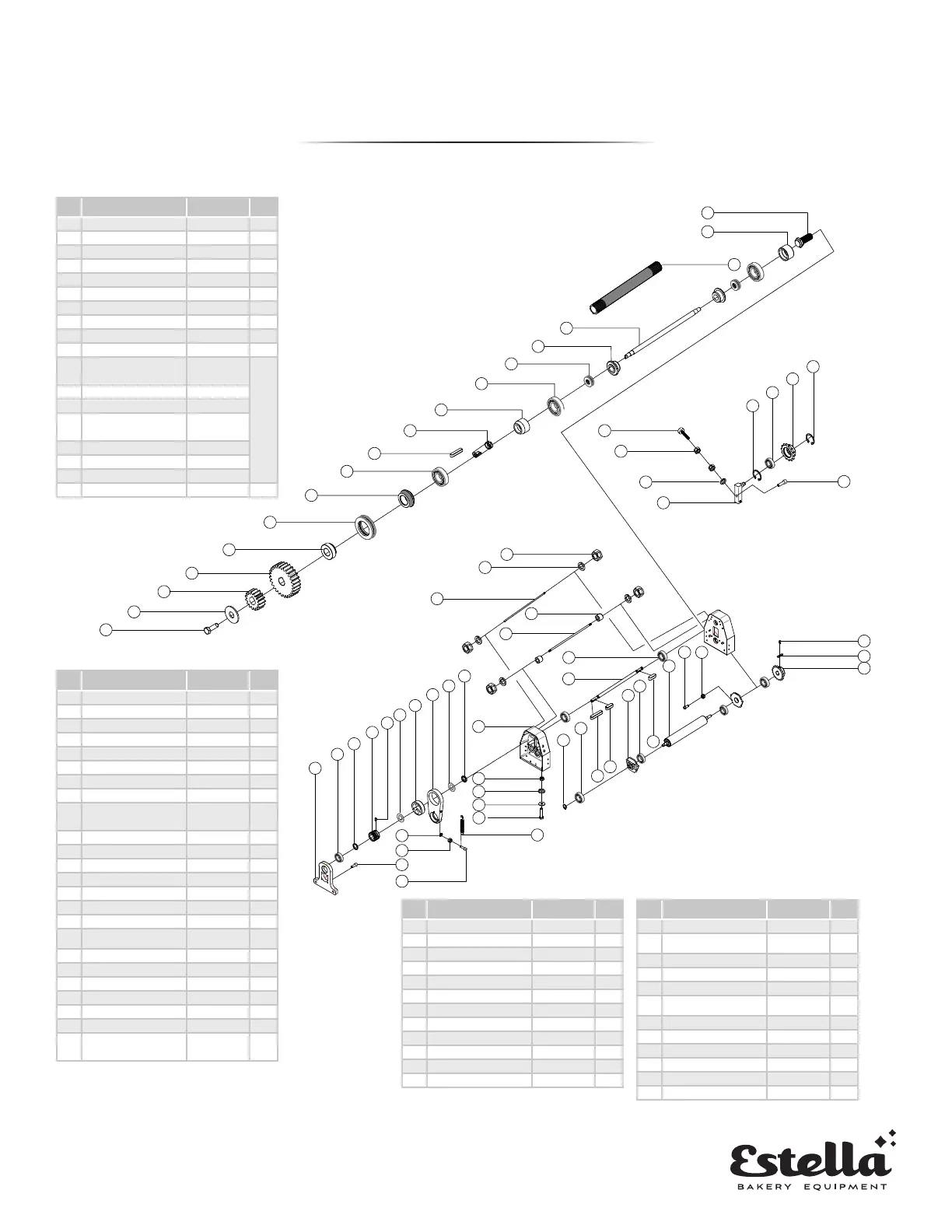

LEFT ROLLER ASSEMBLY AND TOP ROLLER ASSEMBLY
No Description Code Qty
1 Hexagon screw M8x20L 1
2 8 at pad 1
3 Gear 15T TT520290 1
4 Gear 27T TT520280 1
5 Gasket TT520300 1
6 51108 Thrust Bearing 1
7 Bearing sleeve TT520320 1
8 6004 bearing 1
9 C type 5x5x30L at key 1
10 axis TT520310 1
11
Conveyor wheel
bearing sleeve
TT520410
1 Set
12 6003 bearing
13 51103 Thrust Bearing
14
Aluminum blocks on
both sides of the roller
15 Roller shaft
16 Belt roller TT520420
17 Bearing sleeve TT520470
18 Adjusting bolt M20x50*2 1
28
29
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
18
30
31
32
42
41
40
39
38
37
36
35
34
33
17
74
76
75
73
77
81
80
79
78
82
83
84
112113
114
116
117
120
121
119
118
115
105
104
103
19
20
21
23
24
25
26
22
27
:
:
:
:
:
:
SECTION NAME
DRW No.
Designer
Check
Review
Scale
Date
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
DESCRIPTION
VERSION DESRIPTION
DATE
1st Drawing 2019/05/19A
B
C
D
E
F
DES IGNER
PRODUCT NAME
LEFT ROLLER
ASSEMBLY
AND
TOP ROLLER
ASSEMBLY
FLOOR TYPE
DOUGH SHEETER
TT-D19A-1
TT-D19B-1
LEFT ROLLER ASSEMBLY
AND
TOP ROLLER
ASSEMBLY
No Description Code Qty
19 Plastic head screw M10x78x30 1
20 M10 nut 1
21 10 spring pad 1
22 Fixed shaft TT450920 1
23 35 hole circlip 1
24 6202 bearing 1
25 Sprocket TT520930 1
26 15 axis circlip 1
27
Hexagon socket head
cap screws
M10x40L 1
28 M10 nut 1
29 10 spring pad 1
30 10x596 dental rod 1
31 Rubber sleeve TT520720 1
32 Fixed rod TT520710 1
33 Washer 6mm TT520770 1
34 Flat pad 3mm 1
35
Wheel adjustment
block
TT520100 1
36 Eccentric block TT520210 1
37 Flat pad 3mm 1
38 Set screw M8x12L 1
39 Brake gear TT520870 1
40 Washer 3mm TT520770-1 1
41 6005 bearing 1
42
Brake bearing xing
seat
TT521820 1
No Description Code Qty
73 Socket head bolt M8x30L 1
74 Socket head bolt M6x16L 1
75 M8 nut 1
76 8 spring pad 1
77 Tension spring 1.6x16x76.8 1
78 Hex bolts M12x50L 1
79 12 Flat pad 1
80 12 spring pad 1
81 M12 nut 1
82 Arm TT520010 1
83 Axis TT520450 1
84 6205 bearing 1
No Description Code Qty
112 M5 nut
113
Hexagon pan head
screws
114 Roller (top)
115 A type 6x6x18 at key
116 6205 bearing
117
Wheel adjustment
block
118 A type 6x6x18 at key
119 C type 6x6x30 at key
120 6205 bearing
121 ￠ 20 axis circlip
109 6205 bearing 1
110 20 axis circlip 1
