12.

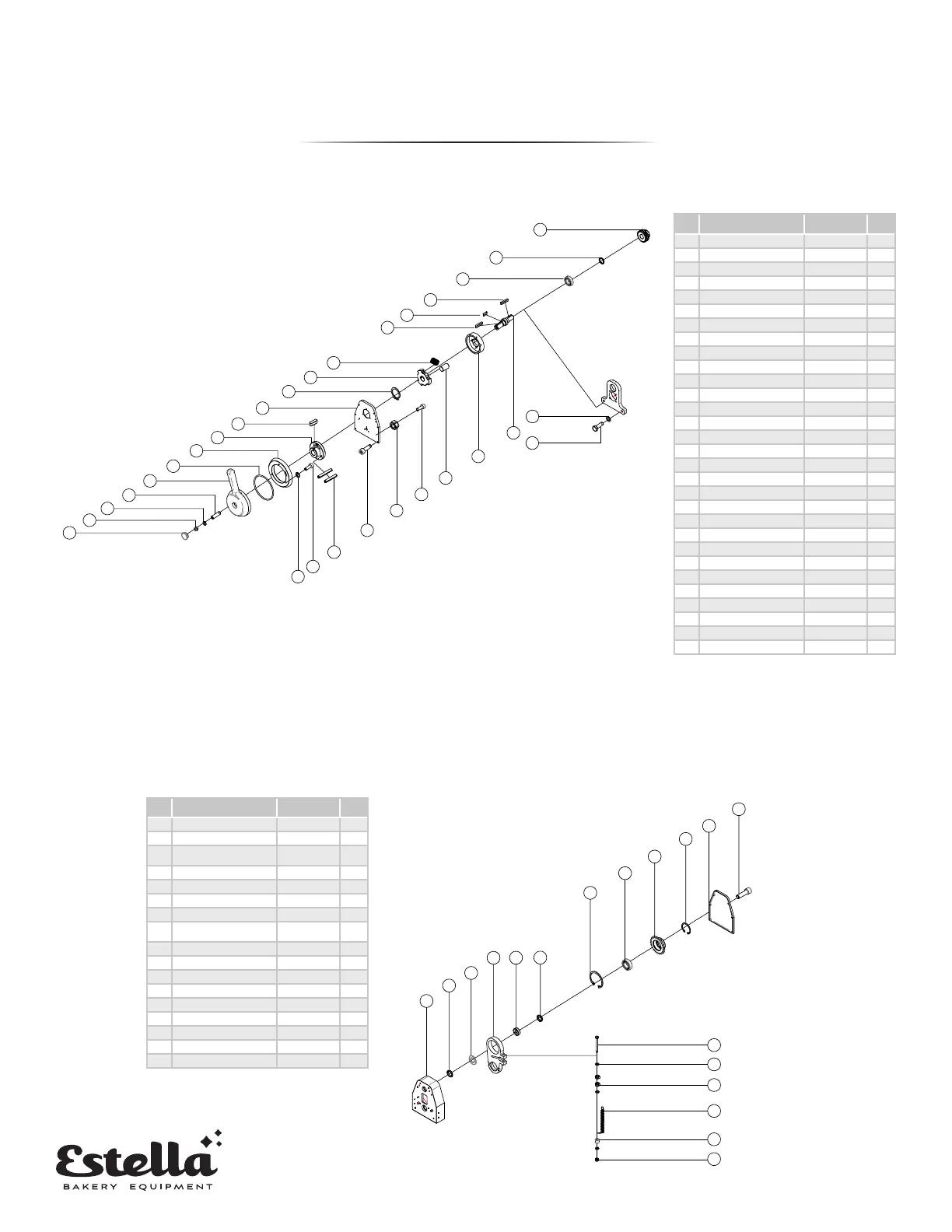

STARTER LEVER AND THICKNESS ASSEMBLY
FLOOR MODEL
PARTS DIAGRAMS
44
43
45
46
47
48
70
49
50
68
69
51
52
53
55
56
57
58
59
60
61
54
67
66
65
64
63
62
71
72
:
:
:
:
:
:
SECTION NAME
DRW No.
Designer
Check
Review
Scale
Date
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
DESCRIPTION
VERSION DESRIPTION
DATE
1st Drawing 2019/05/19A
B
C
D
E
F
DES IGNER
PRODUCT NAME
START LEVER
AND THICKNESS
ASSEMBLY
FLOOR TYPE
DOUGH SHEETER
TT-D19A-1
TT-D19B-1
START LEVER
AND THICKNESS
ASSEMBLY
No Description Code Qty
43 Brake gear TT521880 1
44 washer 22x32x3mm 1
45 6005 bearing 1
46 C type 6xx6x30 at key 1
47 A type 6x6x12 at key 1
48 A type 6x6x35 at key 1
49 spring 0.9x9x14 1
50 brake TT521840 1
51 24 axis circlip 1
52 Cover TT520030 1
53 A type 6x6x18 at key 1
54 Brake rotating disc TT521850 1
55 Fixed dial TT521910 1
56 Sealing ring TT521920 1
57 handle TT520050 1
58 Headless screw M10x35L 1
59 10 at pad 1
60 M10 hat 1
61 HP-25 button plug 1
62 5 spring pad 1
63 Socket head bolt M5x15L 1
64 5x30 cotter pin 1
65 Socket head bolt M6x20L 1
66 M6 nut 1
67 Socket head bolt M6x15L 1
68 Brake cylinder TT521890 1
69 Brake xing seat TT521830 1
70 Rotary shaft of brake TT520101 1
71 Hex bolts M10x30L 1
72 10 spring pad 1
RIGHT ROLLER ASSEMBLY
No Description Code Qty
85 Washer 6mm TT520770 1
86 Flat pad 3mm 1
87
Wheel adjustment
block
TT520101 1
88 Eccentric block TT520210 1
89 Washer 6mm 520770 1
90 52 hole circlip 1
91 6205 bearing 1
92
Adjusting shaft
sprocket M3 21T
TT520500 1
93 25 axis circlip 1
94 Cover TT520040 1
95 Socket head bolt M6x20L 1
96 Hex bolts M8x80L 1
97 8 spring pad
98 M8 nut
99 Tension spring 1.6x16x64
100 8 spring pad
101 M8 hat
85
86
87 88
89
90
91
92
93
94
95
96
97
98
99
101
100
238
:
:
:
:
:
:
SECTION NAME
DRW No.
Designer
Check
Review
Scale
Date
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
DESCRIPTION
VERSION DESRIPTION
DATE
1st Drawing 2019/05/19A
B
C
D
E
F
DES IGNER
PRODUCT NAME
RIGHT ROLLER
ASSEMBLY
FLOOR TYPE
DOUGH SHEETER
TT-D19A-1
TT-D19B-1
RIGHT ROLLER
ASSEMBLY
