Estella 348DSC67 - Page 17

16.

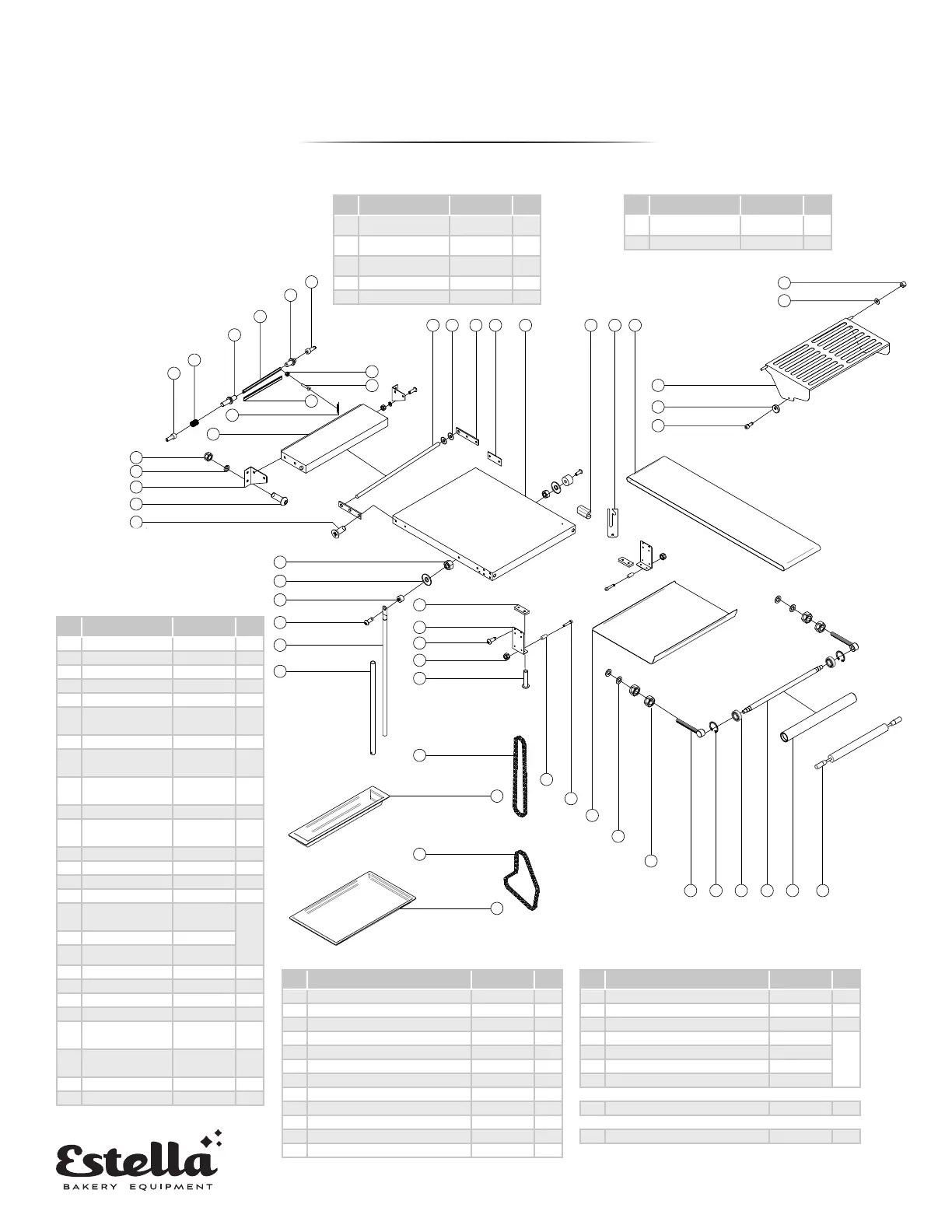

CONVEYOR ASSEMBLY
FLOOR MODEL
PARTS DIAGRAMS
183
182
181
180
176
175
187
188
179
178
172
171
170
169
168
202
201
200
199
198
203
226
224
223
222
221
220
219
230
231
232
233 234 235 236 237
197 196 195 194 193 192
189
229
228
225
227
239 240
241
186
185
191
190
184
:
:
:
:
:
:
SECTION NAME
DRW No.
Designer
Check
Review
Scale
Date
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
DESCRIPTION
VERSION DESRIPTION
DATE
1st Drawing 2019/05/19A
B
C
D
E
F
DES IGNER
PRODUCT NAME
CONVEY OR
ASSE MBLY
FLOOR TYPE
DOUGH SHEETER
TT-D19A-1
TT-D19B-1
CONVEYOR
ASSEMBLY
No Description Code Qty
168
Cross countersunk
head screws
M10x25L 1
169
Hexagon pan head
screws
M10x25L 1
170
Fixed plate (left and
right)
TT520530 1
171 10 spring pad 1
172 M10 nut 1
No Description Code Qty
175
Hexagon socket
head cap screws
M10x16L 1
176 Compression spring 1.0x10.4x22 1
No Description Code Qty
178 Pallet TT520540 1
179 Tension spring 1.5x10x80 1
180 Positioning pin TT52066-3 1
181 Lower knife cover TT520680 1
182 Positioning pin TT52066-1 1
183
Hexagon socket
head cap screws
M10x16L 1
184 Protection net TT520740 1
185
Protection net
rubber wheel
TT520750 1
186
Hexagon socket
head cap screws
M6x15L 1
187 M6 nut 1
188
Phillips pan head
screws
M6x10L 1
189 Lower blade TT520690 1
190 Micro switch sleeve TT520760 1
191 10 at pad 1
192 conveyor 2160x500 1
193
Bracket plate xing
seat
TT520570-2
1 Set
194 Bracket plate TT520570
195
Support plate
reinforced plate
TT520570-4
196 Connector TT520560 1
197 Fixed rod TT520550-1 1
198 M10 hat 1
199 10 at pad 1
200
Upper movable pole
seat
1
201
Hexagon pan head
screws
M10x40L 1
202 Movable rod TT520640 1
203 Fixed rod TT520630 1
No Description Code Qty
219 Sheng material plate aluminum pad 1
220 Sheng block xed block (left and right) TT520580-1 1
221 Hexagon pan head screws M8x10L 1
222 M8 hat 1
223 Hexagon pan head screws M8x10L 1
224 08A 50HZ / 08A 60HZ 70/68 1
225 Powder tank TT520730 1
226 08A 62 1
227 Powder shield TT520810 1
228 Panel rubber wheel 1
229 Hexagon socket head cap screws M6x30L 1
230 Sheng material board TT520620 1
No Description Code Qty
231 16 at pad 1
232 M16 nut 1
233 Rolling surface xing rod TT520580 1
234 20 axis circlip
1 Set
235 6004 bearing
236 Roller lever TT520610
237 Conveyor belt roller TT520600
239 Gasket TT520790 1
241 Rolling pin 1
