15.
FLOOR MODEL
PARTS DIAGRAMS

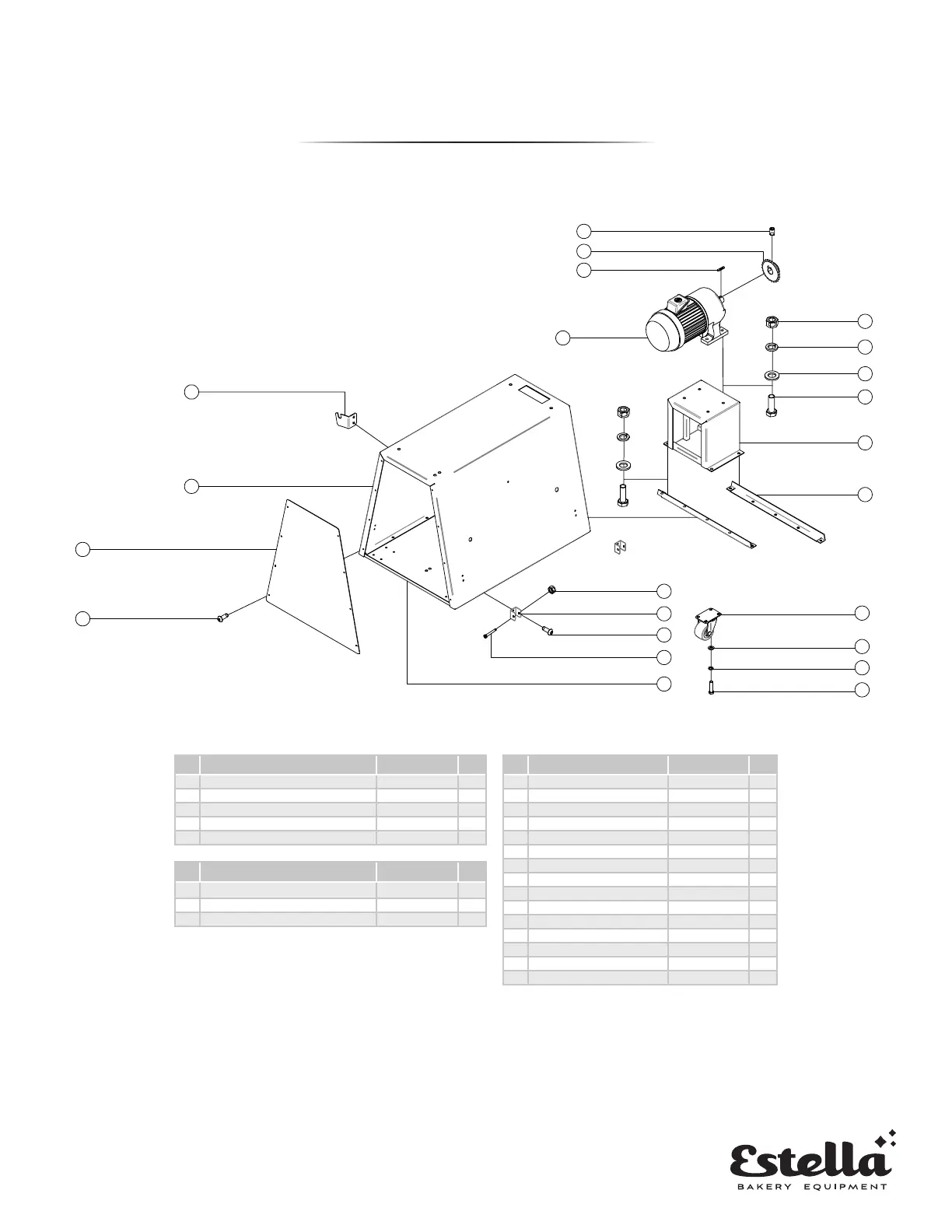

UPPER BODY MACHINE ASSEMBLY
158
157
155
156
159
163
164
165
214
215
216
217
210
211
212
213
204
205
206
207
208
209
218
:
:
:
:
:
:
SECTION NAME
DRW No.
Designer
Check
Review
Scale
Date
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
DESCRIPTION
VERSION DESRIPTION
DATE
1st Drawing 2019/05/19A
B
C
D
E
F
DESIGNER
PRODUCT NAME
UPPER
MACHINE
BODY
ASSEMBLY
FLOOR TYPE
DOUGH SHEETER
TT-D19A-1
TT-D19B-1
UPPER MACHINE
BODY ASSEMBLY
No Description Code
Qty
155 Cover TT520130 1
156 Phillips pan head screws M6x10L 1
157 Base plate TT520120 1
158 Noodle stick xing seat (left and right) TT520120-7 1
159 Motor (380V) GH28-550-17S 1
No Description Code
Qty
163 C type 7x8x30 at key 1
164 Sprocket 24T TT520520 1
165 Set screw M8x12L 1
No Description Code
Qty
204 M12 nut 1
205 ￠ 12 spring pad 1
206 ￠ 12 Flat pad 1
207 Hexagon Screw M12x40L 1
208 Motor mount TT520120-4 1
209 Fixed frame (reinforcement) TT520120-5 1
210 Brake caster 1
211 ￠ 8 at pad 1
212 ￠ 8 spring pad 1
213 Hex bolts M8x35L 1
214 M8 hat 1
215 Support frame TT520120-1 1
216 Phillips pan head screws M6x15L 1
217 Hex bolts M8x60L 1
218 Bottom plate TT520120-3 1
To Next Page
