14.

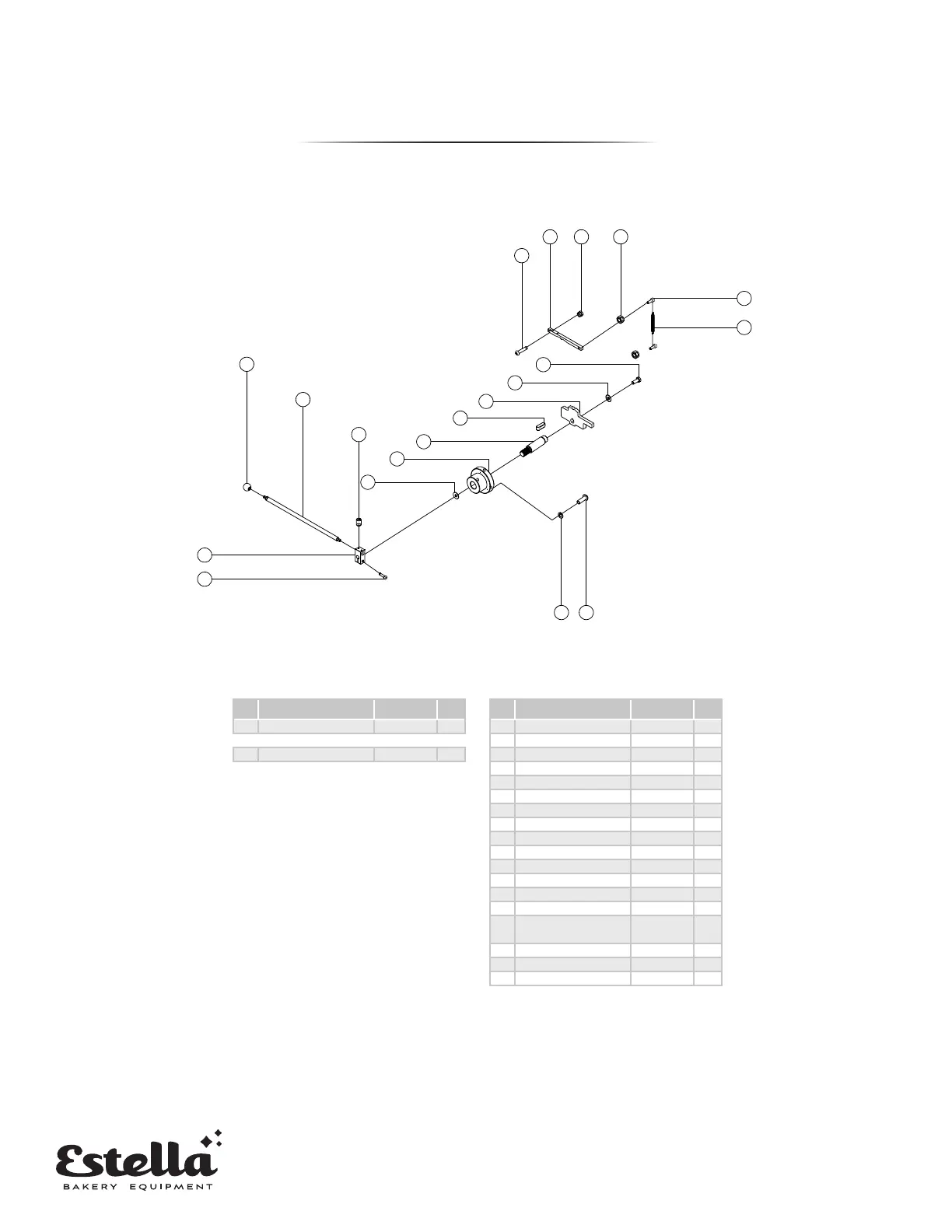

DIRECTION HANDLE ASSEMBLY
FLOOR MODEL
PARTS DIAGRAMS
131
133
137139 138
140
141
142
143
144
145
146
148
149
150
151
152
154153
147
:
:
:
:
:
:
SECTION NAME
DRW No.
Designer
Check
Review
Scale
Date
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
-- --
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
DESCRIPTION
VERSION DESRIPTION
DATE
1st Drawing 2019/05/19A
B
C
D
E
F
DESIGNER
PRODUCT NAME
DIRECTION
HANDLE
ASSEMBLY
FLOOR TYPE
DOUGH SHEETER
TT-D19A-1
TT-D19B-1
DIRECTION HANDLE
ASSEMBLY
No Description Code Qty
131 Socket head bolt M5x20L 1
133 Tension spring 1.4x11x88 1
No Description Code Qty
137 M5 nut 1
138 M8 hat 1
139 Cam strip TT520150 1
140 Hexagon pan head screws M8x35L 1
141 Hex bolts M8x20L 1
142 8 at pad 1
143 Adjustment lm TT520080 1
144 A type 6x6x12 at key 1
145 axis TT520140 1
146 Fixed seat TT520070 1
147 16 large at pads 1
148 M6x6 set screw 1
149 Adjustment lever TT520370 1
150 plastic ball TT520320 1
151
Left and right adjustment
seat
TT520360 1
152 Socket head bolt M8x30L 1
153 ￠ 8 spring pad 1
154 Hexagon pan head screws M8x20L 1
