1.3 Displayer

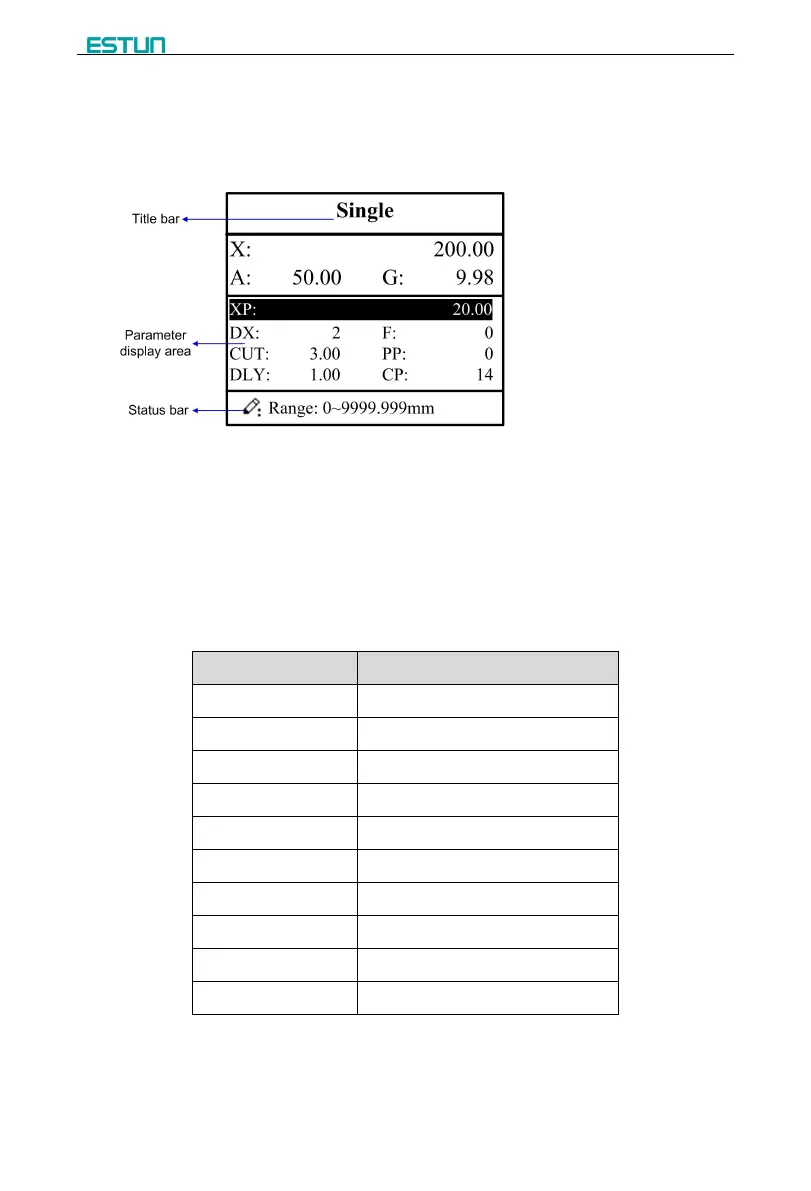

E21S numerical control device adopts 160*160 dot matrix LCD displayer. The display area
is shown in Figure 1-2.
Figure 1-2 Display area

Title bar: display relevant information of current page, such as its name, etc.

Parameter display area: display parameter name, parameter value and system
information.

Status bar: display area of input information and prompt message, etc.
The paraphrases of shortening on this page are as shown in Table 1-2.
Table 1-2 The paraphrases of shortening
Shortening
Description
X
The current backgauge position
A
The current cutting angle
G
The current gap distance
XP
The desired backgauge position
DX
Backgauge retract distance
CUT
Cutting delay
DLY
Retracting delay
F
Function output value
PP
Preset workpiece
CP
Current workpiece
