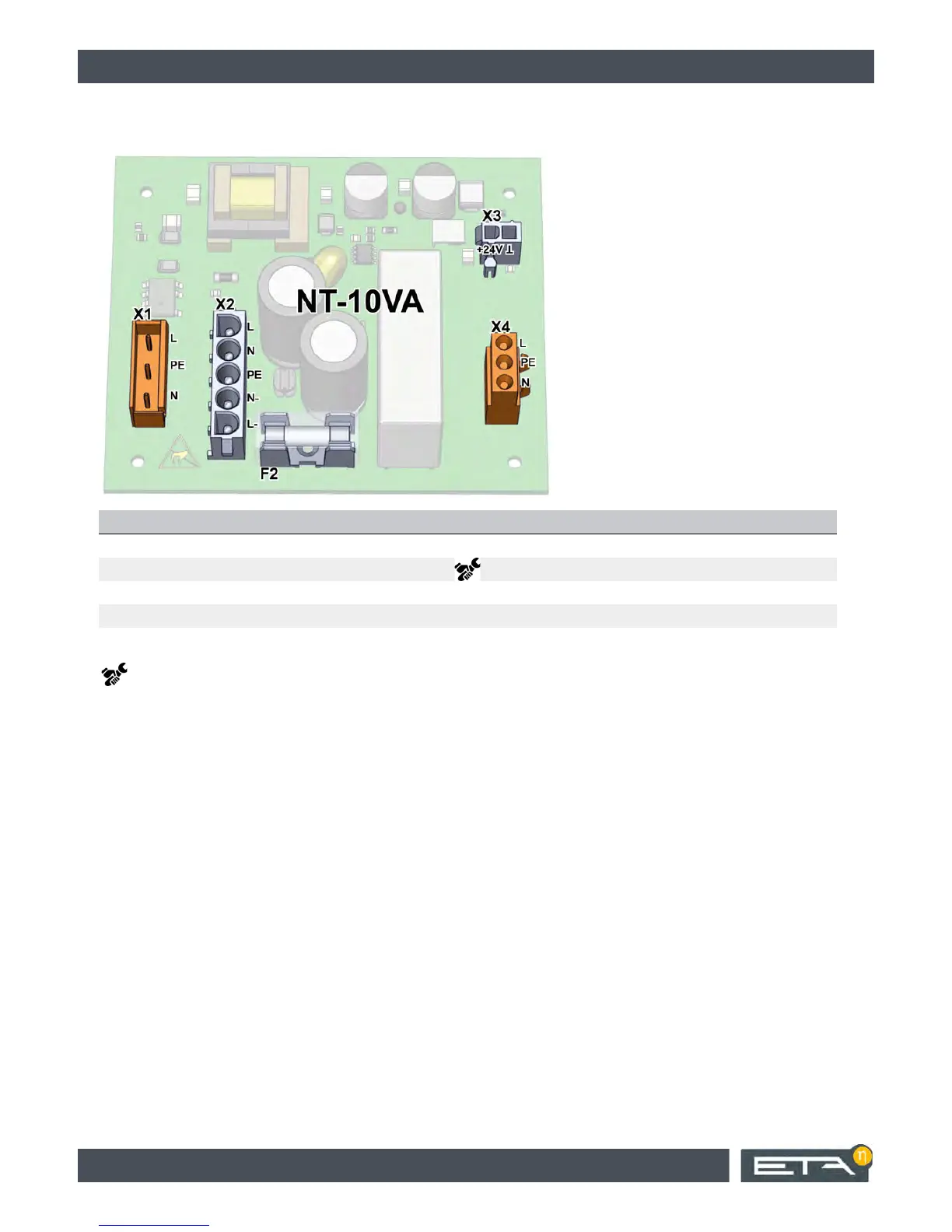

NT-10VA circuit board Electrical connections

6.3 NT-10VA circuit board

Terminal Function Default assignment

F2 Fuse 230 V, T 6,3 A

X1 Supply 230 V Mains power input

X2 230 V input Mains switch

X3 Supply extension 24 V to circuit board [GM-C]: terminal [S512]

X4 Supply extension 230 V to circuit board [GM-C]: terminal [S1]

Terminals marked with this symbol are not pre-wired.
