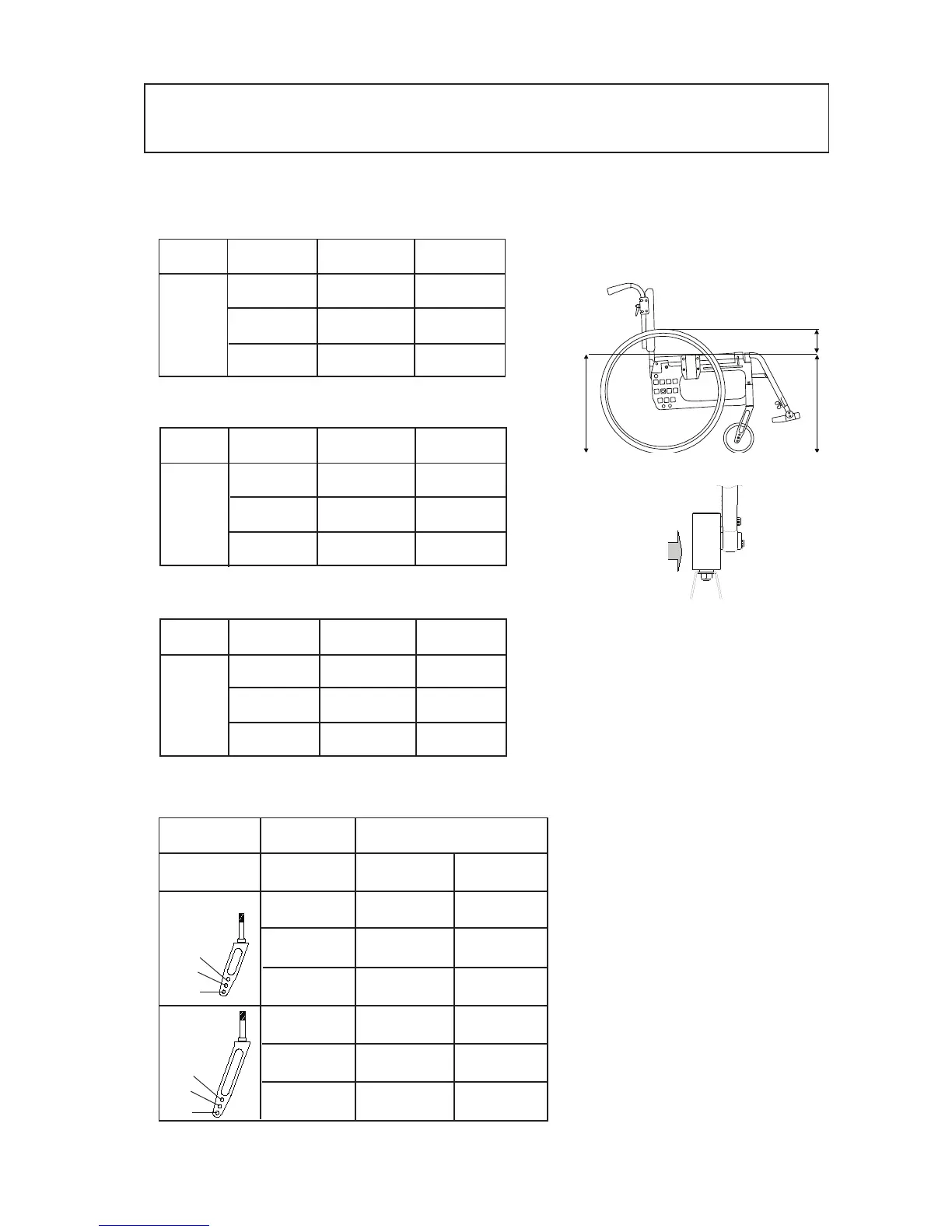

Etac Cross - Alternative Seat Heights and Angles

38
39
For correct installation of front fork attachment: Max. backward inclination 6 cm (9°), max. forward inclination 2 cm (3°).
Rear seat height table (measurements given can vary +/- 2 % depending on tyre type and seat angle).
Front fork attachment is infi-
nitely settable 4 cm in height.
Seat height front
Seat height rear
4321
C
B
A
4 cm
Front seat height table
Cross
Cross
Cross
Distance
rear wheel/seat
14 Alternative seat heights/angles
24"
22"
20"
A 1-3
B 1-4
C 1-4
50 cm
45 cm
41 cm
Rear wheel
in pos.
Distance
rear wheel-seat
Seat height rear
Seat angle 3°
10 cm
14.5 cm
19 cm
Rear wheel
in pos.
Distance
rear wheel-seat
Seat height rear
Seat angle 3°
Rear wheel
in pos.
Distance
rear wheel-seat
Seat height rear
Seat angle 3°
A 1-3
B 1-4
C 1-4
A 1-3
B 1-4
C 1-4
49 cm
44 cm
40 cm
47 cm
42 cm
38 cm
7.5 cm
12 cm
16.5 cm
5 cm
9.5 cm
14 cm
Castor
Fork
Position
S1
S2
S3
M1
M2
M3
5"
38-42 cm
40-44 cm
41-45 cm
43-47 cm
44-48 cm
46-50 cm
6½"
-
41-45 cm
42-46 cm
44-48 cm
45-49 cm
47-51 cm
Short
Medium
2
3
1
2
3
1
