The detachable armrest comes
in two versions, with short or
long armrest guard. The armrest
attachment can be fitted in 2 dif-
ferent heights. In position 1 the
height of the armrest is settable
between 19 and 26 cm, and in
position 2 (standard) between 24
and 31 cm, with 1cm intervals.
Tools: 10 mm
spanner, 5 mm Allen key.
The lock lug is used both to set
the height of the armrest and
secure the side guard:
- Loosen the screw that fastens
the lock lug.
- Slide the guard up or down to
the desired height.
- Refasten the lug on the side
guard.
If necessary the right armrest can
be fitted on the left side and vice-
versa.
Tools: 3 mm Allen key.
Never use the armrests
to lift the wheelchair.

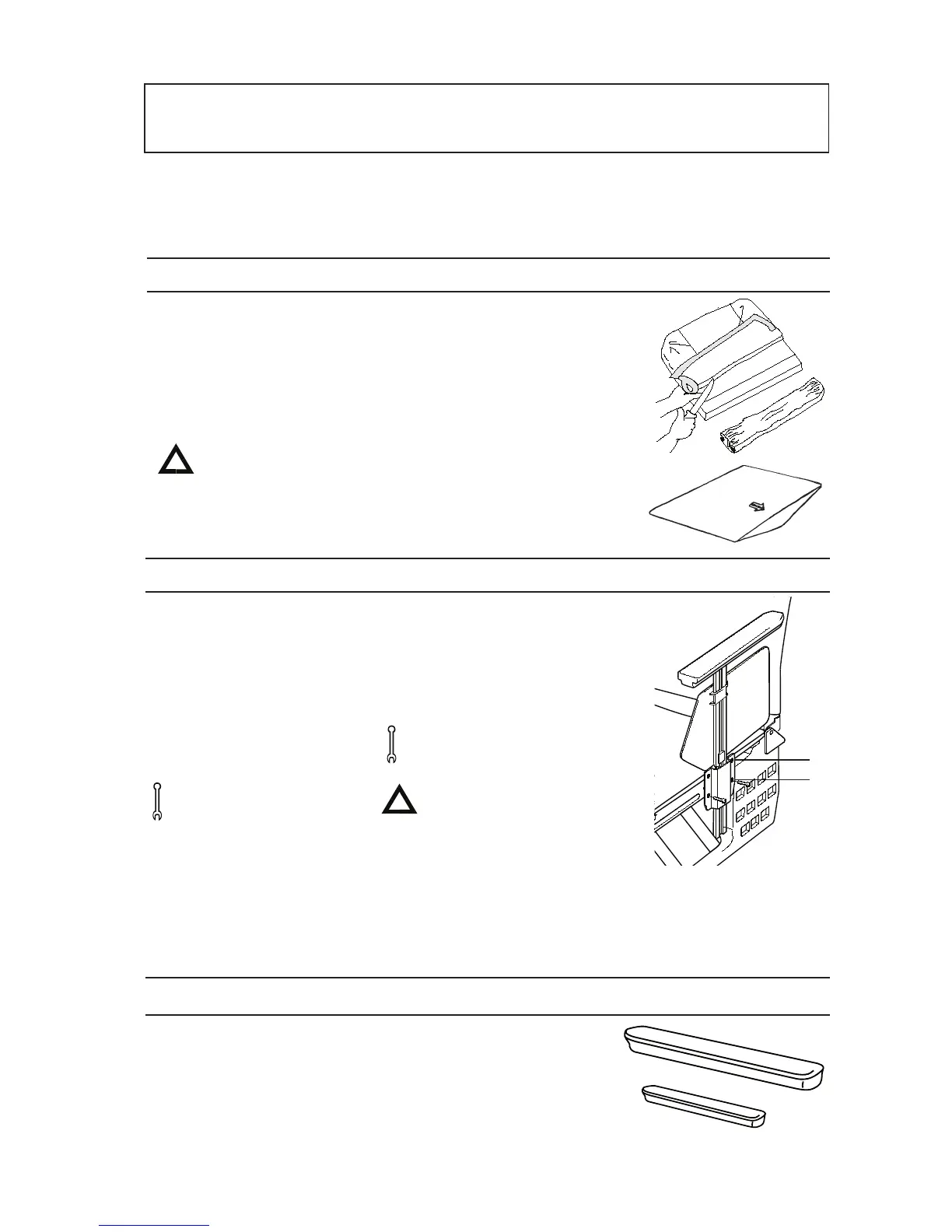

11 Assembly instructions accessories
1
2
Assembly instructions are always
provided with accessories when
they are delivered from Etac.
11:1 Seat cushion and comfort wedge
The cushion is cut to the required
depth at the front or back edge.
When measuring the length,
ensure that the cushion is prop-
erly positioned between the back
tubes with the rounded corners to
the rear.
The cushion is a stand-
ard model and is not
suitable for users with
sitting sores.
11:2 Armrest, detachable, height adjustment
11:3 Padded cover, armrest
The detachable armrests can be
supplemented with a padded or
gel cover. The covers are manu-
factured in dark grey plush, or
alternatively black Dartex, and
they are washable.
A comfort wedge is a useful ac-
cessory for the seat cushion. It
evens out the front edge of the
seat, giving even greater seat
comfort. Place the comfort wedge
in the cushion-cover’s inside pock-
et, under the cushion. The arrow
on the comfort wedge should be
on the top-side pointing forwards.
(!) The padded cover makes the
armrest 1,5-2 cm higher.
(!) With 24" low pressure or solid
tyres in pos. C1, the armrest’s
sideguard does not cover the
front edge of the rear wheel.
Instructions are also available
on our website.
www.etac.com
