34
The belt is to be used
only for positioning
in the wheelchair. It
must not be used as
a substitute for a car
safety belt.
We recommend the
front position. (B)
It counteracts sliding
forward more
effectively.

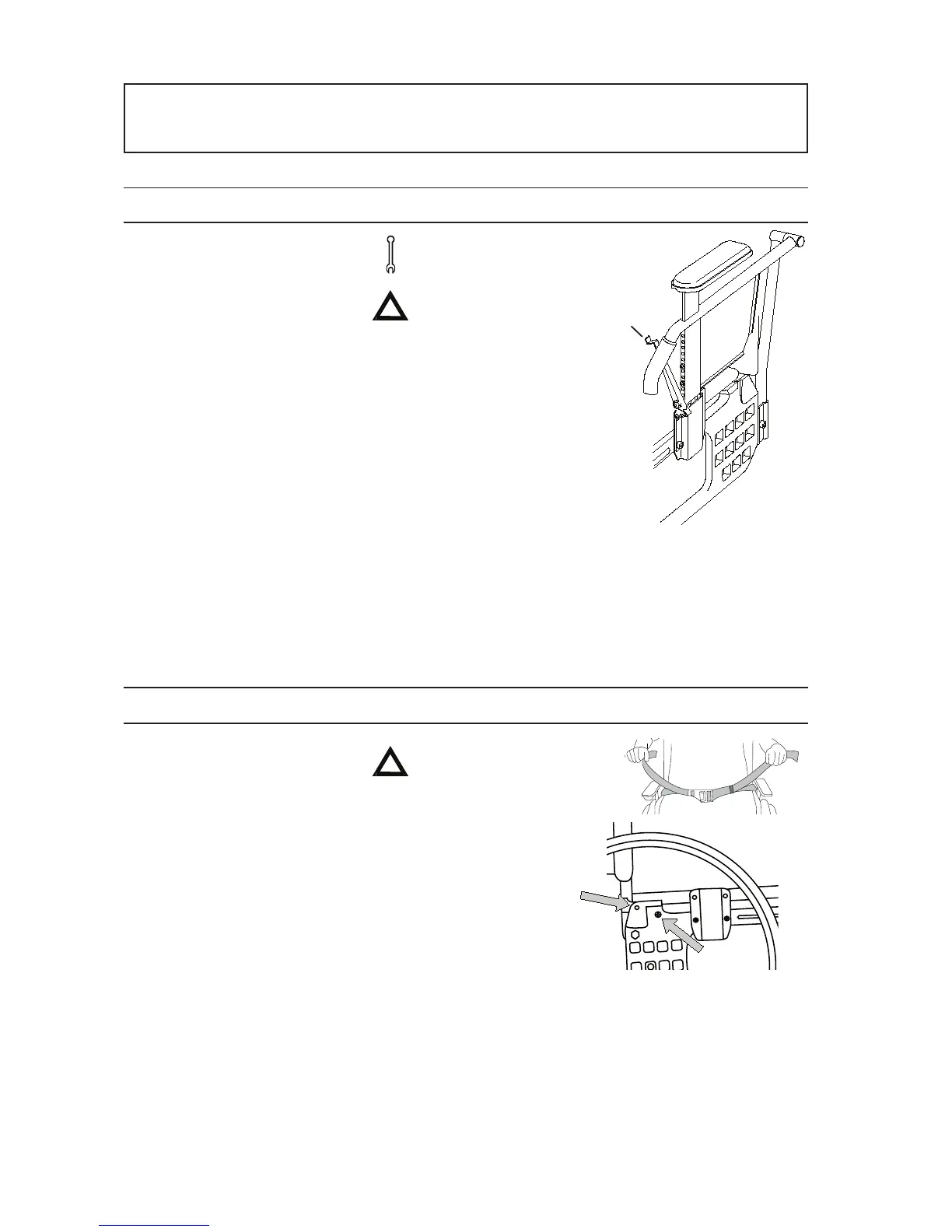

11 Assembly instructions accessories
A
11:4 Armrest, flip-up, height adjustment
The flip-up armrest comes in
two varieties, height adjustable
and fixed. It is mounted onto the
wheelchair’s frame and can be
flipped upwards/backwards by
pressing the red lever (A) inwards.
Mount the armrest according to
the assembly instructions sup-
plied.
The armrest height is settable
between 22 and 30 cm with 1 cm
intervals.
- Push the red lever to one
side and loosen the screws
that fix the armrest bracket
to the frame.
- Slide the armrest up or
down to the desired
height.
- Tighten the screws again.
11:5 Positioning belt
The positioning belt is in two parts,
is adjustable in length and has a
snap-lock. It can be mounted either
in the backrest joint (A) or in the
holes just in front of the backrest
joint (B), above the wheel mounts.
Assembly instructions are supplied
with the belt.
(!) Ensure that the user does
not slide forwards in the
seat as this can lead to the
belt impairing the supply of
blood to the hip/waist area.
Tools: 3 mm Allen key.
Never use the armrests
to lift the wheelchair.
(!) These armrests cannot be
combined with cane holder
or with 24" 22" or 20" rear
wheels in position C.
A
B
