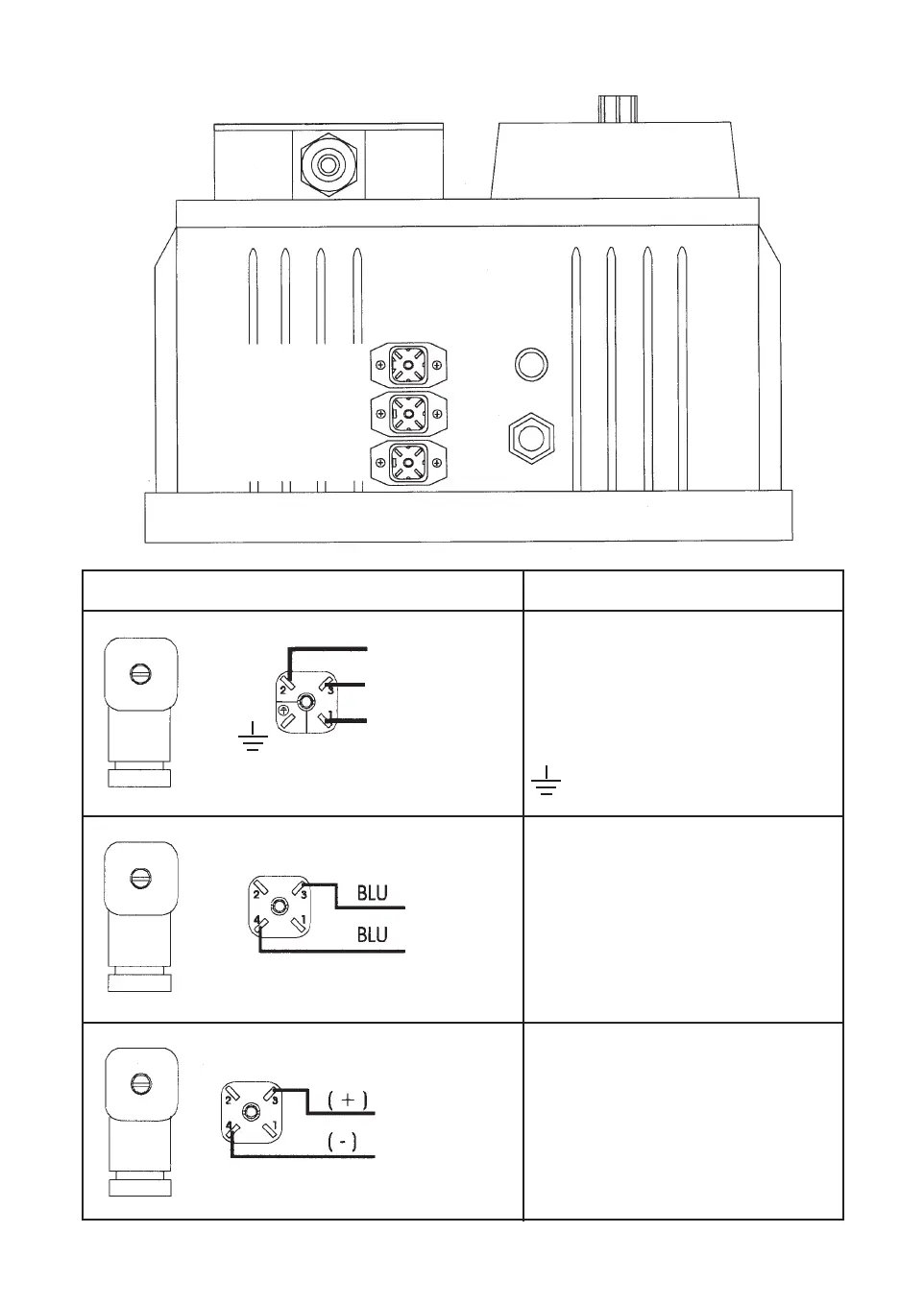

Female service connector wire assembly Functions and technicals information
Level probe connection
Configuration :
Pin 1 = No connection
“ 2 = No connection
“ 3 = Level probe wire
“ 4 = Level probe wire
Output mA signal connection
Configuration :
Pin 1 = No connection
“ 2 = No connetion
“ 3 = ( + ) mA signal wire
“ 4 = ( - ) mA signal wire
Pos. 1
Pos. 2
Pos. 3
to level
probe
output mA
signal
Pos. 1
Pos. 2
Pos. 3
Relay service output connection
Configuration :
Pin 1 = Normally open
“ 2 = Normally closed
“ 3 = Common
4 = No connection
(N.C.)
(N.O.)
Common
