ETATRON D.S. HD-PH - Page 42

ENG
42

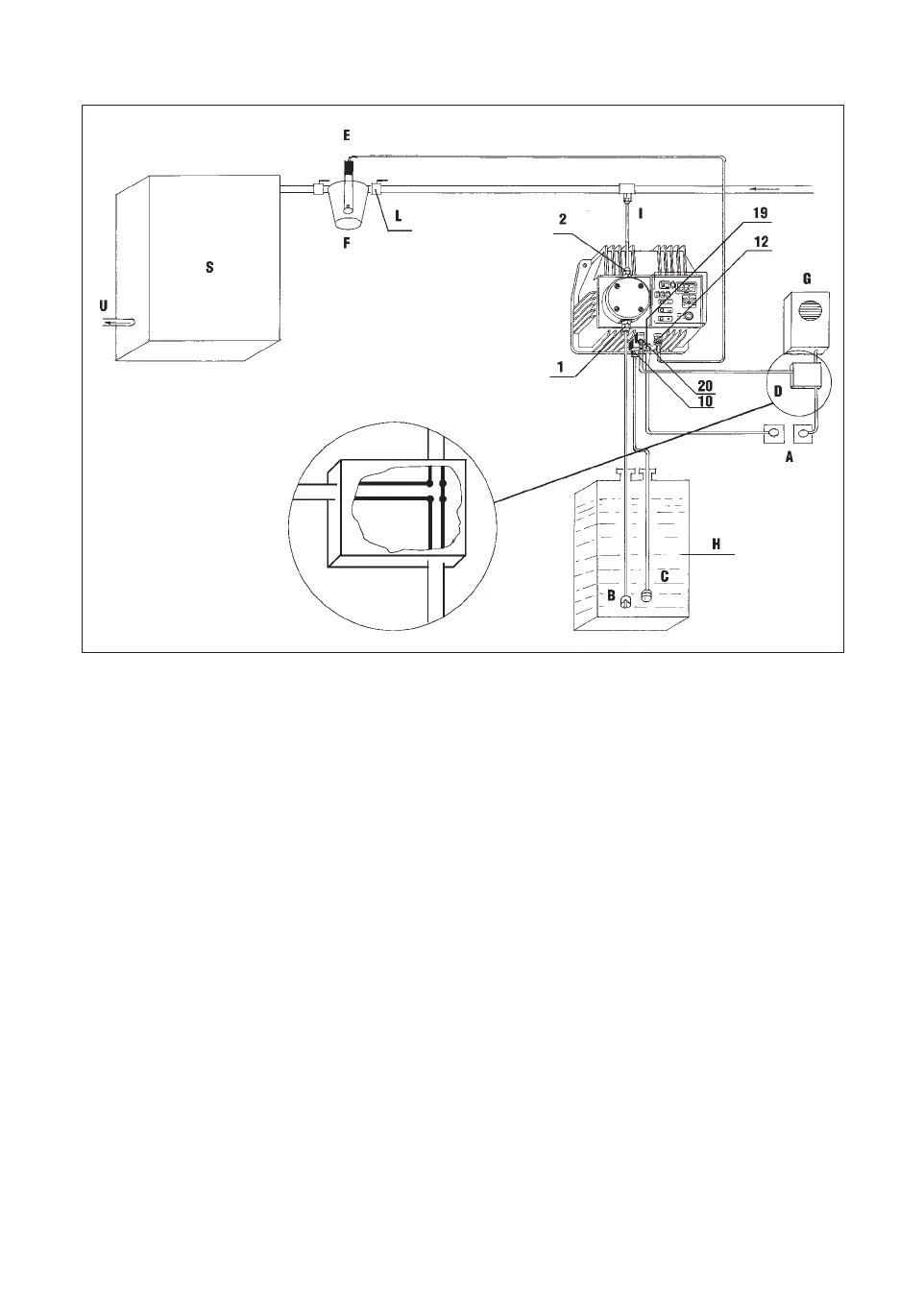

1 Suction hose connection nipple
2 Delivery hose connection nipple
10 Level probe connector
12 Electrode cable connector
19 Supply cable
20 Auxiliary output connector
(see 8.3 par. g)
A Power point
B Filter
C Level probe
D Auxiliary output electric wiring
box
E Electrode
F Electrode holder
GWarning alarm
(optical/sounding)
H Suction tank
I Injection pipe fitting
L Shutoff valve
S Plant tank
T Mixer
U Drainage
fig.13
HD-PH/P
Plant example
