Echoflex Installation Guide
LED Fixture Controller
LED Fixture Controller Page 5 of 8 Echoflex

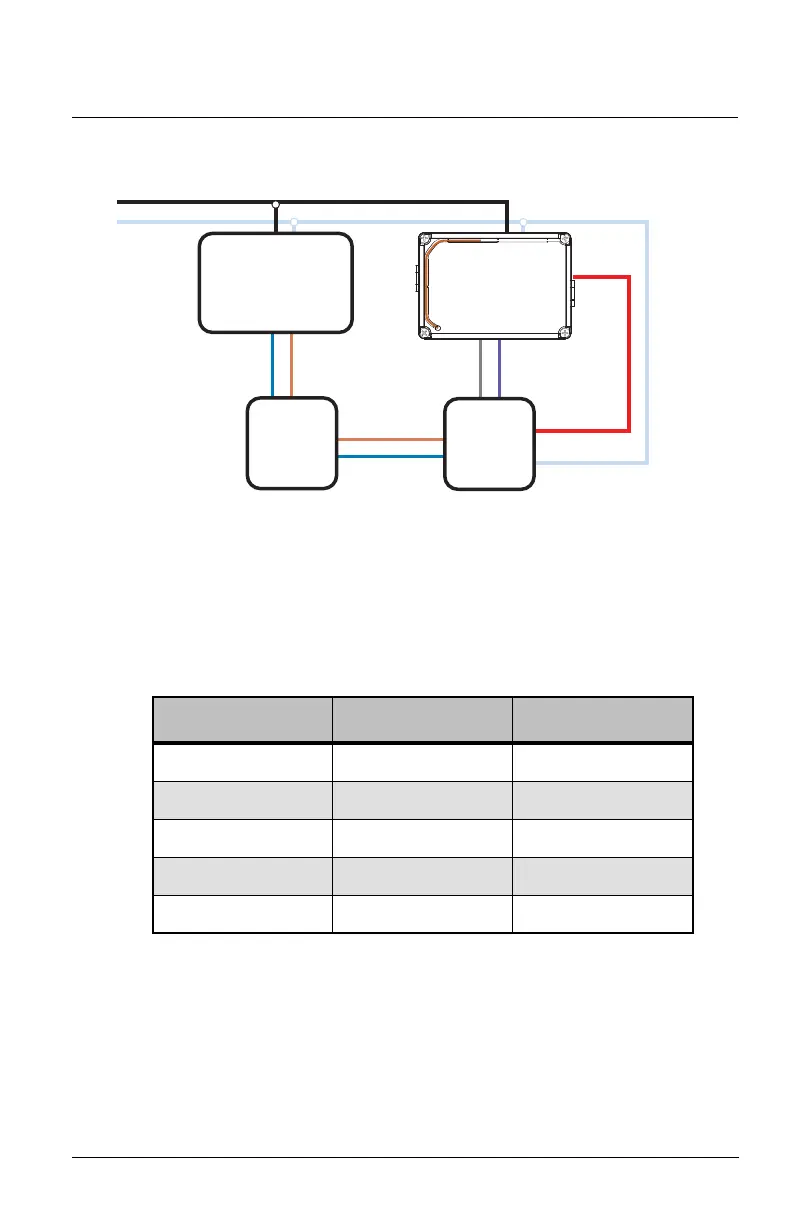

Diagram 2 of 2
Electrical Terminations
Power to the controller is connected between the White (Neutral) and the
Black Line power (120–277 VAC). The Class 1 power limited dimming lines
(violet and gray wires) can be used to provide 0–10 V intensity control of a
dimming ballast or LED driver. The orange wire is an antenna. Do not cut,
cap or connect this wire. Use only UL approved wire when making
connections to the controller (see table below).
Connection Color Specification
Load Red 14 AWG, 600 V
Neutral White 14 AWG, 600 V
Line Black 14 AWG, 600 V
Dimming 0-10 V Violet 18 AWG, 600 V
Dimming GND Gray 18 AWG, 600 V
Normal Hot
Normal Neutral
ELED1
Dimming +Dimming - LED +LED -
LED -
ELED1 Load
Control
Baery
Backup
LED
Emier
Board
LED
Driver
LED +
LED Driver Hot
