5
6
7
8
9
10
11
12
13
14
19
21
22
23
24
25
15
16
17
18
20
26
11

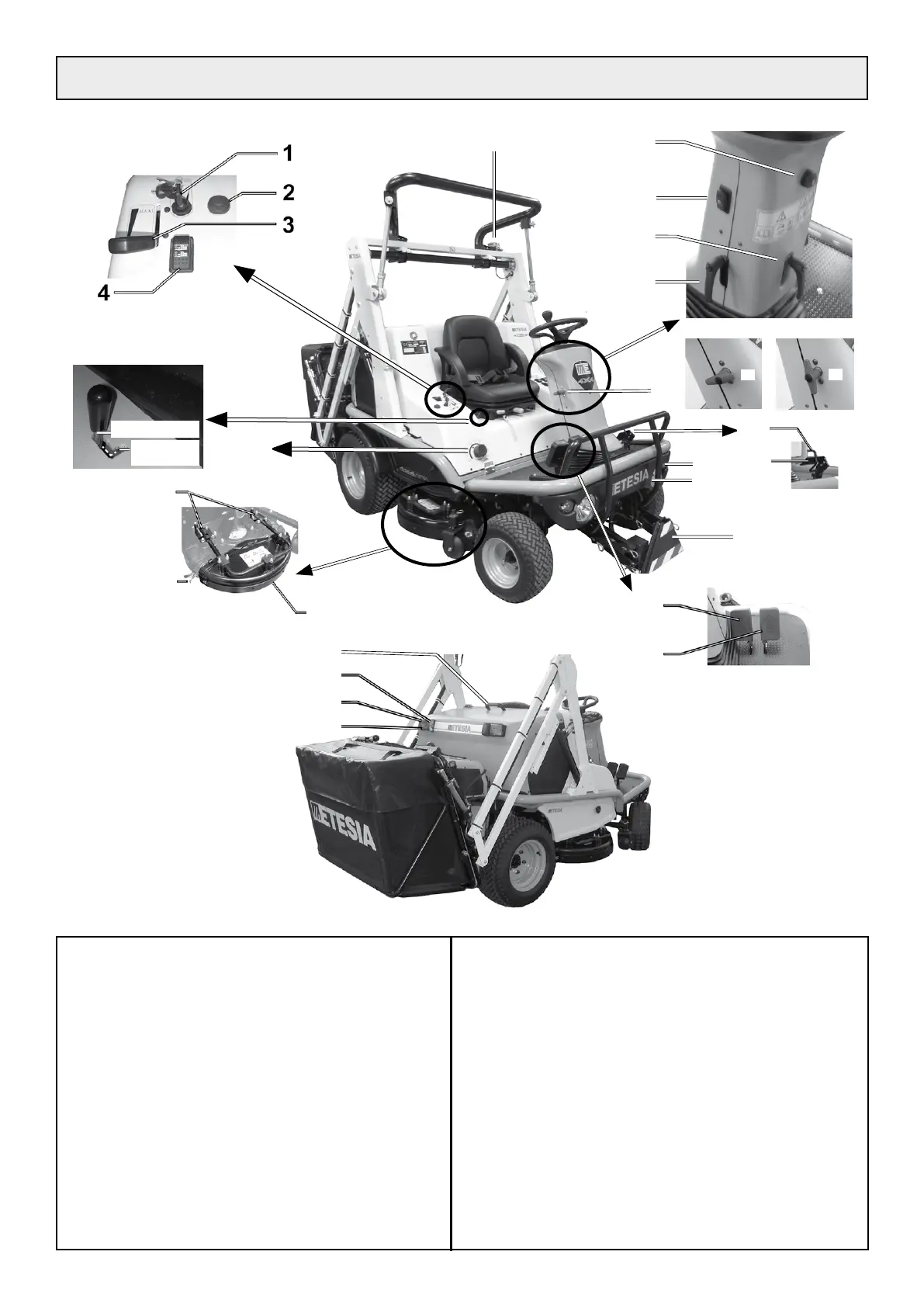

3• DESCRIPTION
1• Ignition key
2• Start switch
3• Engine speed adjusting lever
4• Cutting system up / down switch
5• Cutting height selector button
6• Clamping device for retractable part (except on H124DL)
7• Positioning pin for retractable part (except on H124DL)
8• Retractable part of the housing (except on H124DL)
9• Gripping handle for opening engine cowling
10• Number plate light
11• Rear side lights / stop lights
12• Rear indicators
13• Forward drive pedal
14• Reverse pedal
15• Accessory-holder triangle (except on H124DL)
16• Side lights / headlights
17• Front indicators (except on H124DL)
18• Parking brake pedal
19• Parking brake release
20• Battery switch
21• Tilt adjustment blocking lever for the steering console
22• Height adjustment blocking lever for the steering console
23• Side lights / headlights switch (except on H124DL)
24• Warning lights switch
25• Revolving light (except on H124DL)
26• Engine bonnet locking system
bonnet locked
bonnet
unlocked
1
0
