Etesia H124DN - 3• Description

H124DL
27
26
15
14
19
16
17
18
22
23
24
20
21
25
27
26
28
1
2
3
4
5
6
7 8
13
12
11
10
9
29
10

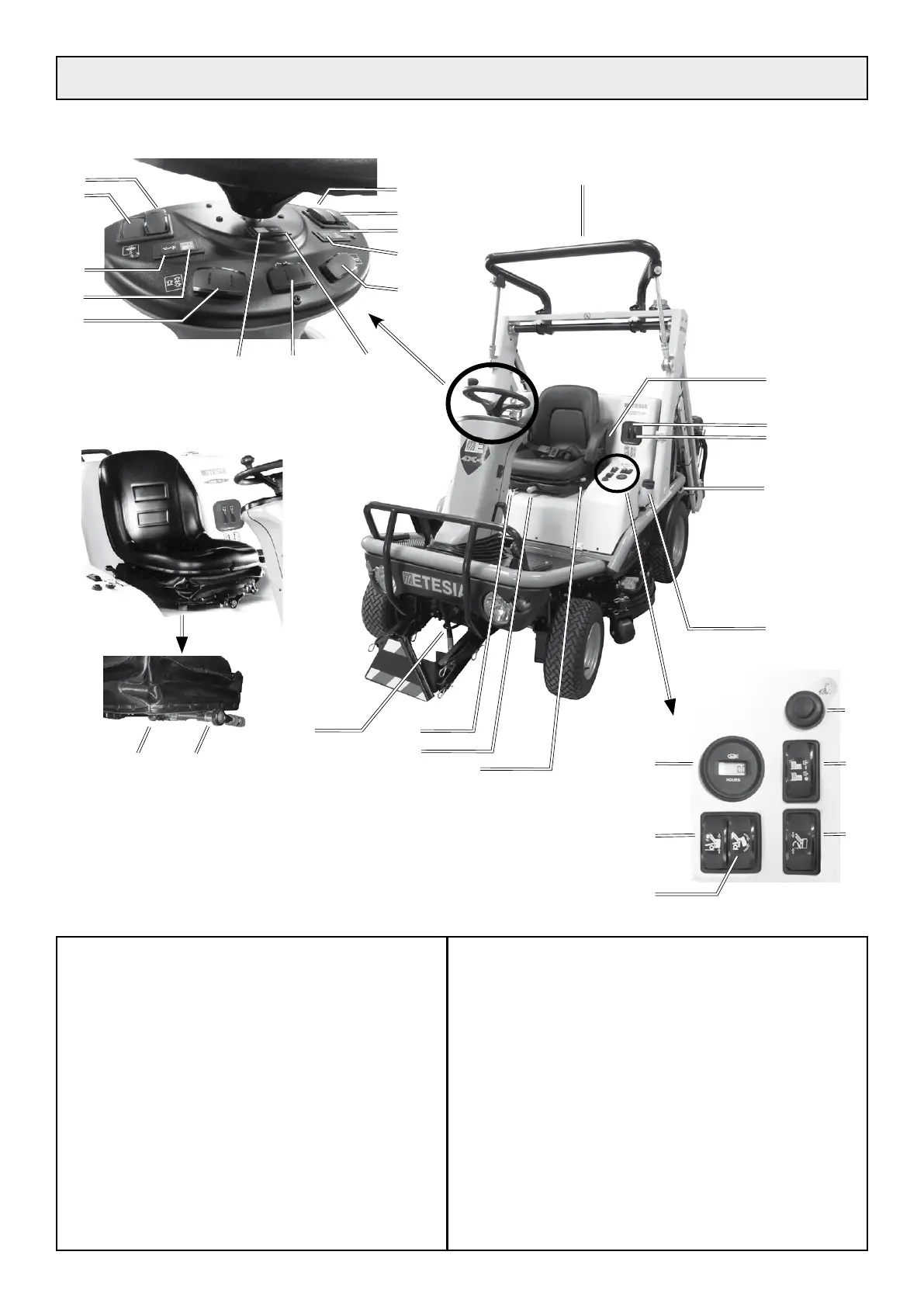

3• DESCRIPTION
1• Power take-off control switch (except on H124DL)
2• Differential lock control switch (on H124DN)
3• Hydraulic oil temperature and filter clogging indicator
4• Low diesel level indicator
5• Lights / revolving light control switch
6• Engine pre-heating indicator
7• Indicator lights control switch
8• Engine oil pressure indicator
9• Audible warning device control switch
10• Battery charge indicator
11• Engine temperature indicator (coolant)
12• Accessory raising control switch (except on H124DL)
13• Control switch for accessory tilt cylinder (according to accessory)
(except on H124DL)
14• Roll Over Protection Structure (ROPS)
15• Seat back angle adjustment (except on H124DL)
16• High position emptying lever (on H124DL)
17• Grassbox emptying lever (on H124DL)
18• Side supports
19• Diesel tank filler plug
20• Cutting system control switch
21• Valve actuation switch (except on H124DL)
22• Hour meter
23• High position emptying actuation switch (except on H124DL)
24• Basket opening and closing switch (except on H124DL)
25• Seat pan adjustment lever (except on H124DL)
26• Seat suspension adjustment lever
27• Longitudinal seat adjustment lever
28• Towing hook
29• Control switch « mow in reverse »
