Optional Fiber Module Installation

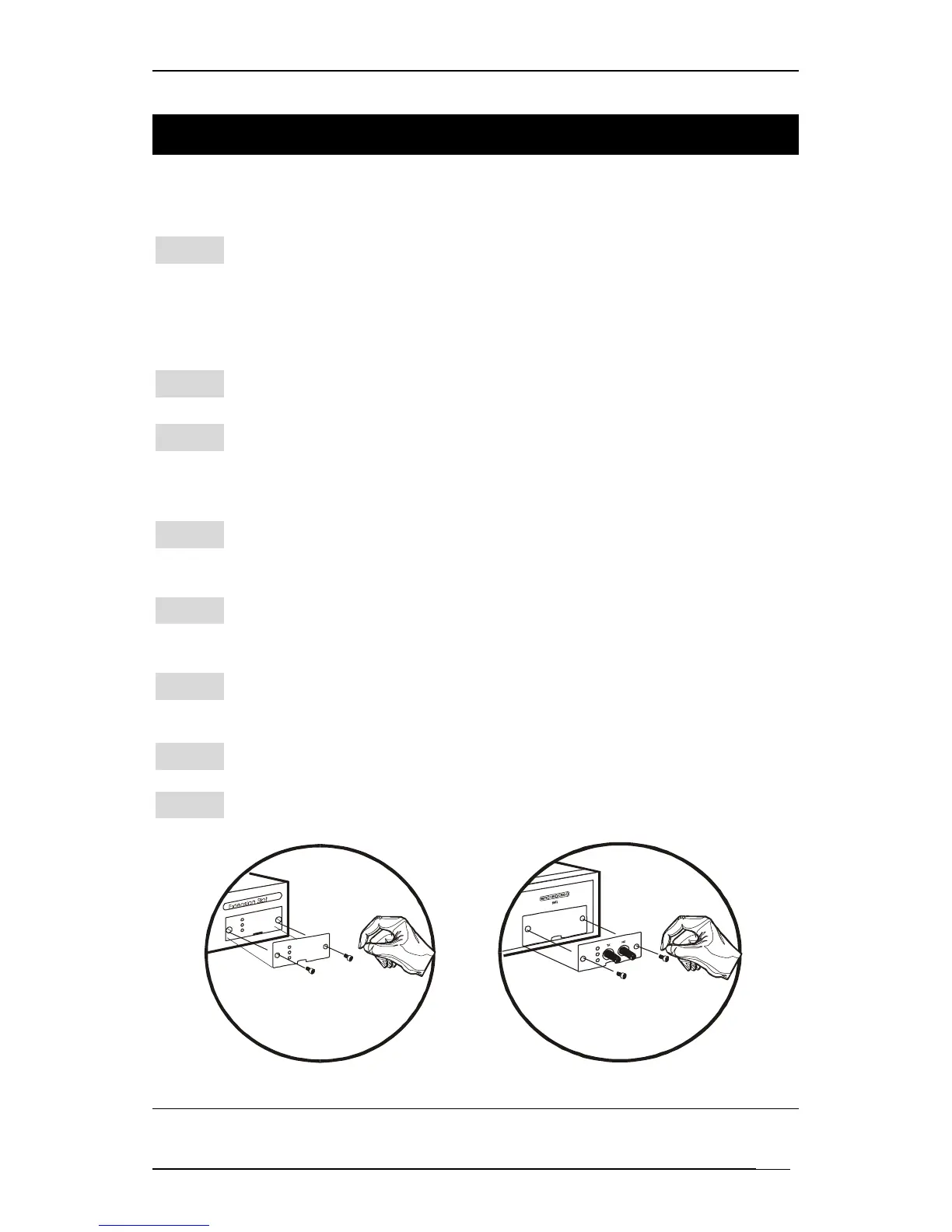

Consult the following illustrations before installation.
Step 1: Make sure the power is switched off. The module is not hot-
swappable.
L It may cause electric shock or any possible damage to the switch if the
power is not switched off.
Step 2: Remove the module from the static-free container.
Step 3: Unscrew the cover plate of the expansion slot.
(The slot for single-port module is located at the right side of the
switch.)
Step 4: Remove the plate.
(Keep it for future use if you decide to remove this module later.)
Step 5: Carefully slide the module into the slot, following the internal
plastic guide rails.
Step 6: Once it is fully slid in, snap in the module to make a proper
connection.
Step 7: Fasten the module screws.
Step 8: Finally, turn on the power.
Figure 3: Removal of cover plate Fiber module being installed
