2.2 Explanation of parts

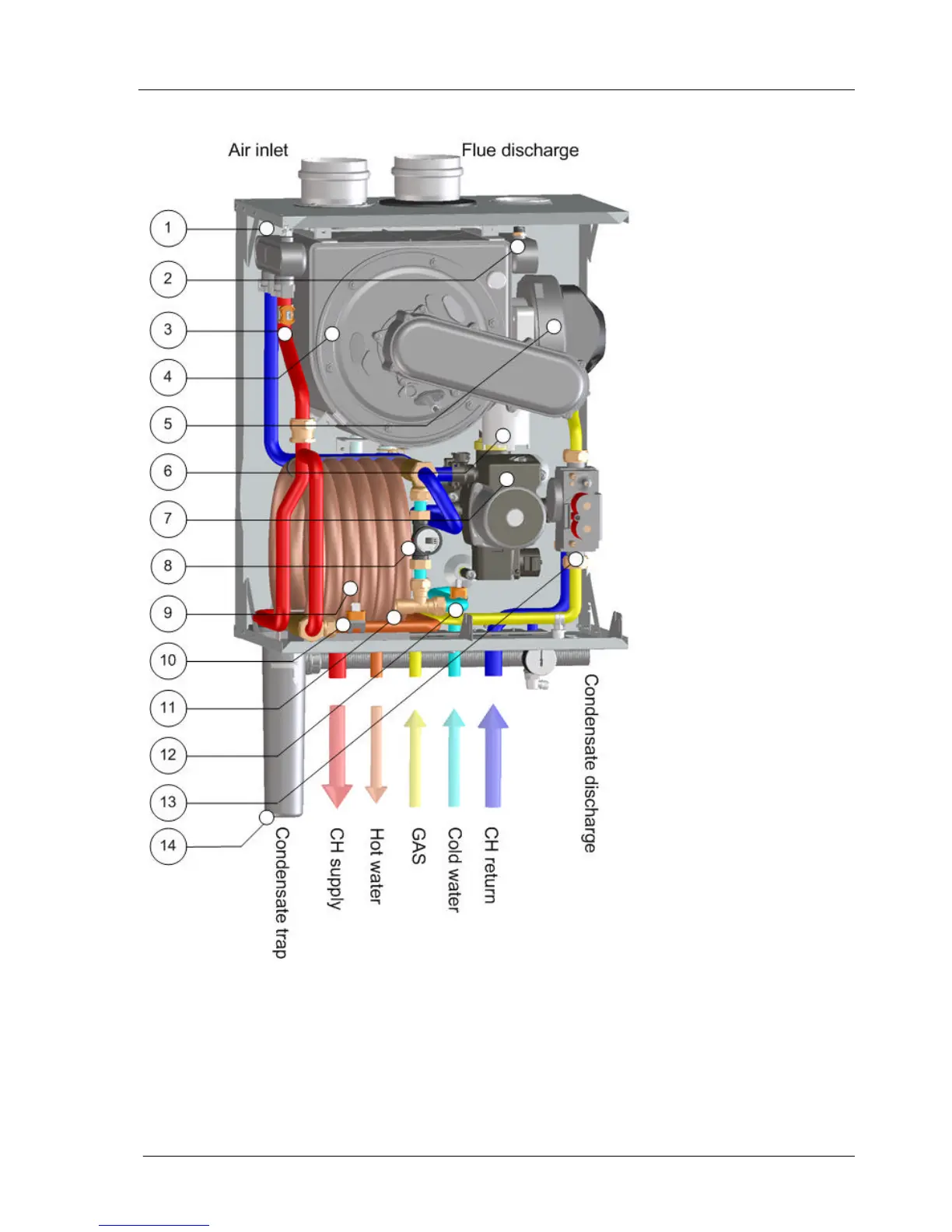

1 = heat exchanger bleed valve
2 = high limit thermostat
3 = supply sensor
4 = heat exchanger
5 = fan
6 = air vessel
7 = circulation pump
8 = flow sensor
9 = DHW coil
10 = DHW sensor
11 = DHW adjusting cock
12 = Mains cold water sensor
13 = gas control valve
14 = Condensate trap
